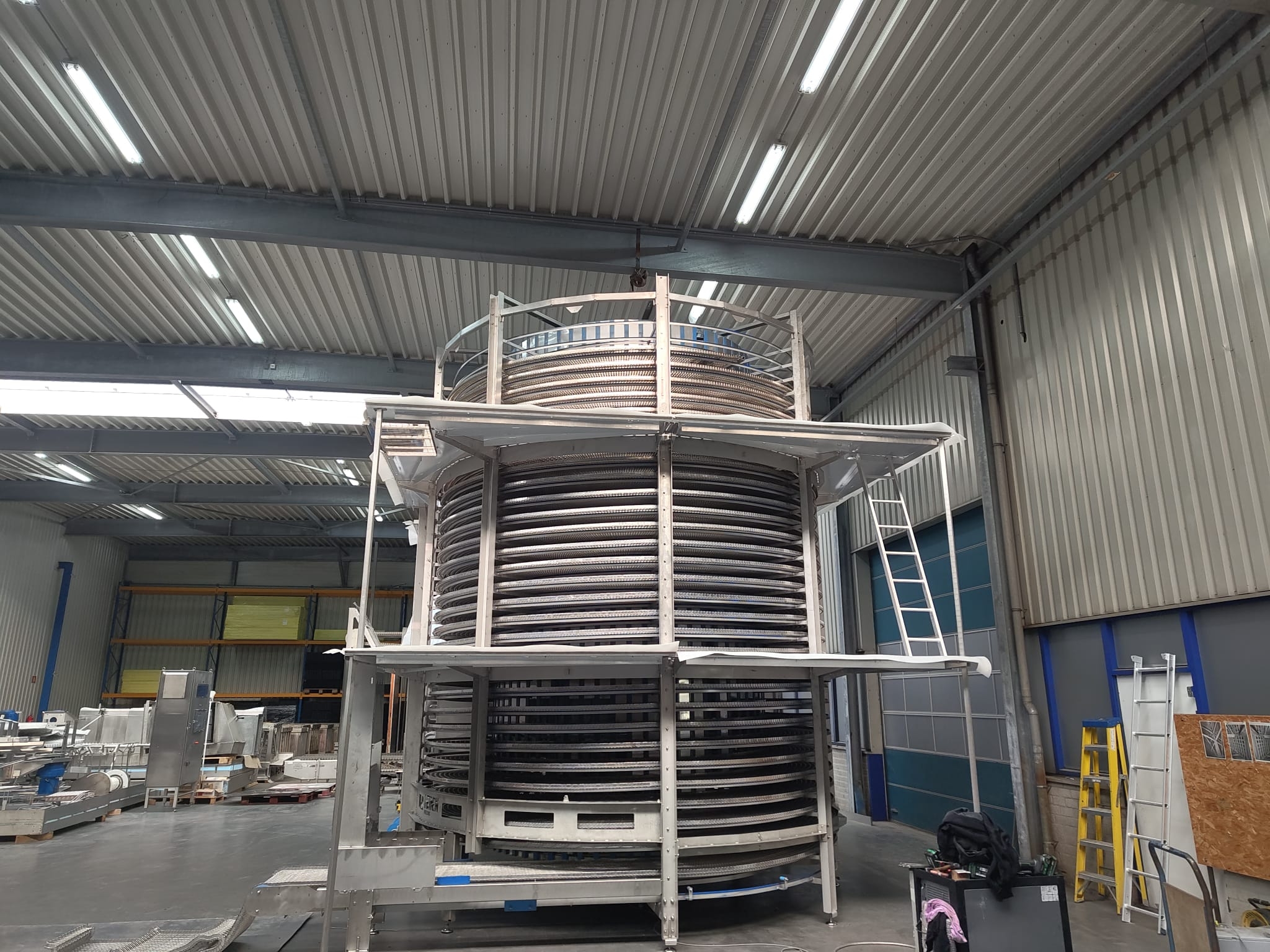

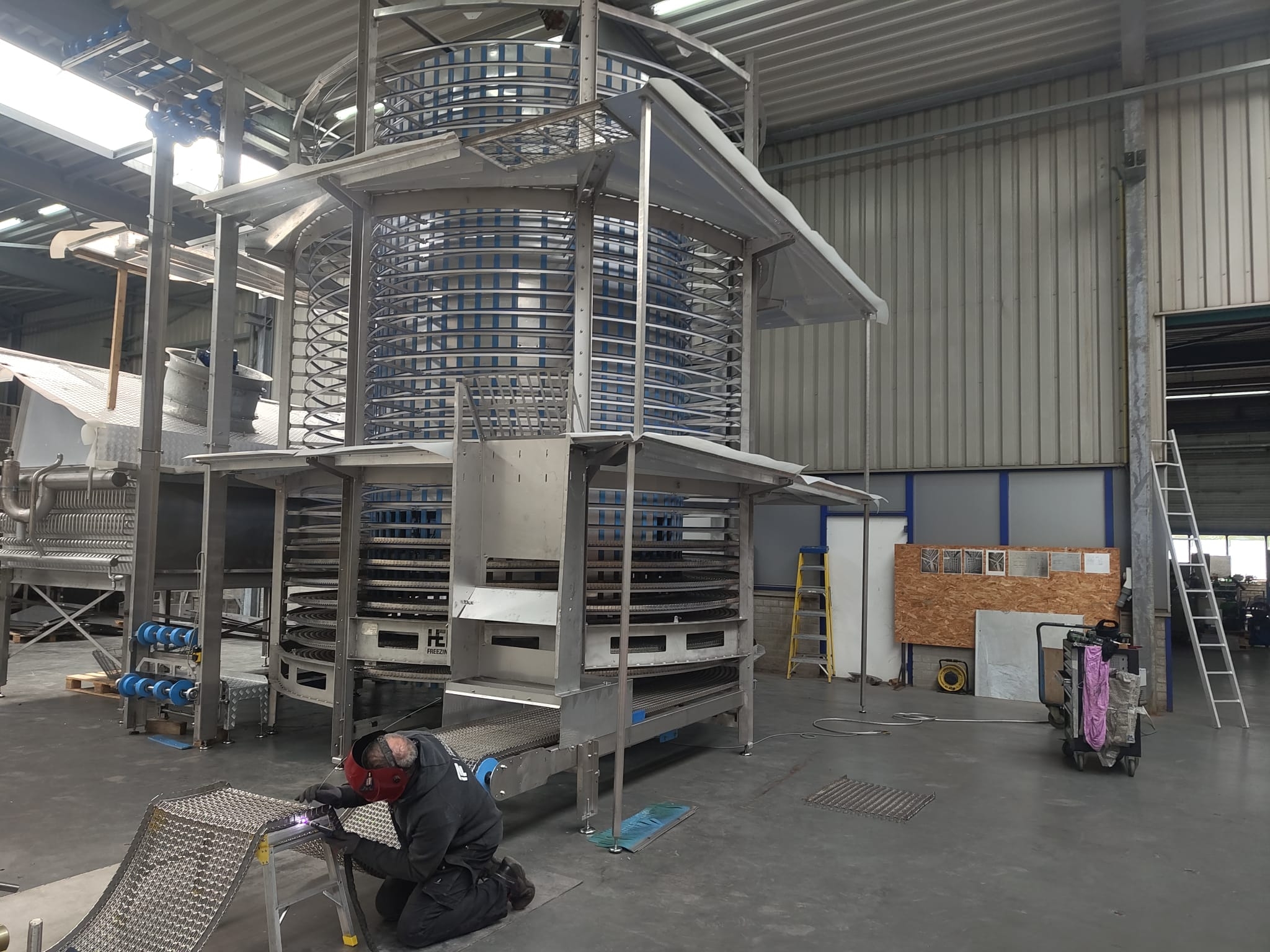

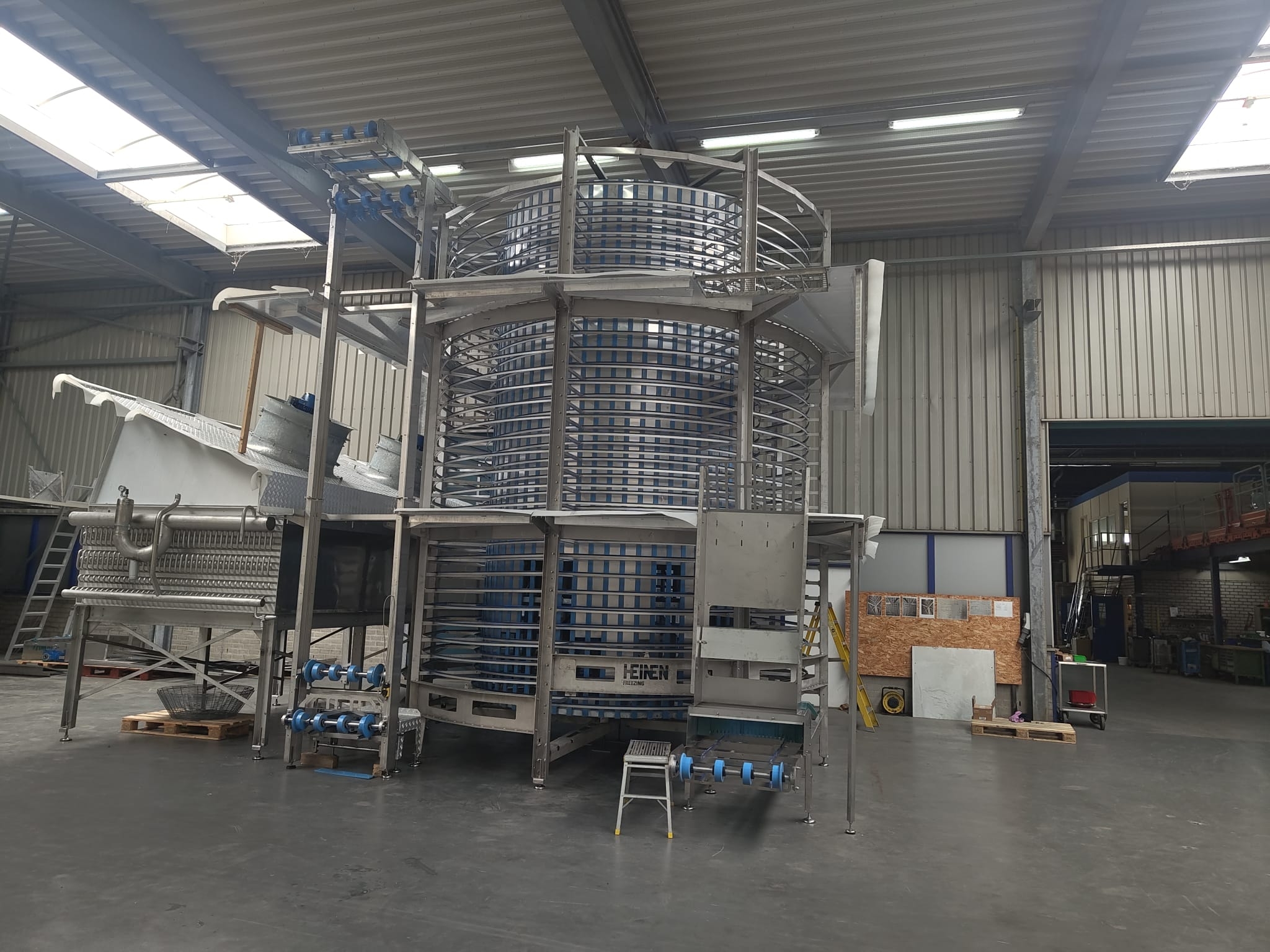

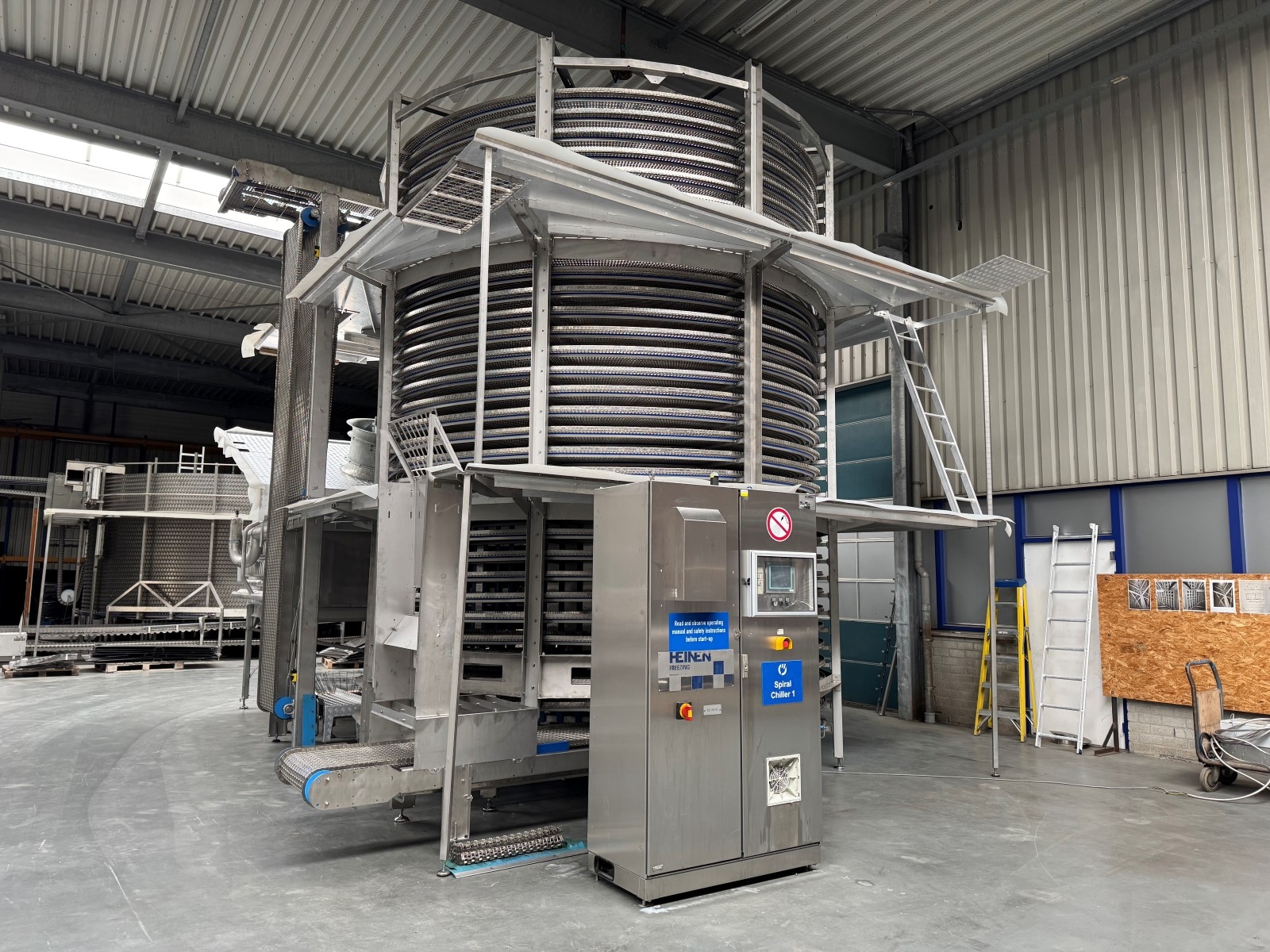

Heinen arctic A6/32
HEINEN ARCTIC A6/32
| Brand | Heinen Freezing |
| Type | Heinen artic Spiral A6/32 |
| Model | Arctic SC 6.6-11-32S |

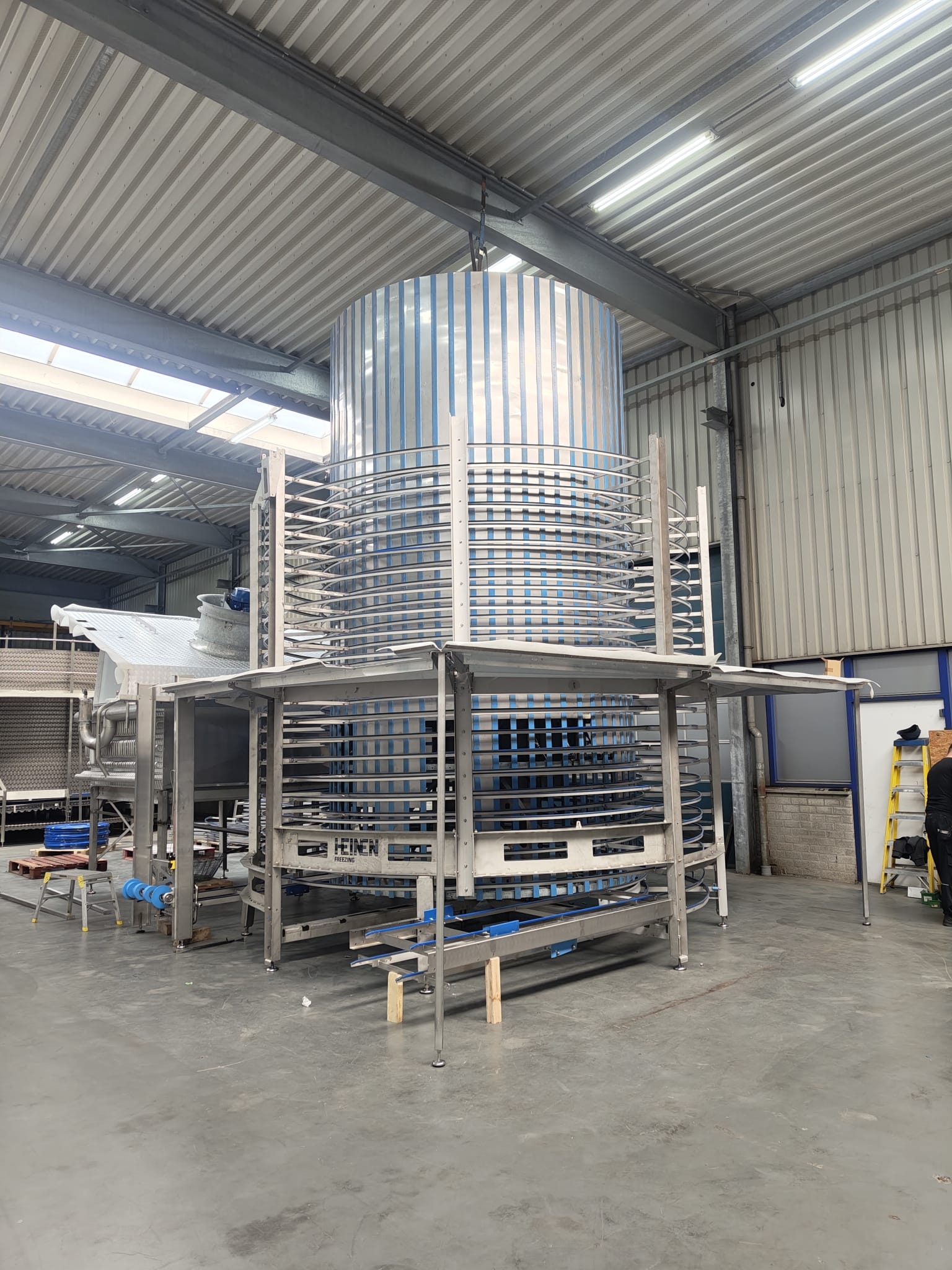

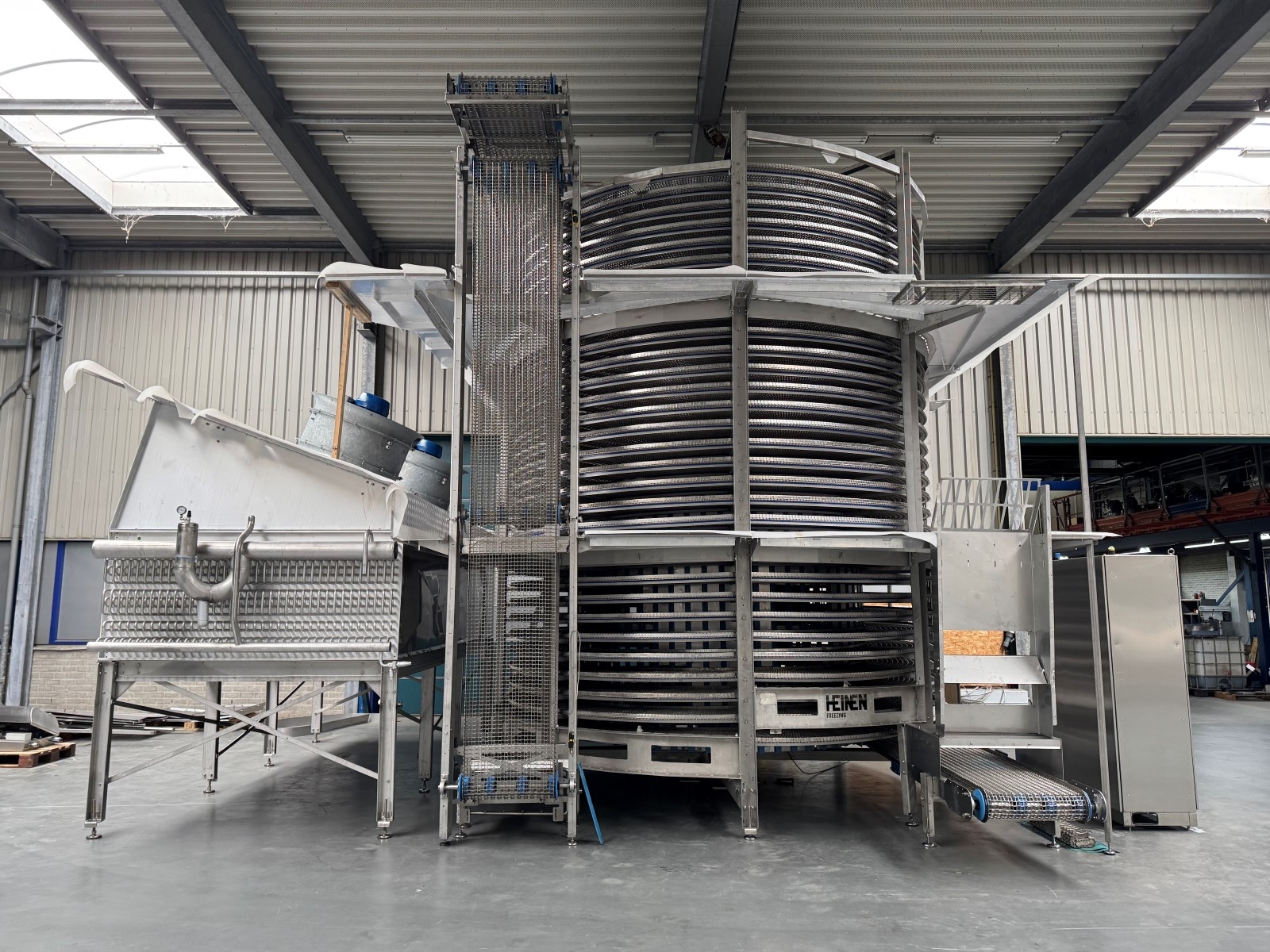

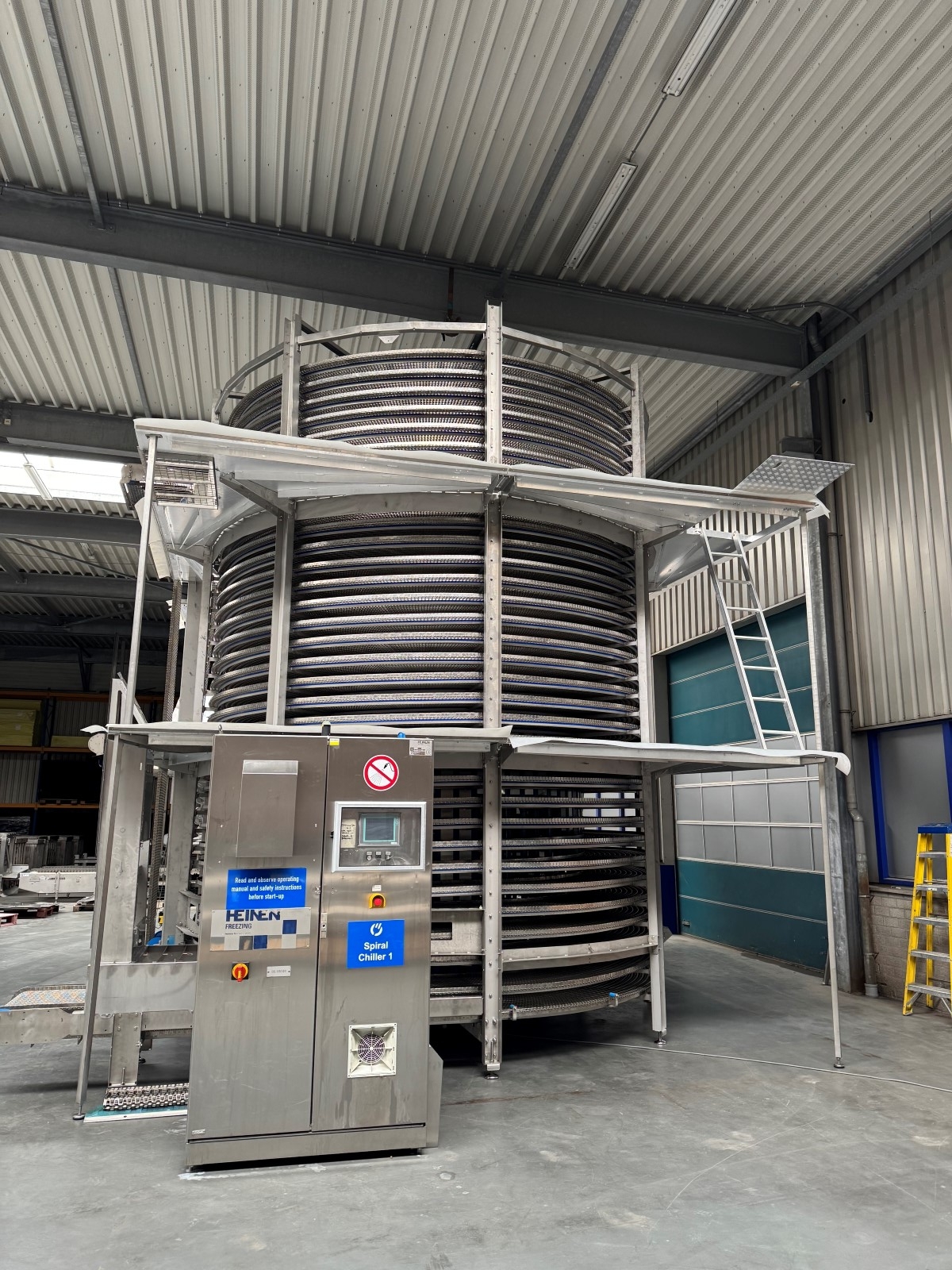

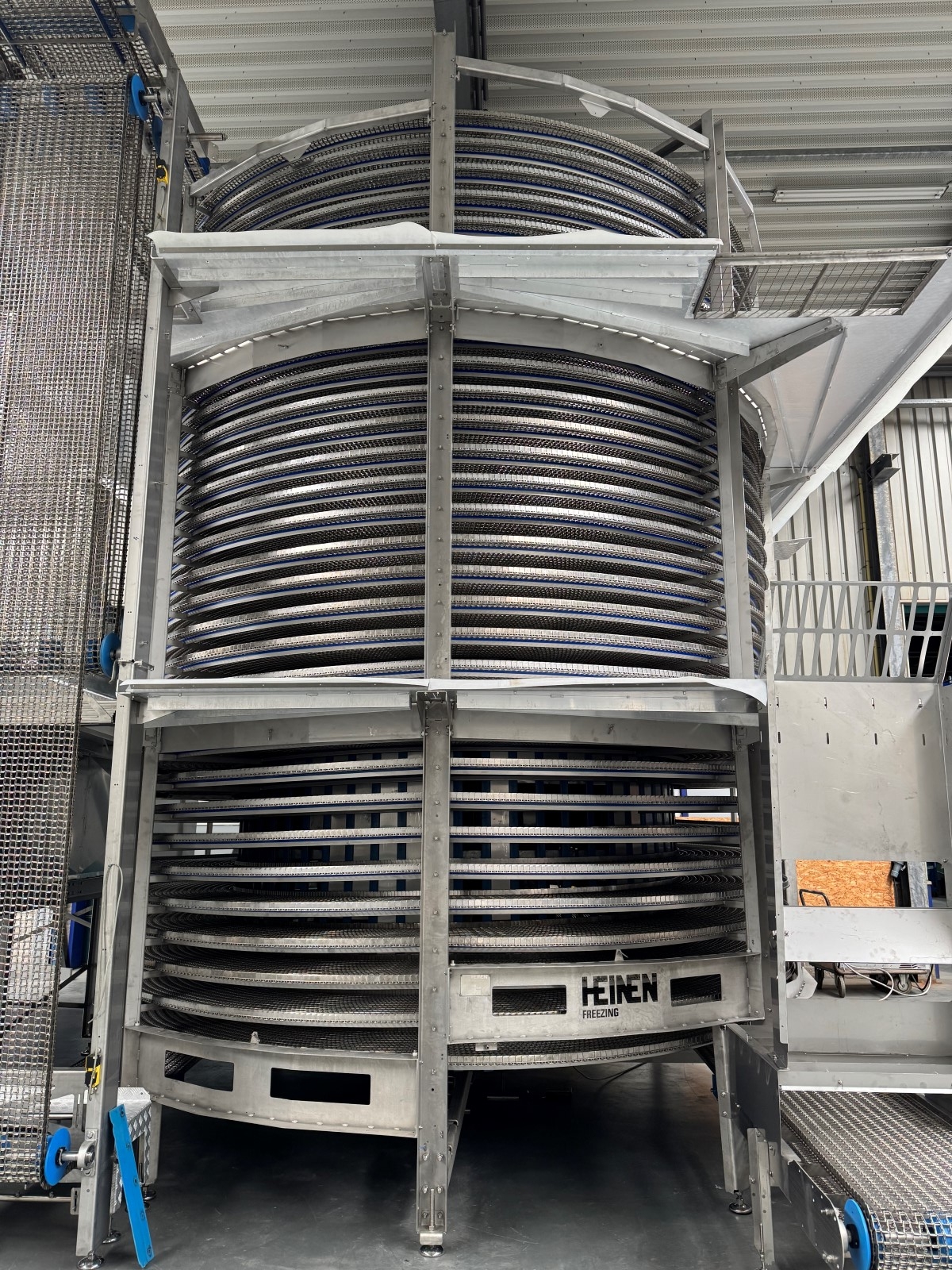

| Variety | Spiral Freezer / Chiller |

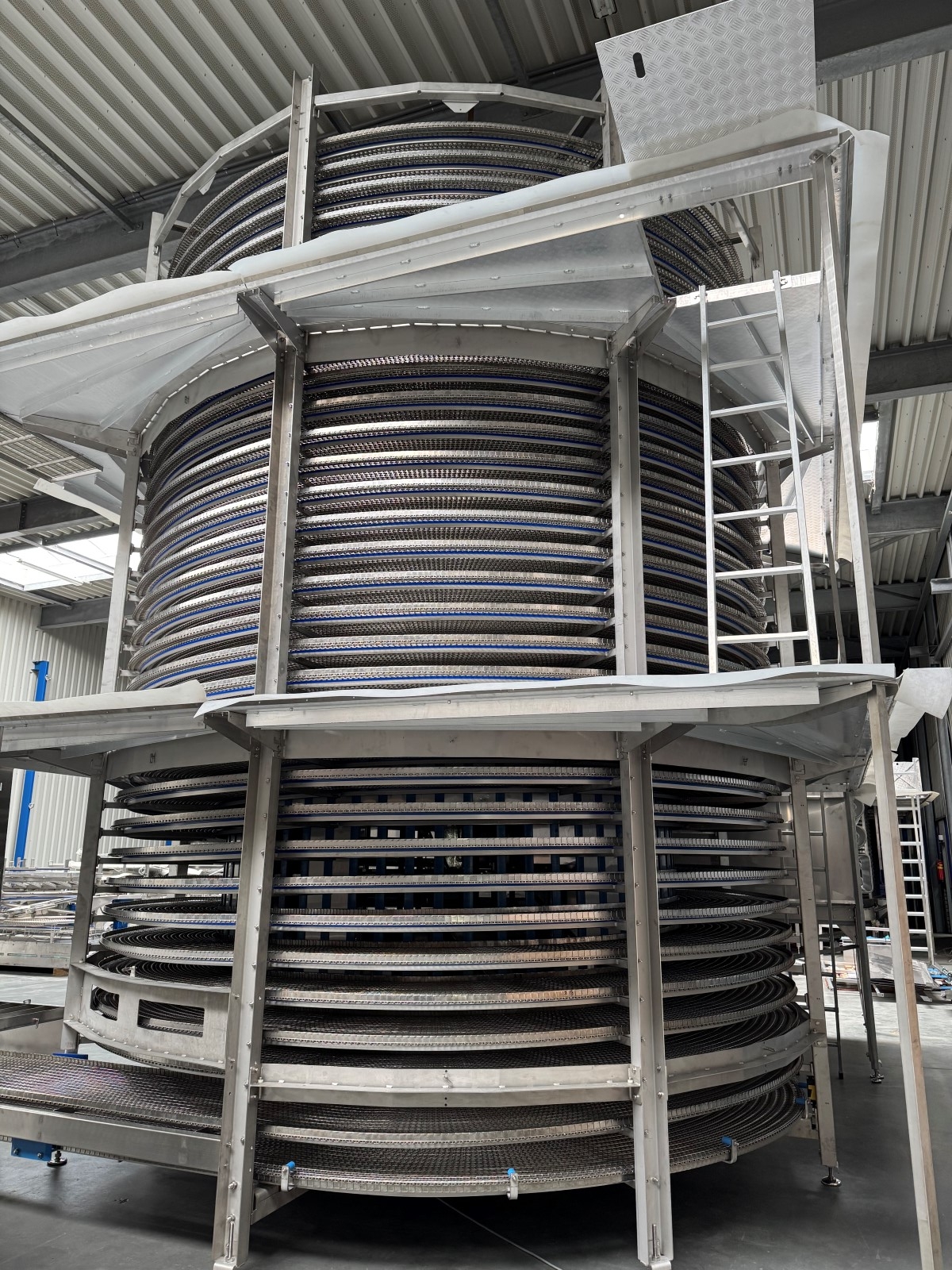

| Tiers | 31,5 |
| Product gap | approx 97mm |

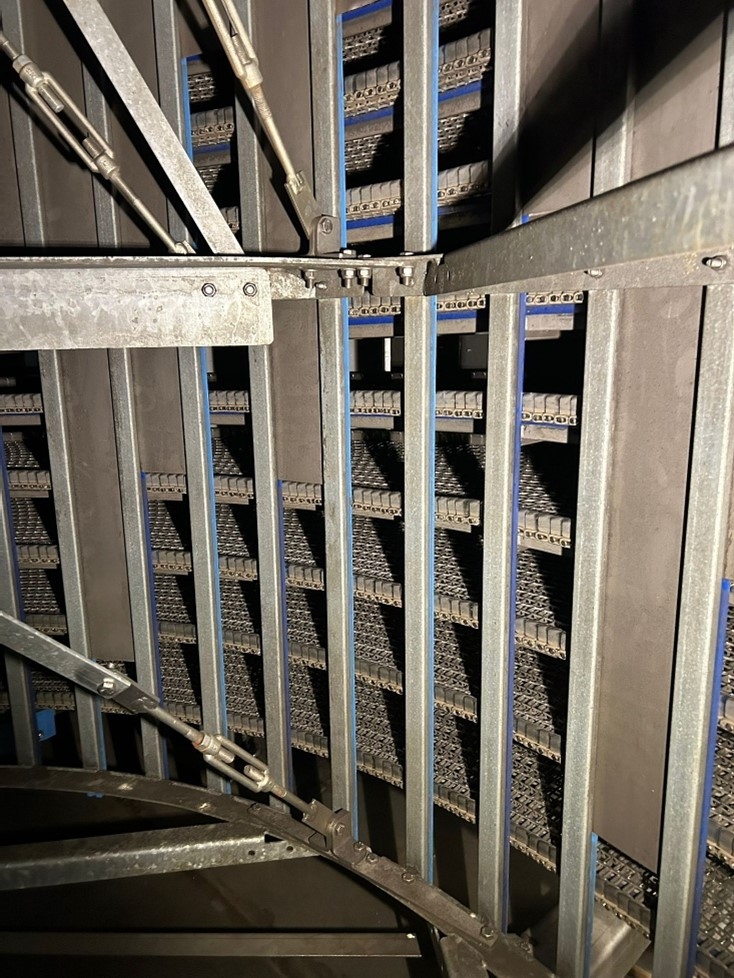

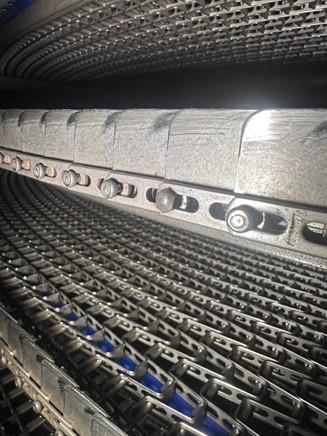

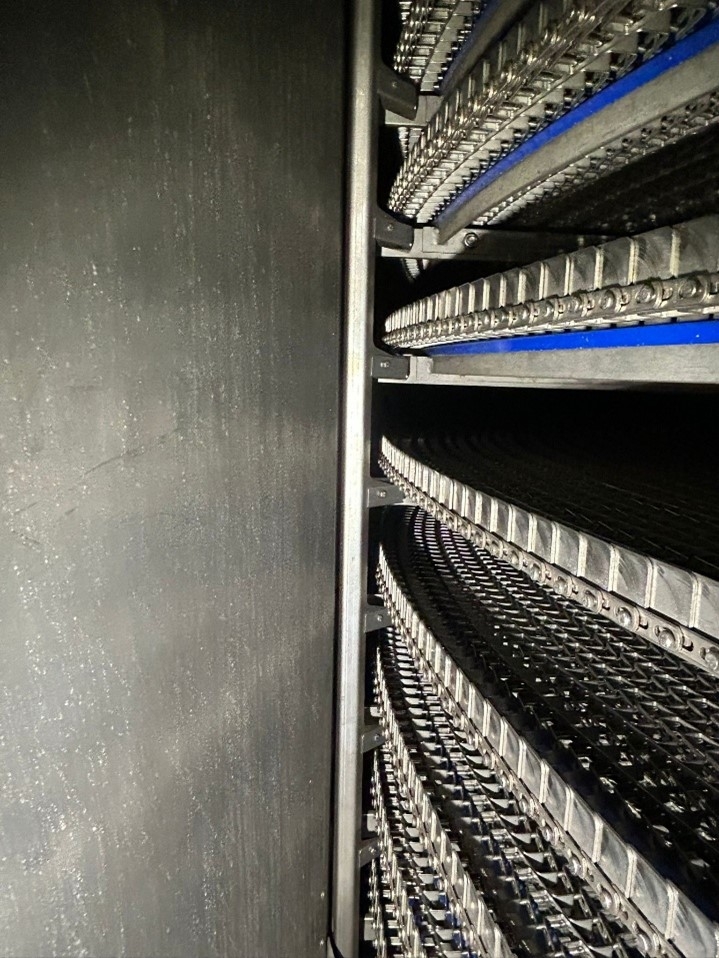

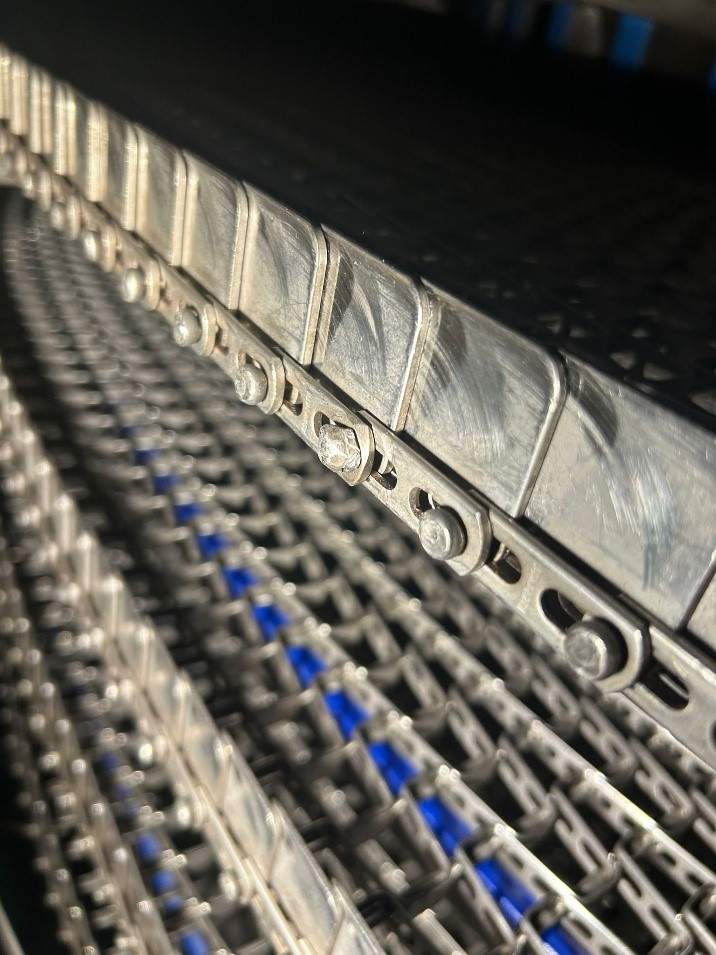

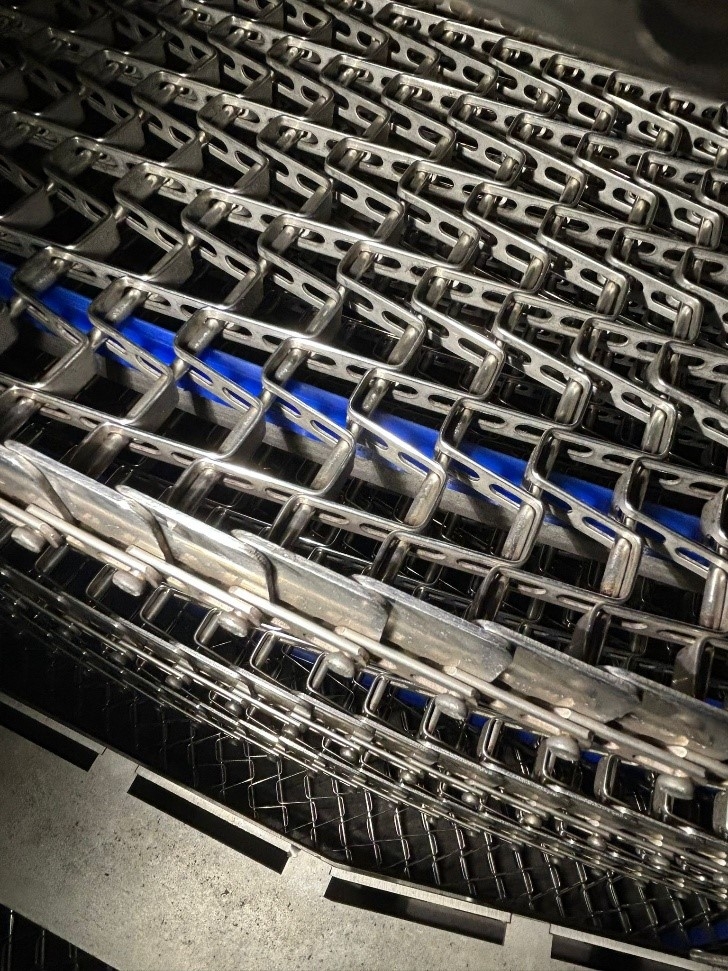

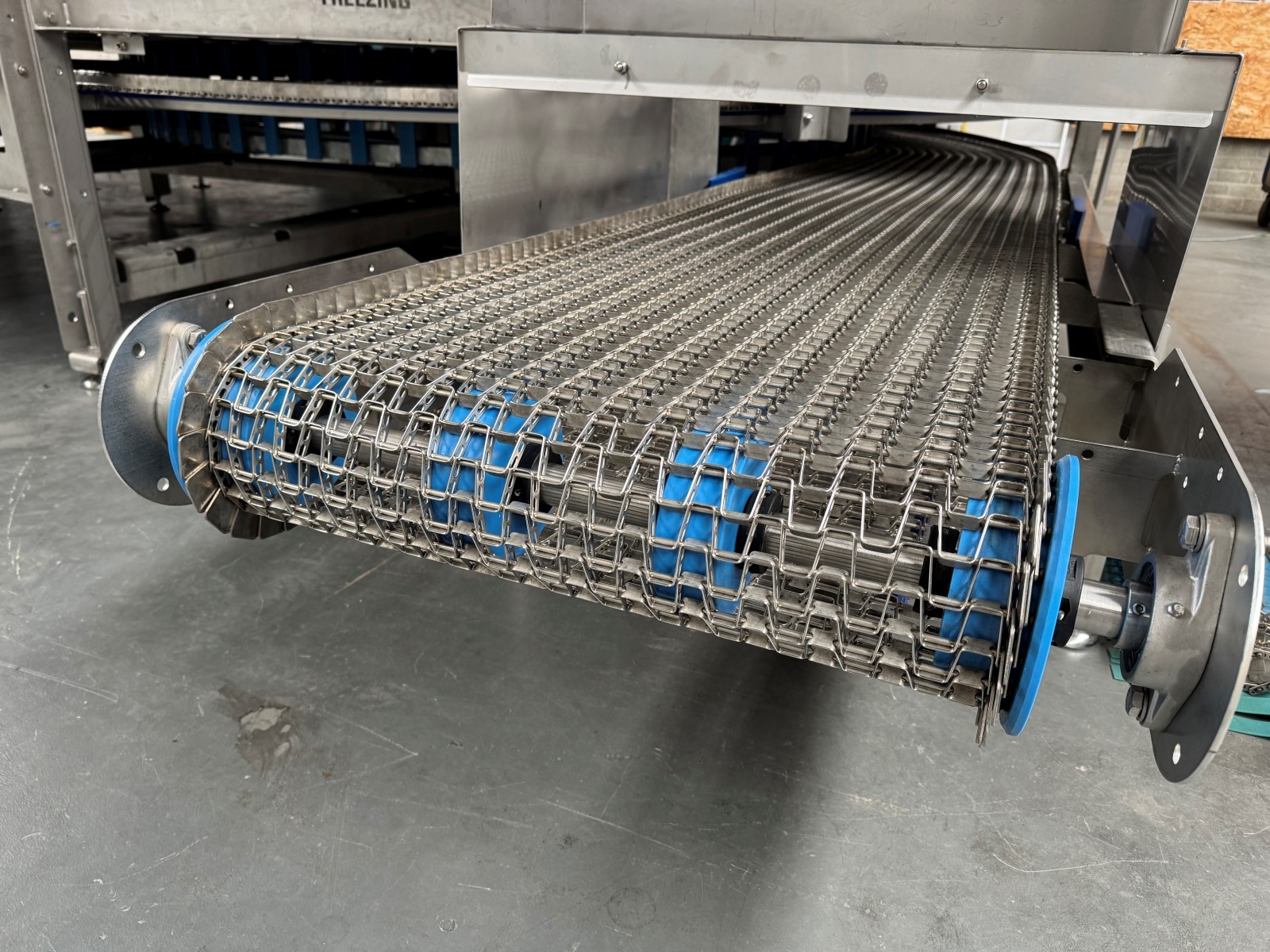

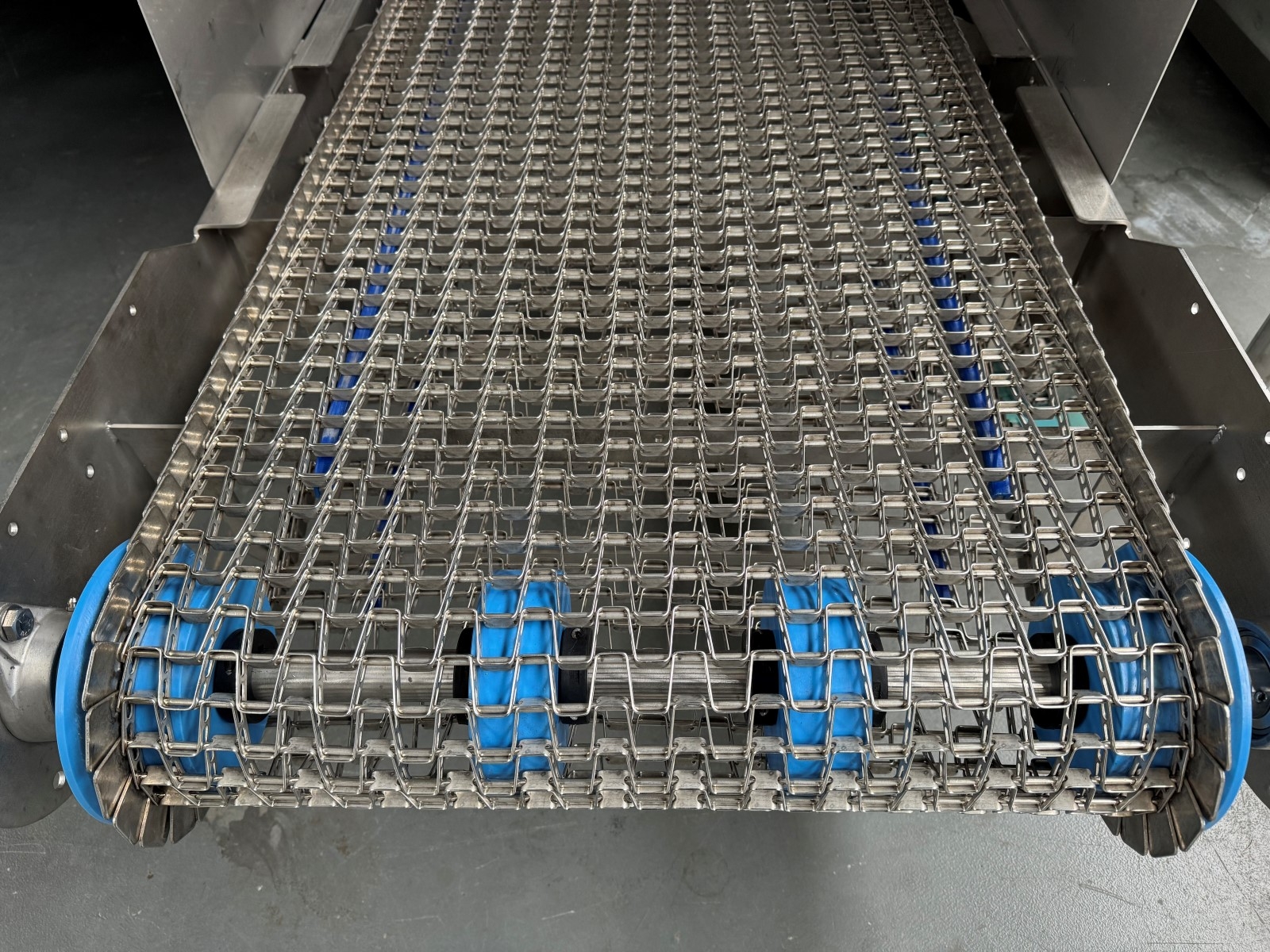

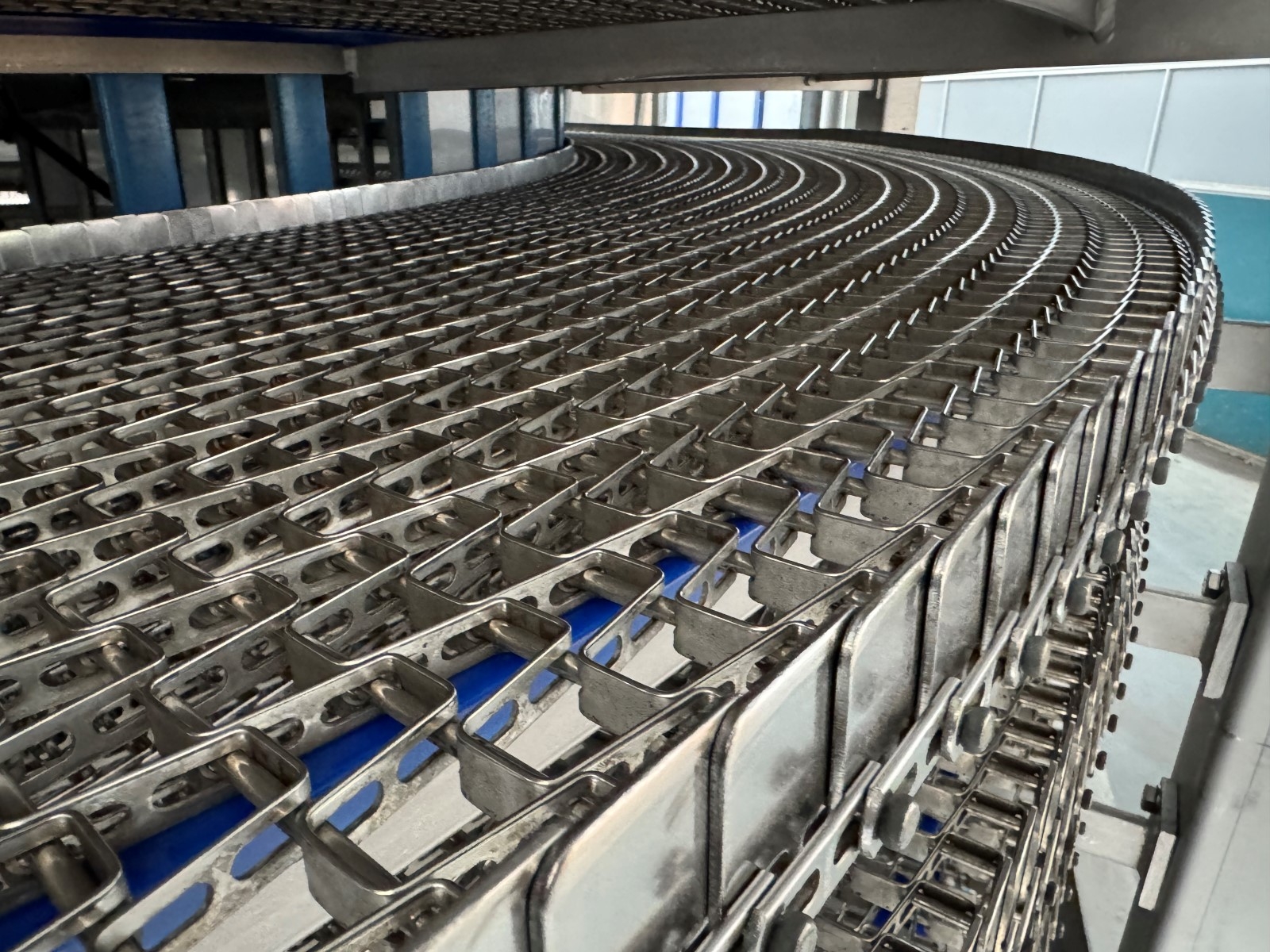

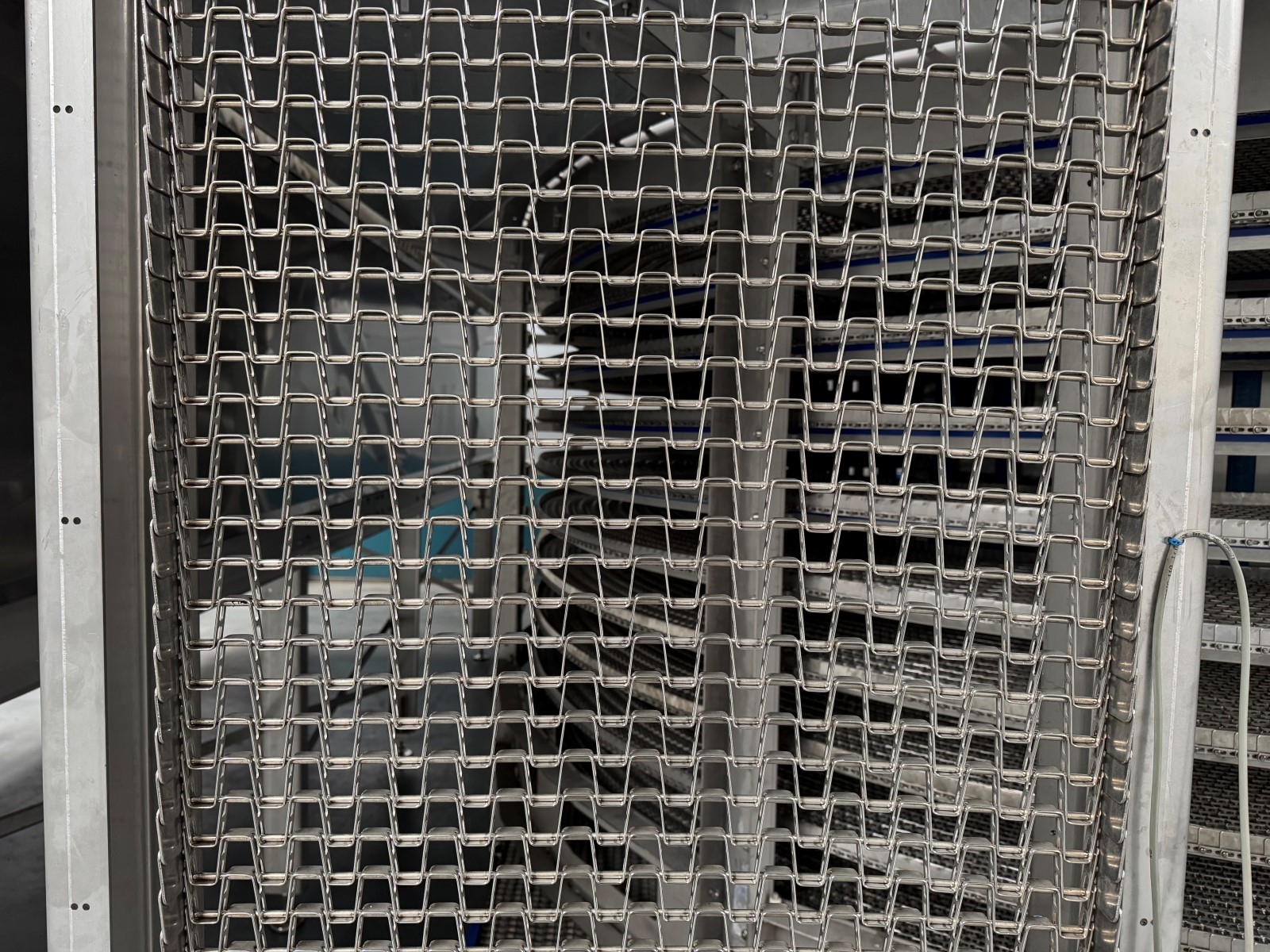

| Mesh wire thickness | 1" belt pitch with 25m side plates |
| Belt width | 660mm / 600mm usable |
| Belt length | 418M |

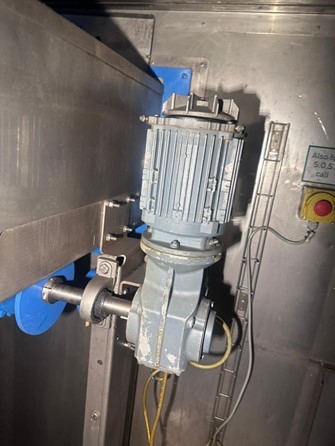

| Belt speed | Variable |
| Infeed height | 800mm |
| Outfeed height | 5800mm |
| Refrigerant | Pumped Ammonia |
| Cooling power | +/- 300kW |

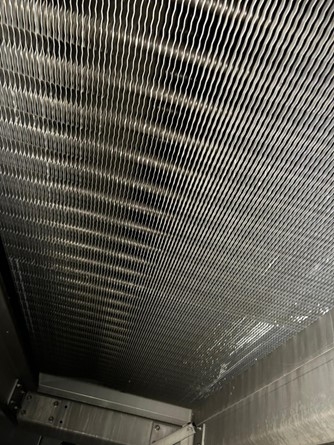

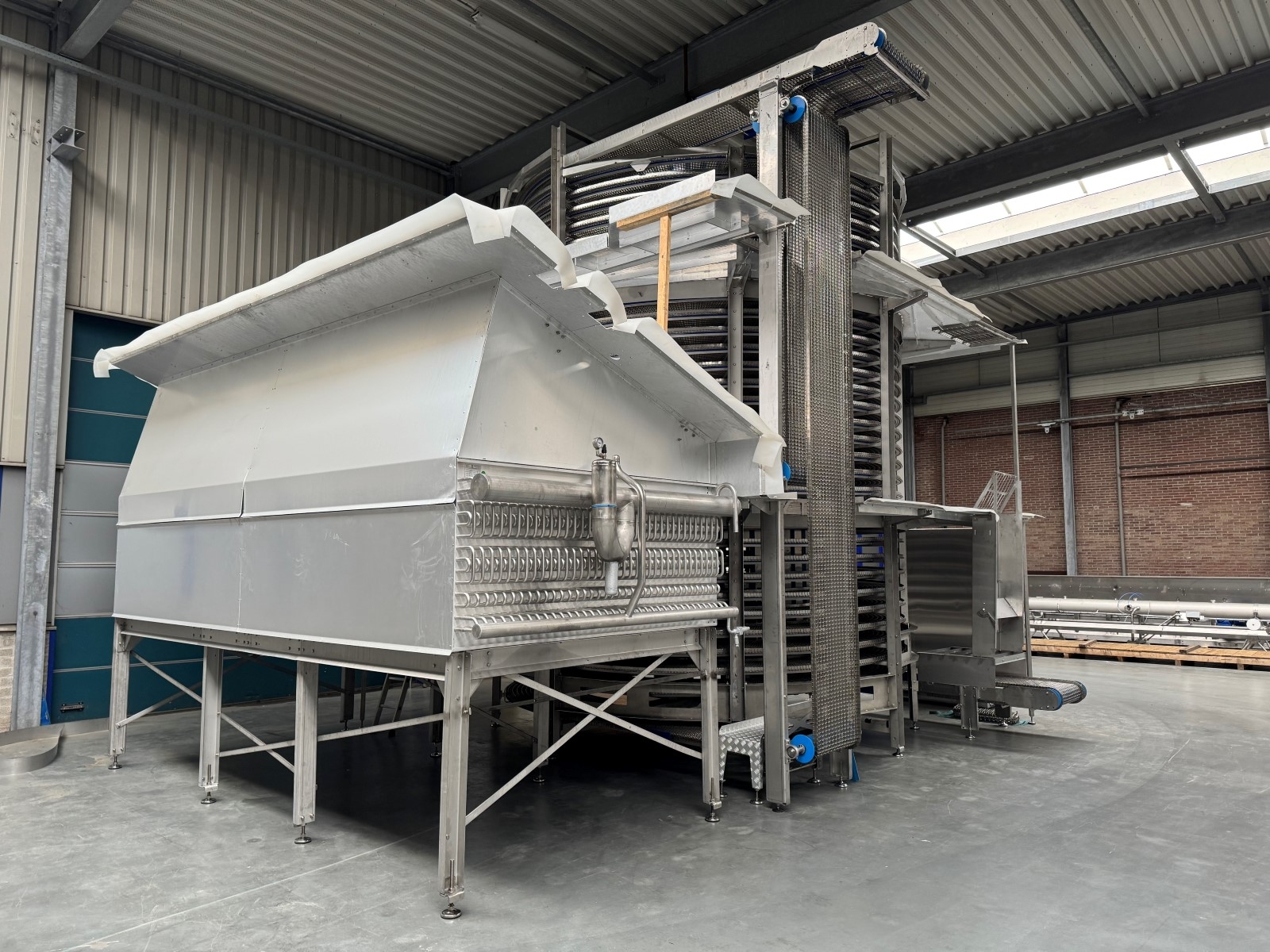

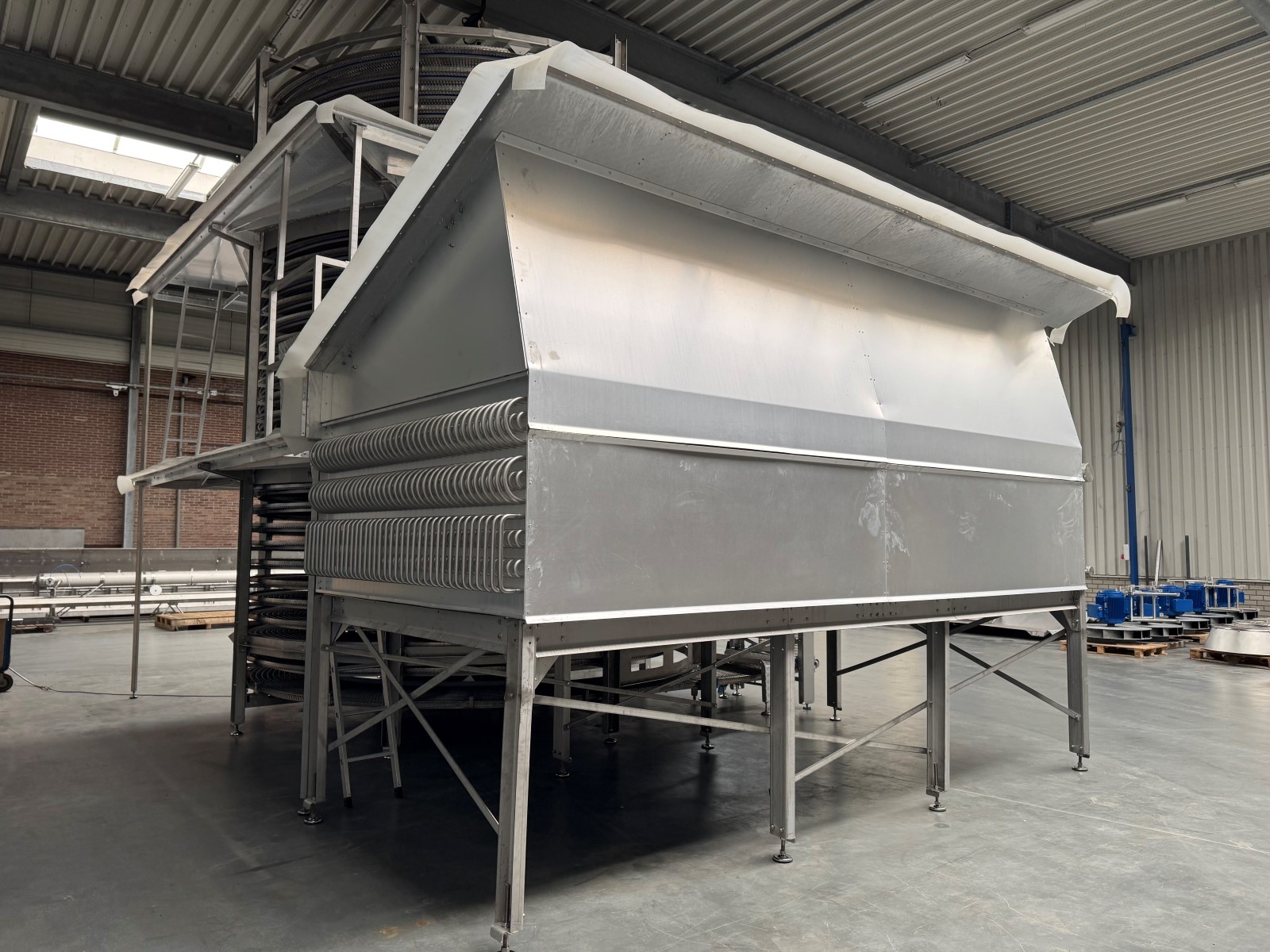

| Evaporator | Pumped Ammonia |

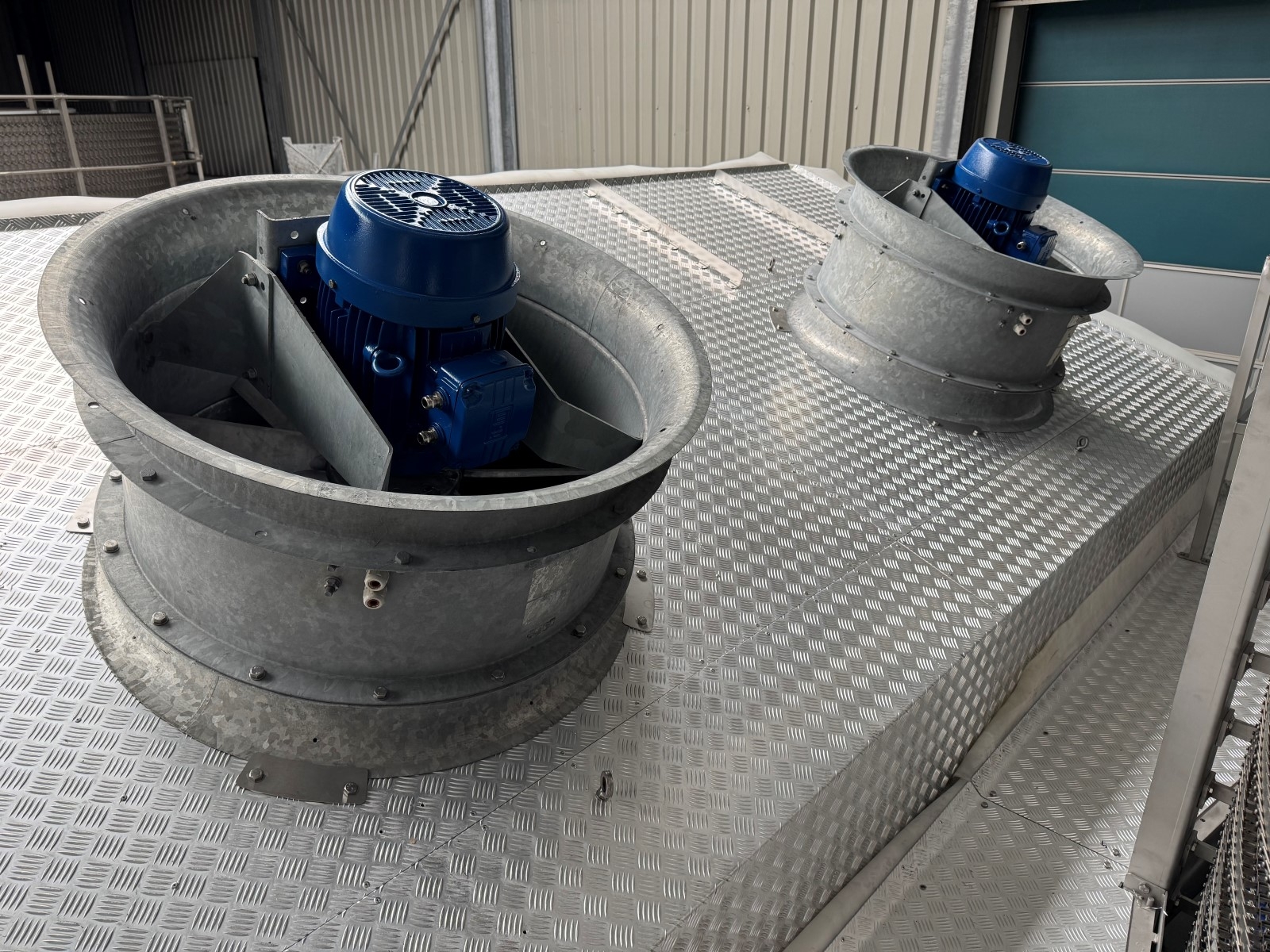

| Number of fans | 2 |
| Fin Space in mm | 28/14/7mm |
| Defrosting | Shift defrost HOt gas / Hot water |
| Dimensions | 8000mm x 5600mm x 6400mm |
