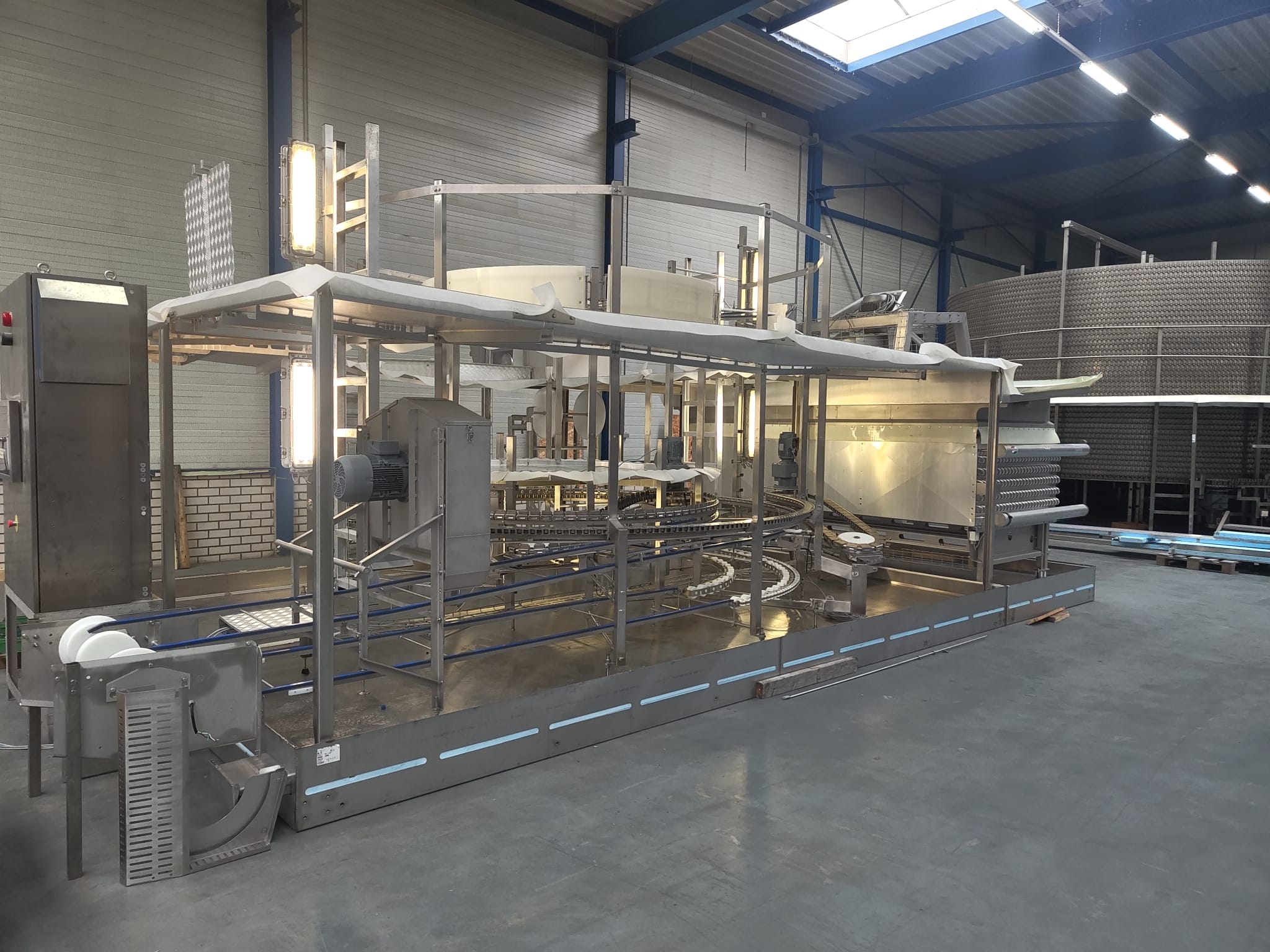

JBT Frigoscandia GyroCompact GC60
Spiral Freezer
Frigoscandia GYRoCOMPACT GC60

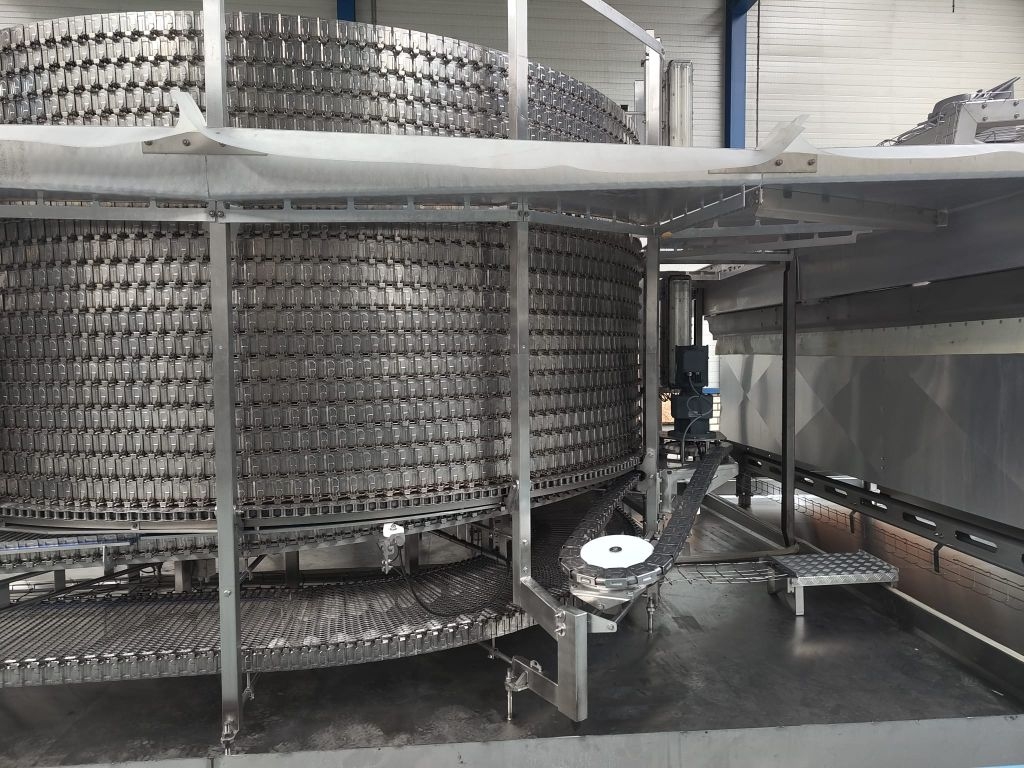

Current model GC60 from 2016, previously running prepared meals in trays, stainless steel pumped ammonia evaporator coils, 65mm product clearance, 224m belt in the stack
| Brand | JBT Frigoscandia |
| Type | GyroCompact GC60-08-20-12 NE CCR |
| Model | North-East, Counter Clockwise Rotation |
| Year of Construction | 2014 |
| Tiers | 20 effective tiers |
| Product gap | 65mm |
| Link height | 80mm |
| Length per tier | 11,2m |
| Belt width | Gross: 670mm / Nett: 615mm |
| Belt length | 224m in the stack |
| Belt speed | 2-30 m/min |
| Refrigerant | Pumped Ammonia |
| Cooling power | +/- 200kW |

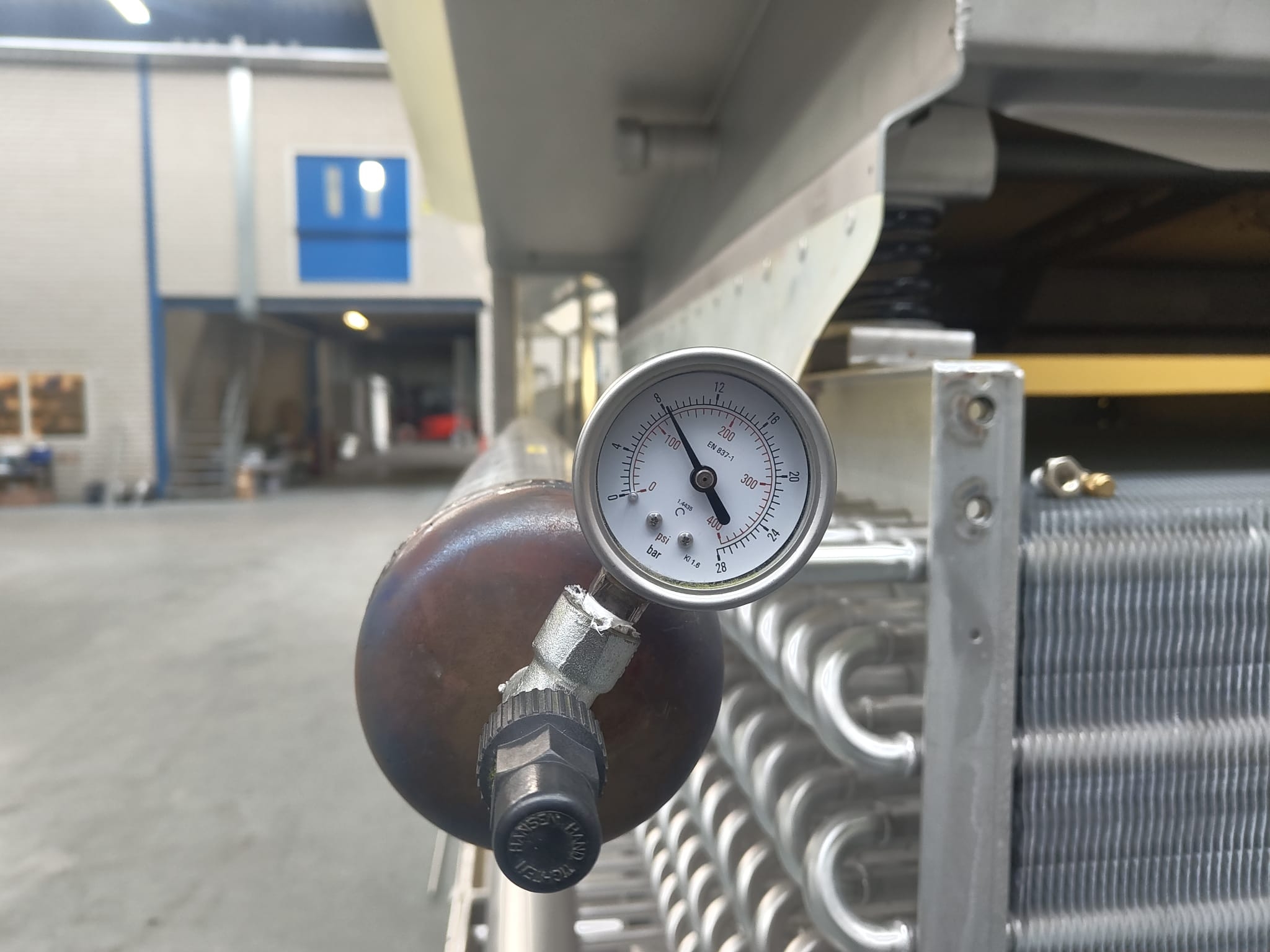

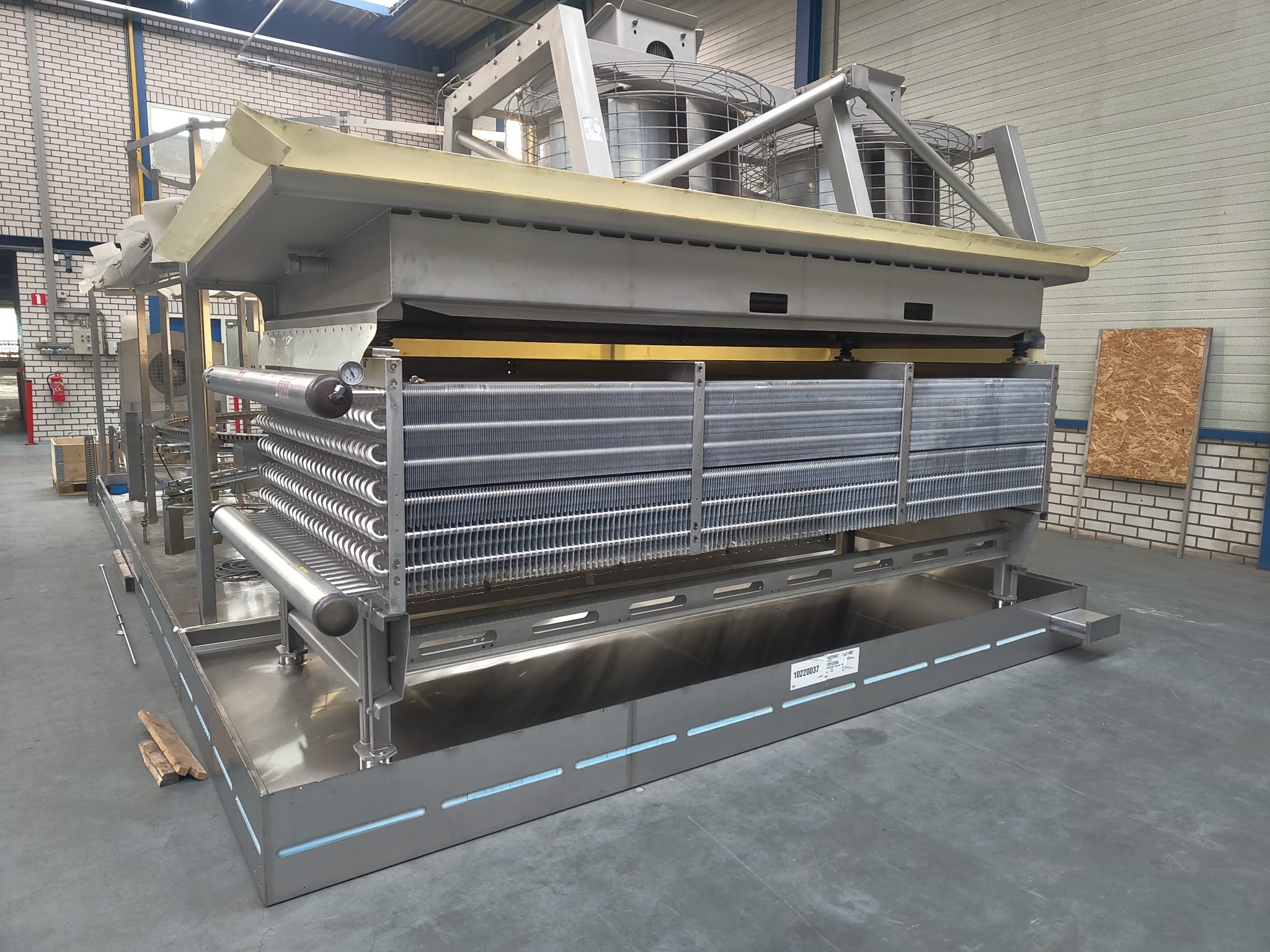

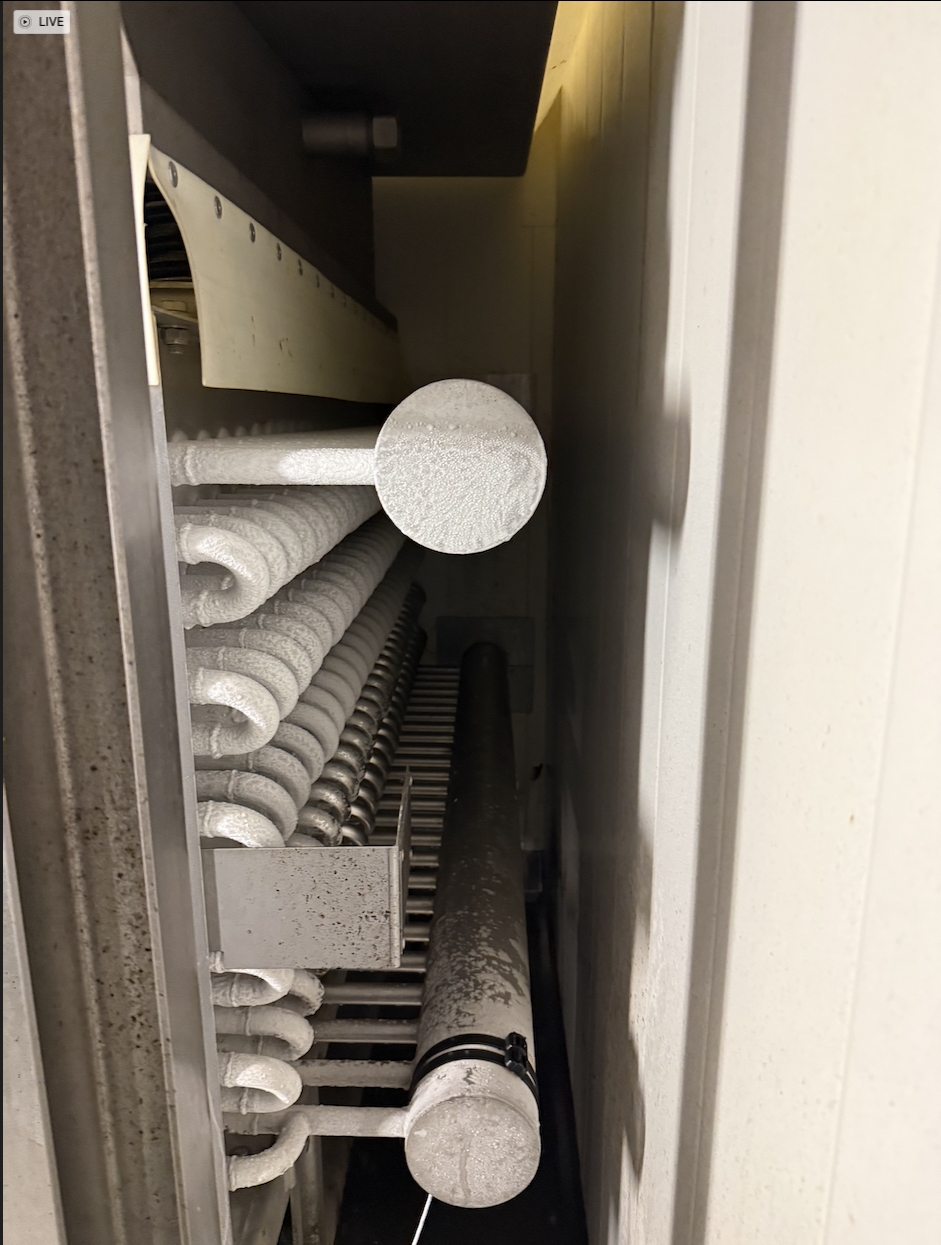

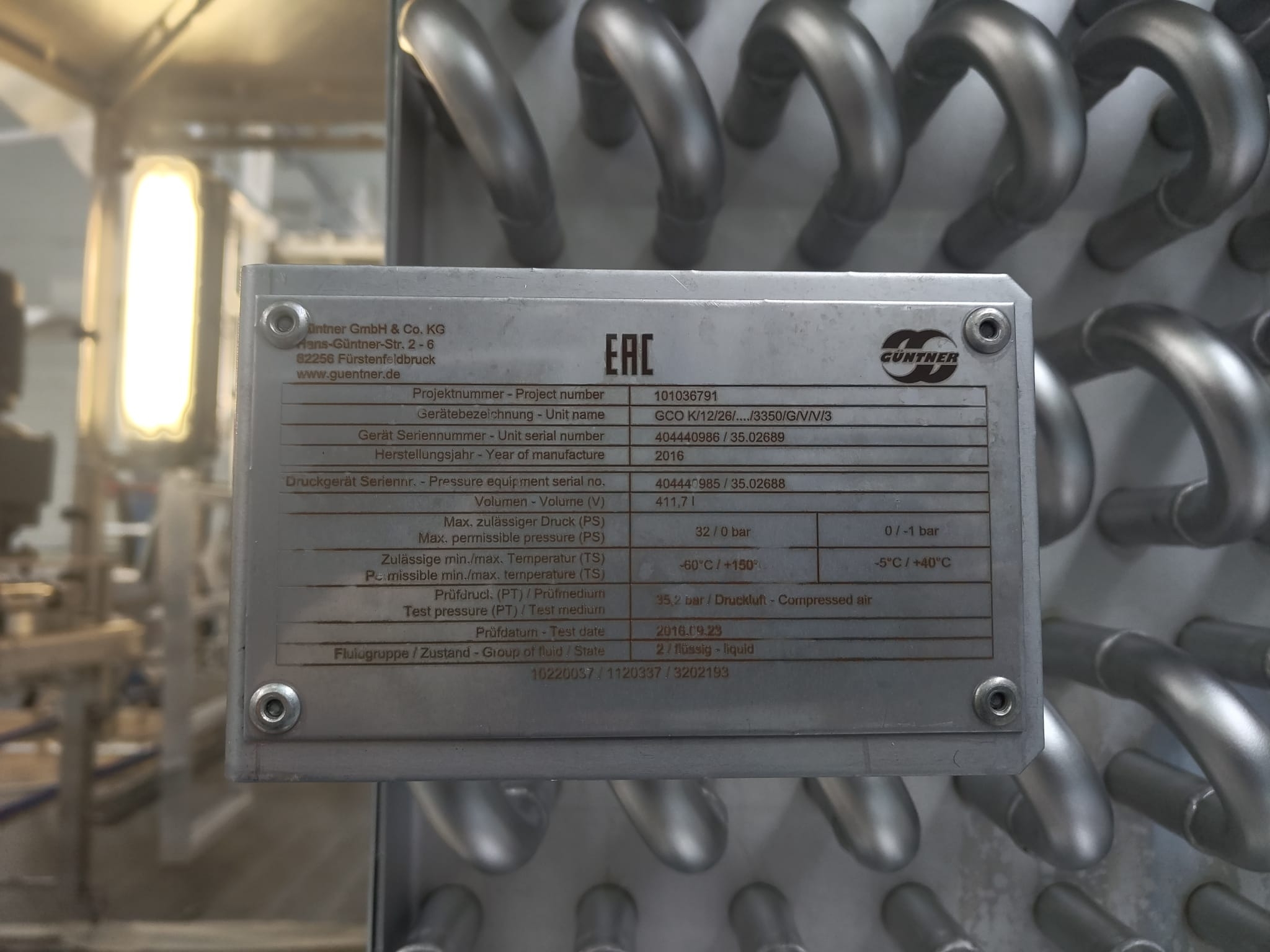

| Evaporator | Stainless steel pumped Ammonia |
| Number of fans | 2 |
| Defrosting | Hot gas / hot water |
