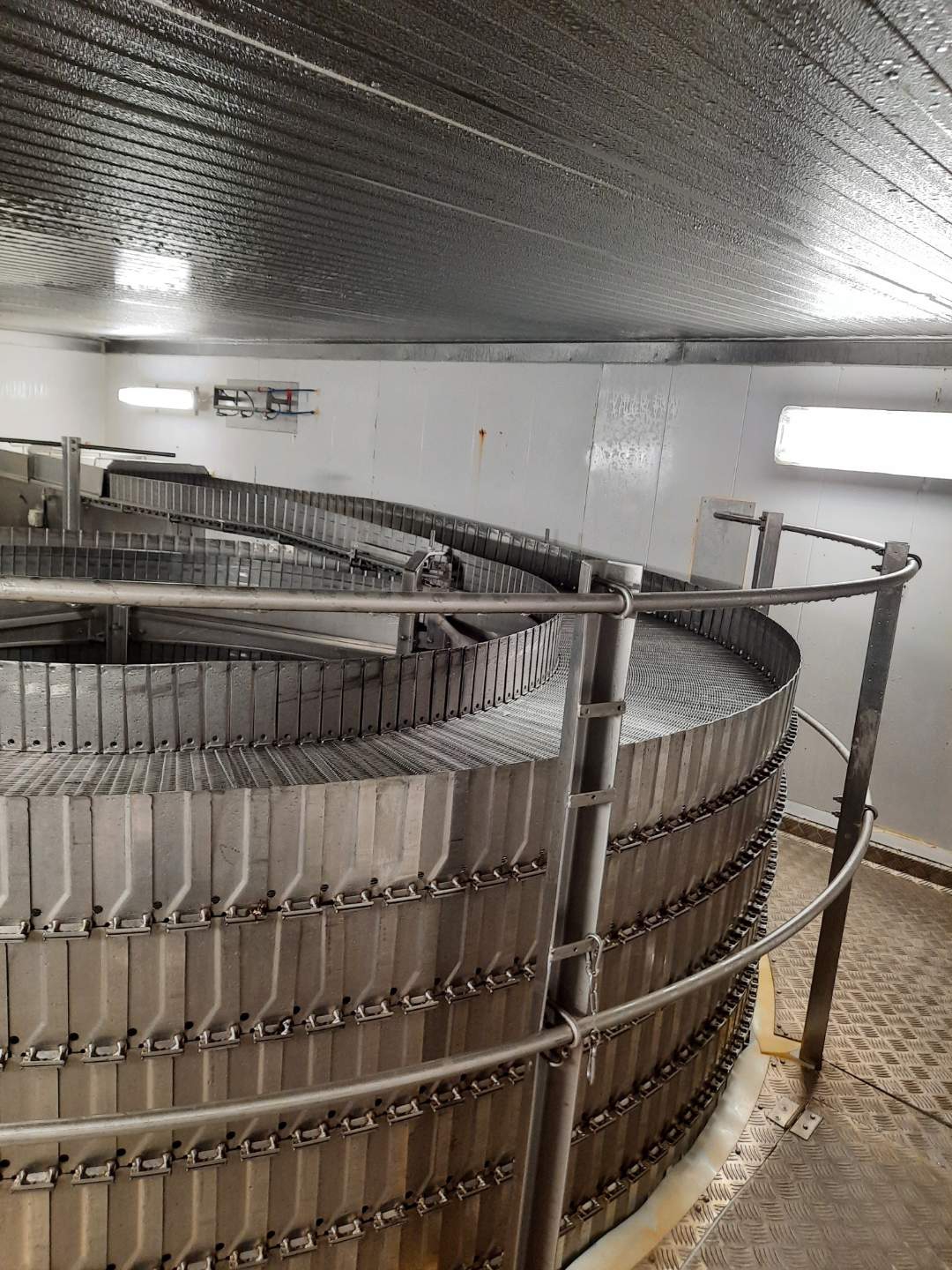

Frigoscandia GCM58-15-12-09 NS CCR
Spiral Freezer
Frigoscandia GYRoCOMPACT M58
Special 150mm link height, 135mm product clearance.
| Brand | JBT Frigoscandia |
| Type | GCM58-15-12-09 NS CCR |
| Model | North-South, Counter Clockwise Rotation |
| Variety | GyroCompact GCM58 |
| Tiers | 12 pcs. |
| Product gap | 135mm |
| Link height | 150mm |

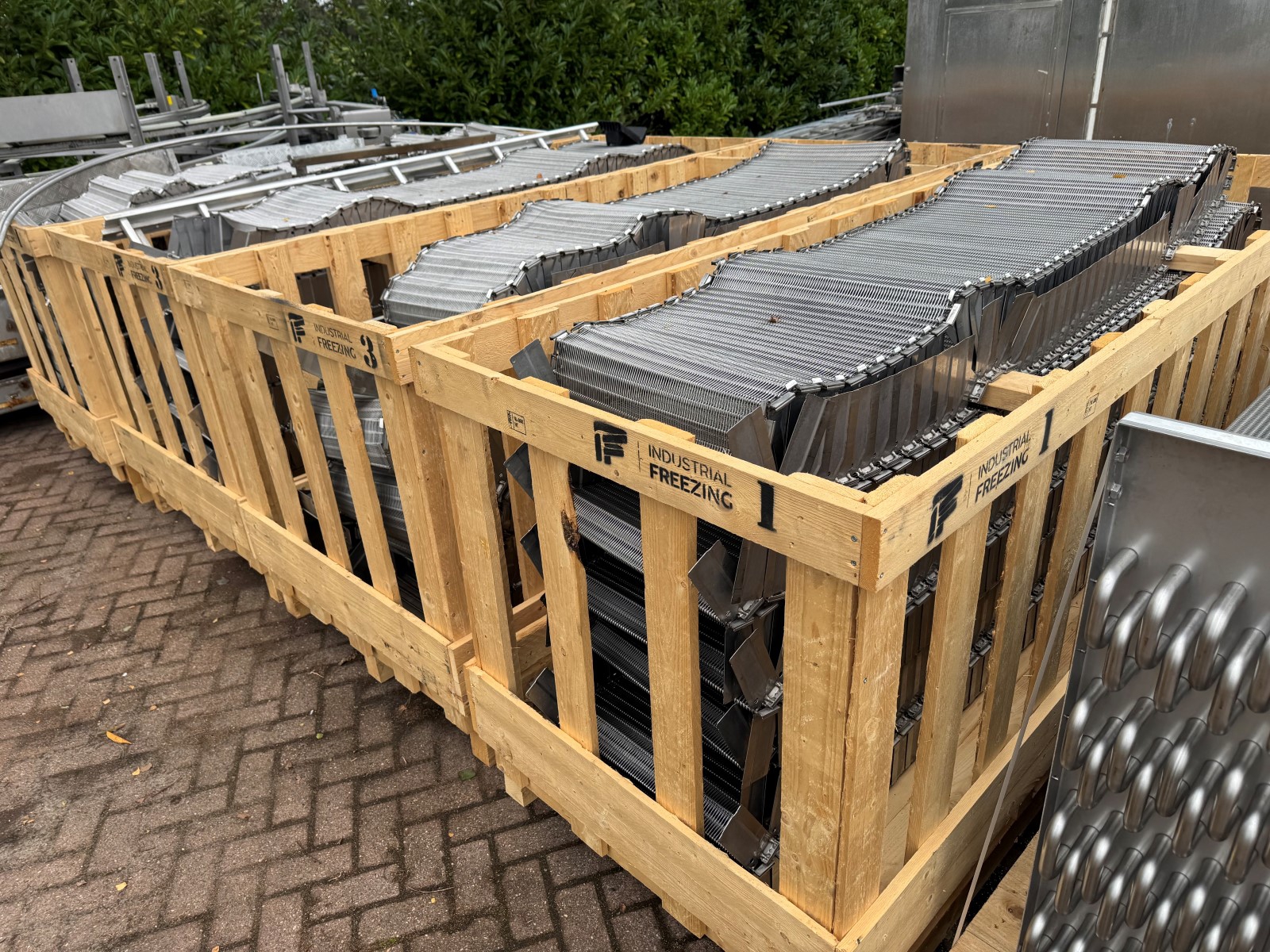

| Mesh wire thickness | Fine mesh |
| Length per tier | 9,6M |
| Belt width | Gross: 580 mm / Nett: 535 mm |
| Belt length | 115M in the stack |
| Belt speed | Variable programmable |
| Infeed height | 760mm |
| Outfeed height | 2776mm |
| Refrigerant | Ammonia pumped - NEW stainless Güntner coils in 2022 |
| Cooling power | 145kW |

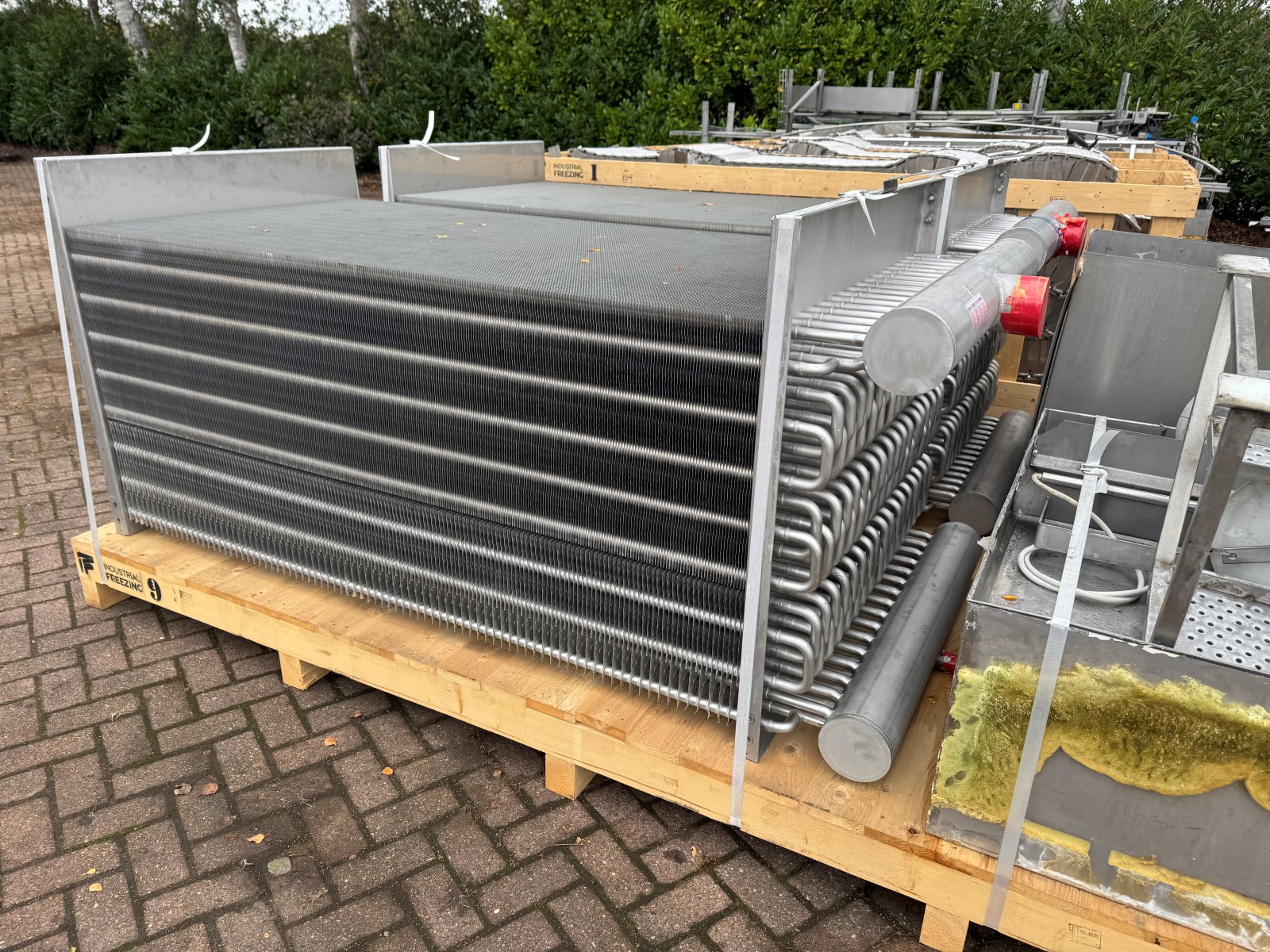

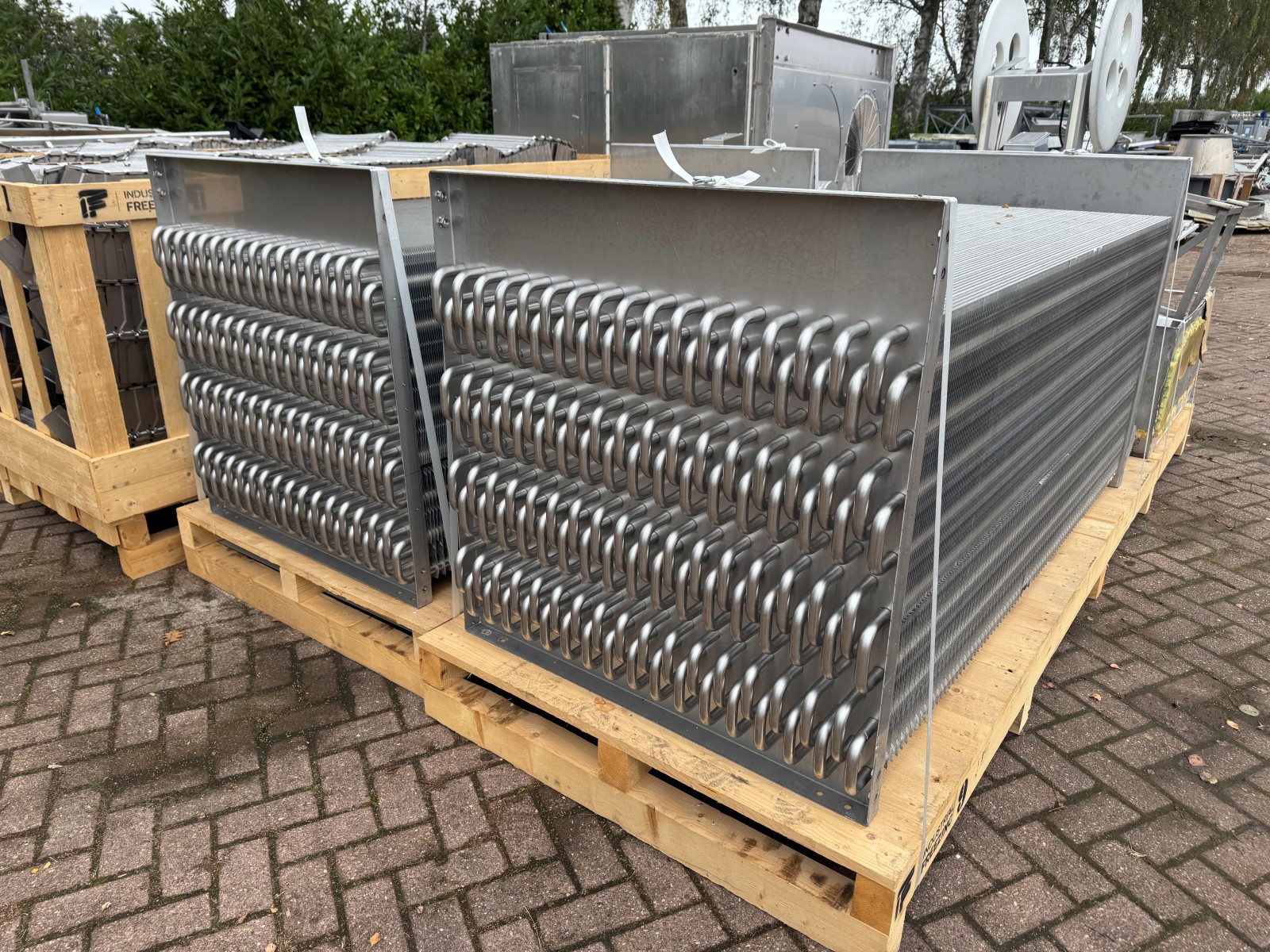

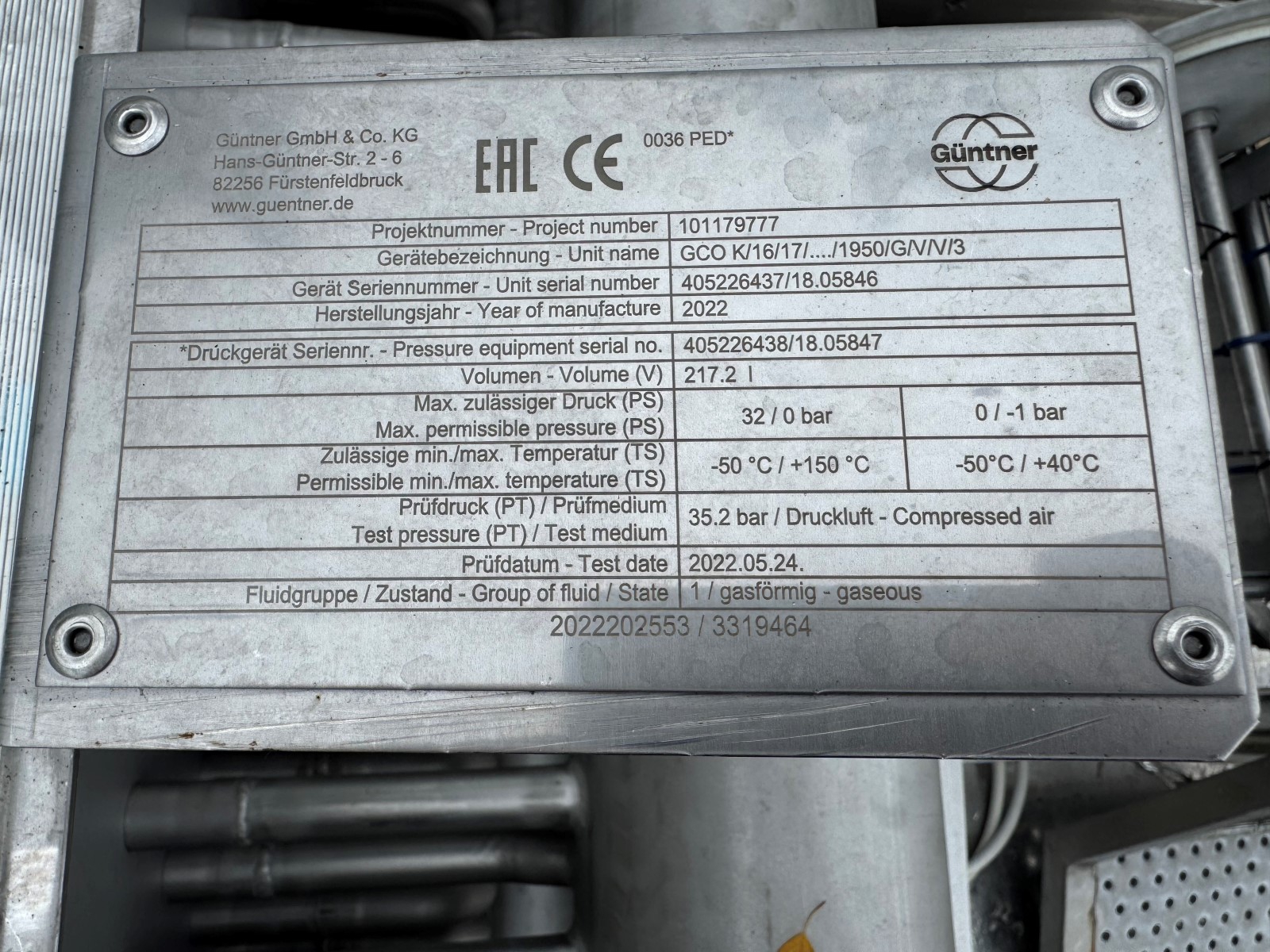

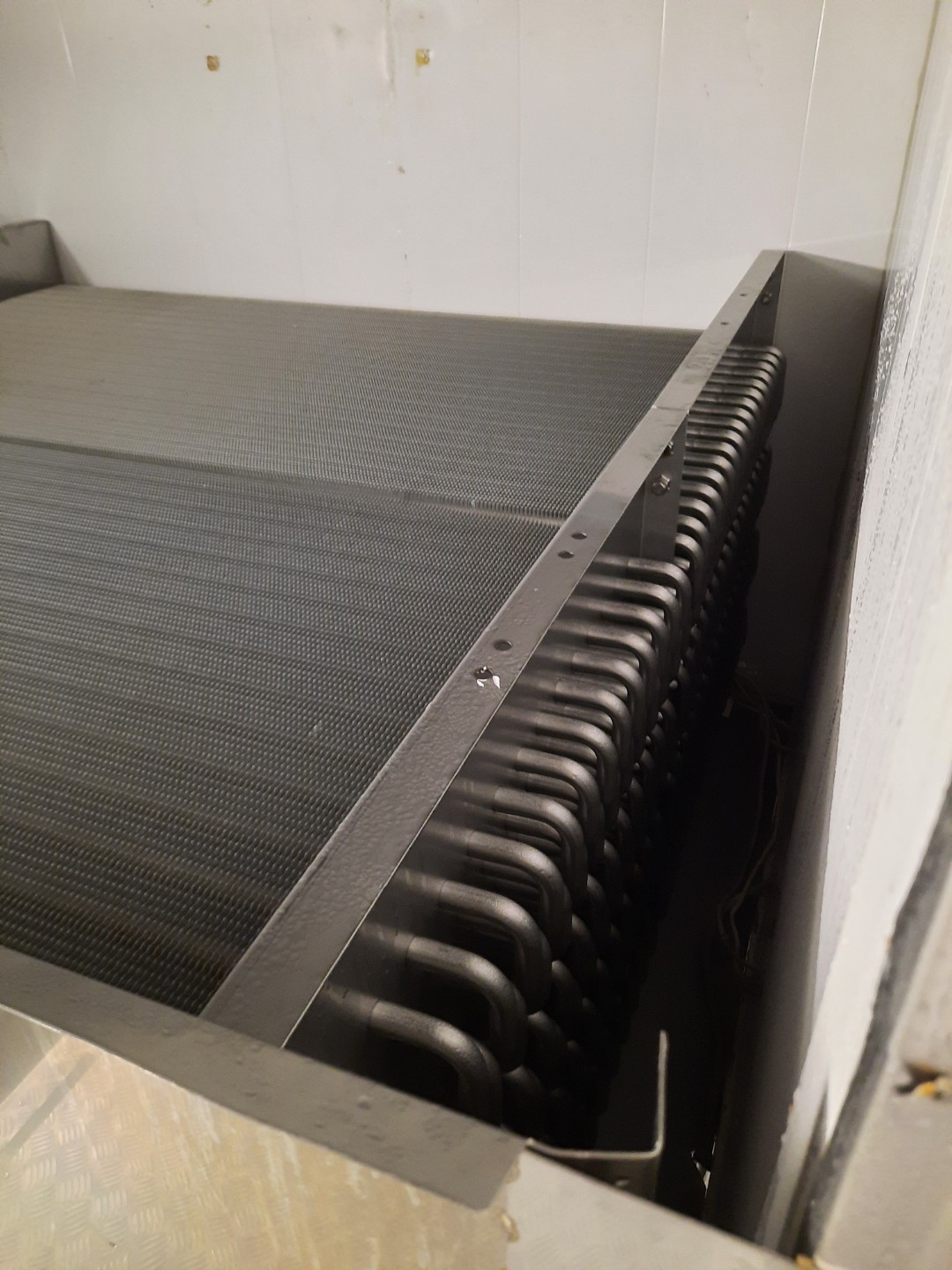

| Evaporator | Güntner stainless steel year 2022 |

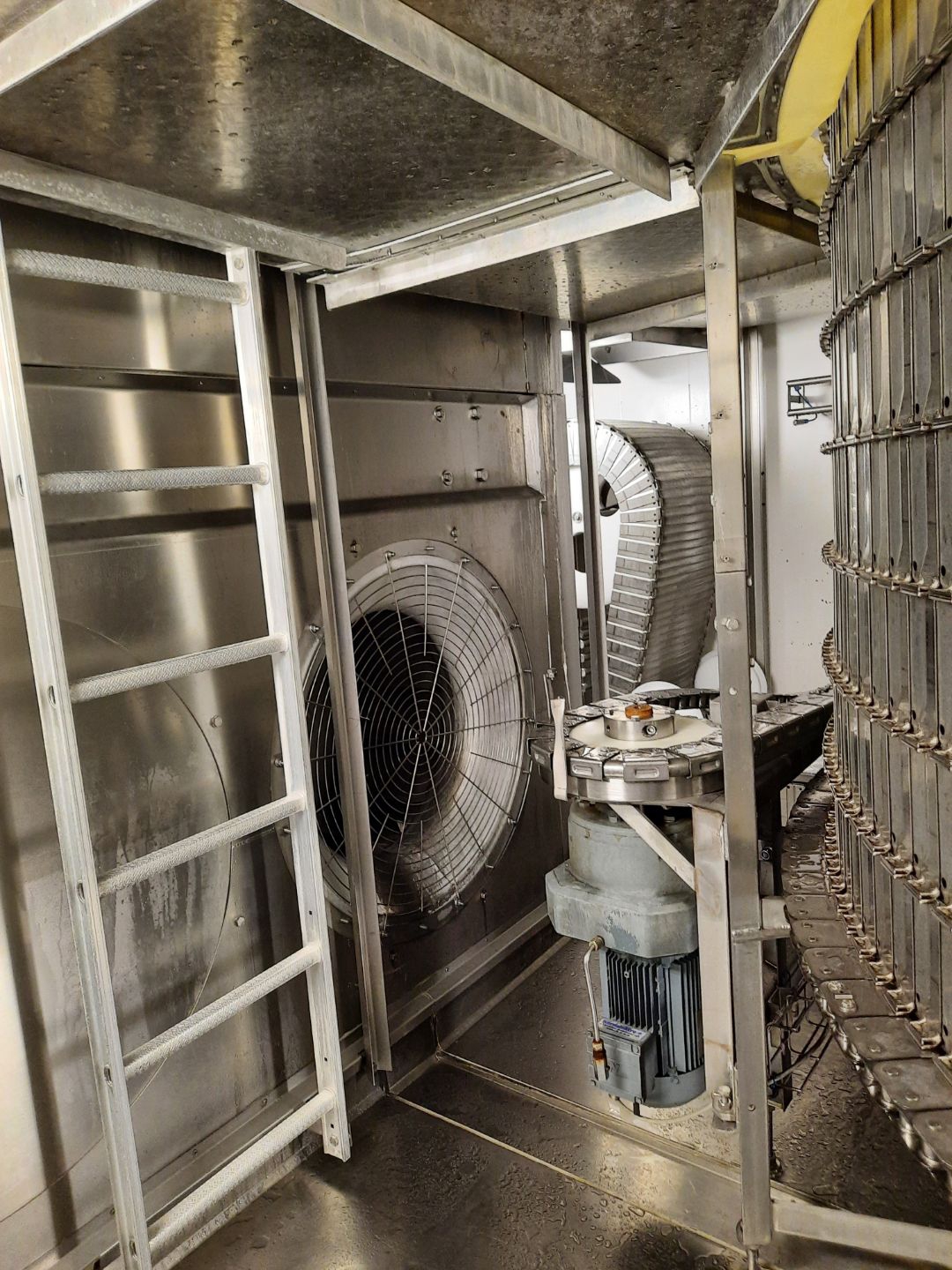

| Number of fans | 2 |
