Heinen SF 3.6/4.6-11-11.5 S
Heinen compact

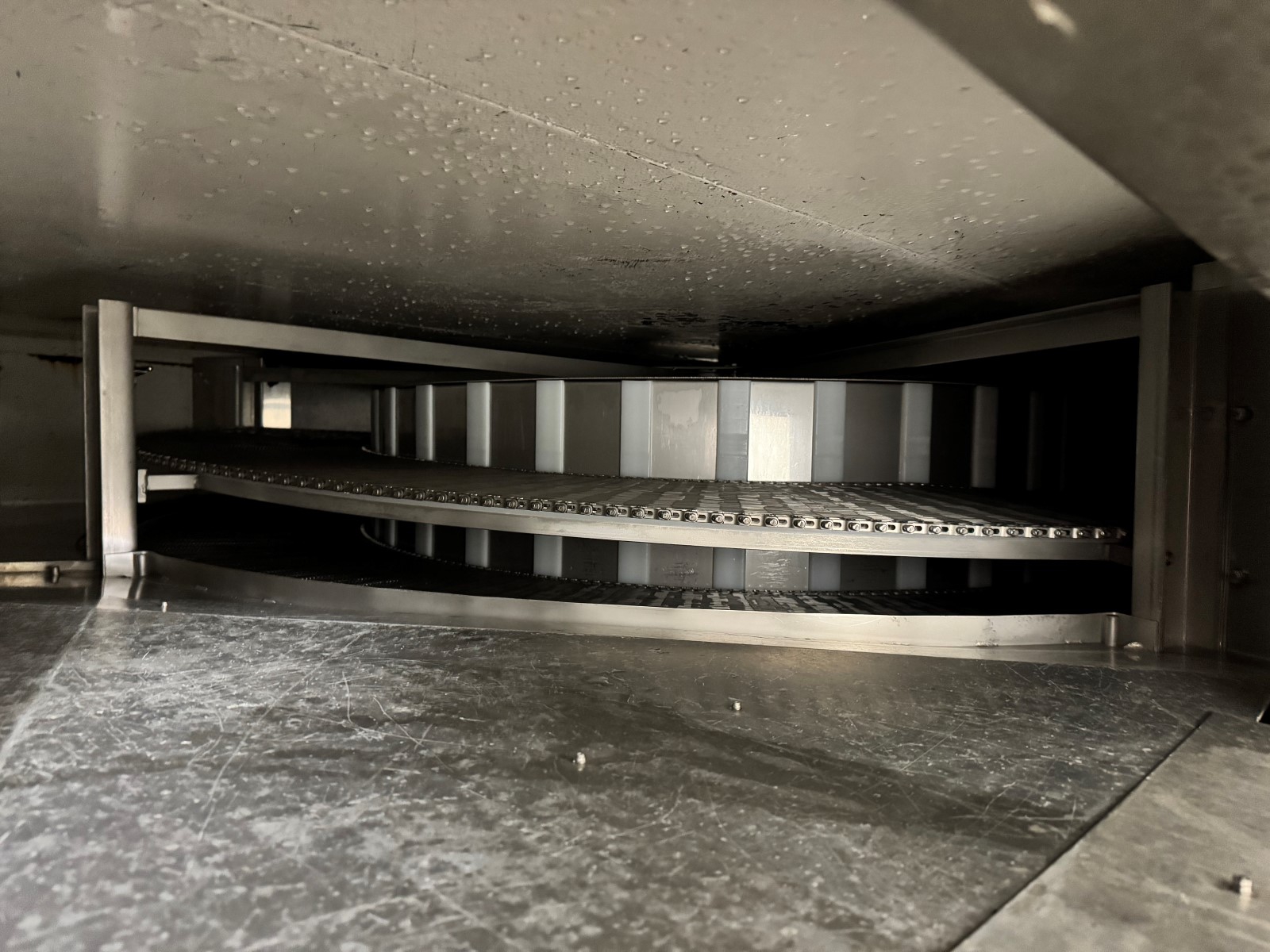

Compact spiral freezer
This unit will be frame up refurbished with new insulation housing and inspection doors, new electrical switch cabinet and electrics throughout, optional NEW stainless steel evaporator coil with refrigerant of choice, freezer in As-New condition.
| Brand | Heinen |
| Type | Heinen Compact Spiral freezer |
| Model | SF 3.6/4.6-11-11.5 S |
| Variety | East-North configuration / 90 degrees clockwise |
| Year of Construction | 2000 |
| Tiers | 11,5 |
| Product gap | 90 mm |

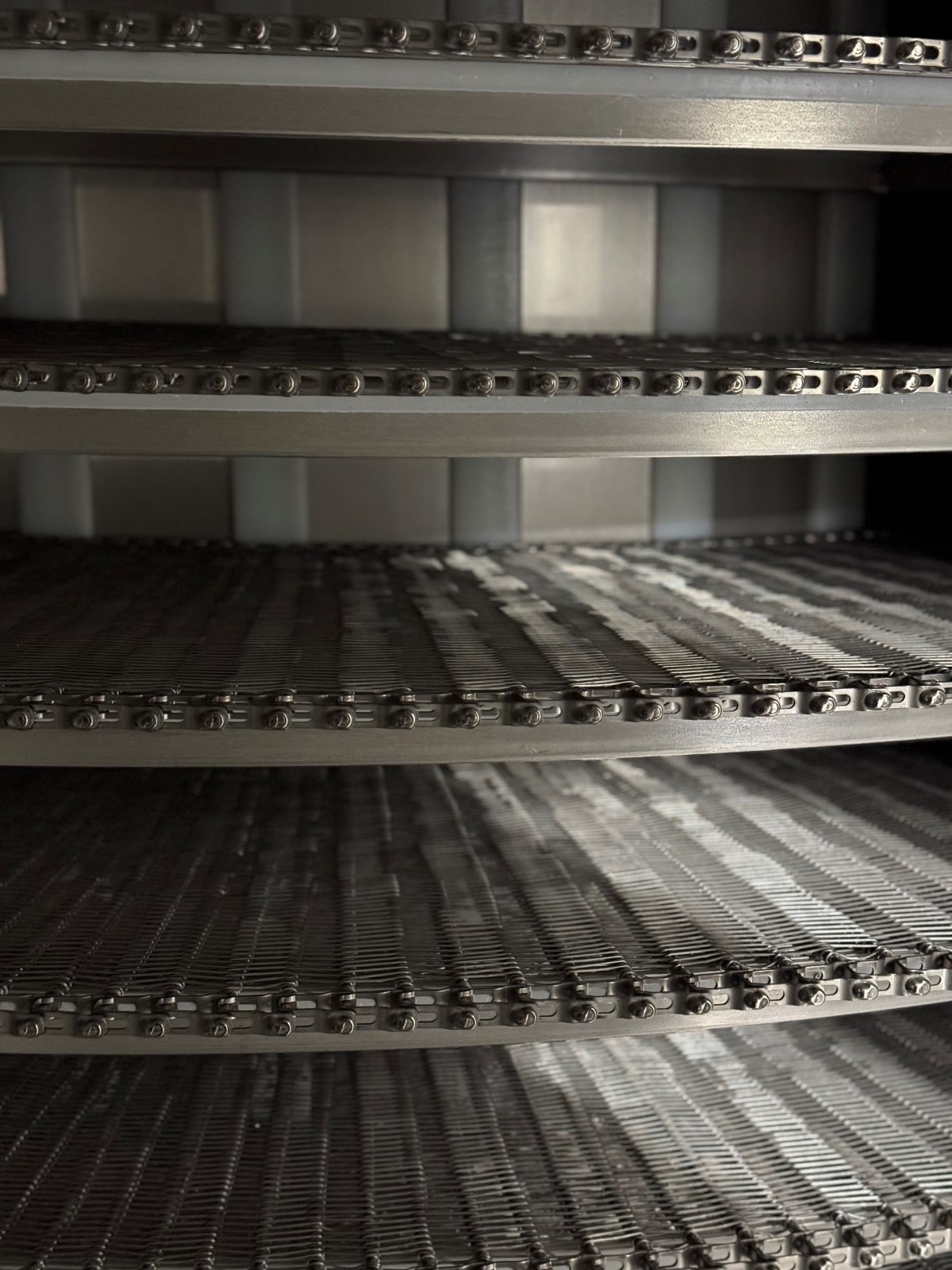

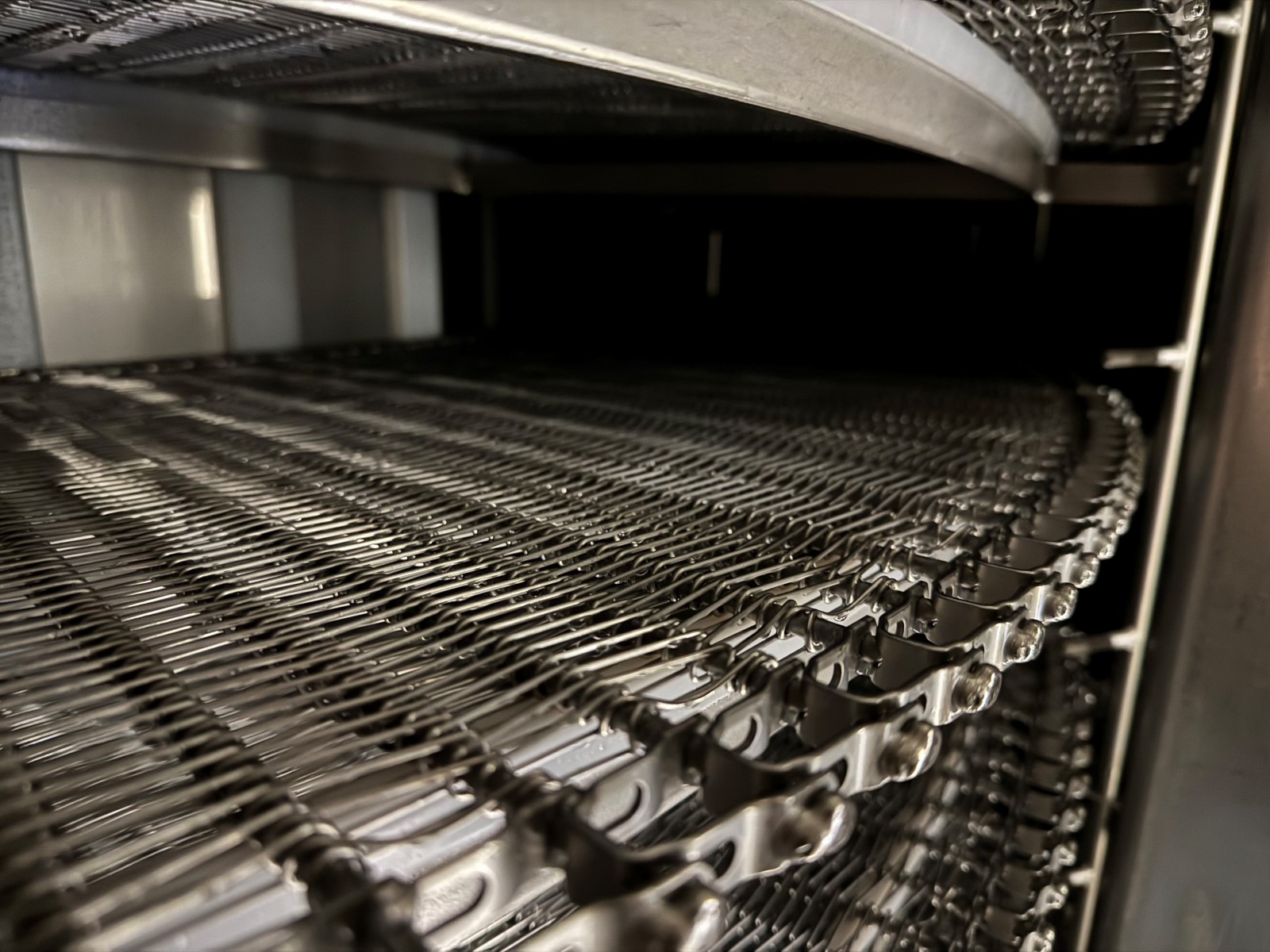

| Mesh wire thickness | GRID B48-12-17 (63-274-14) |
| Belt width | Gross: 457 mm / Nett: 406 mm |
| Belt length | 90M |

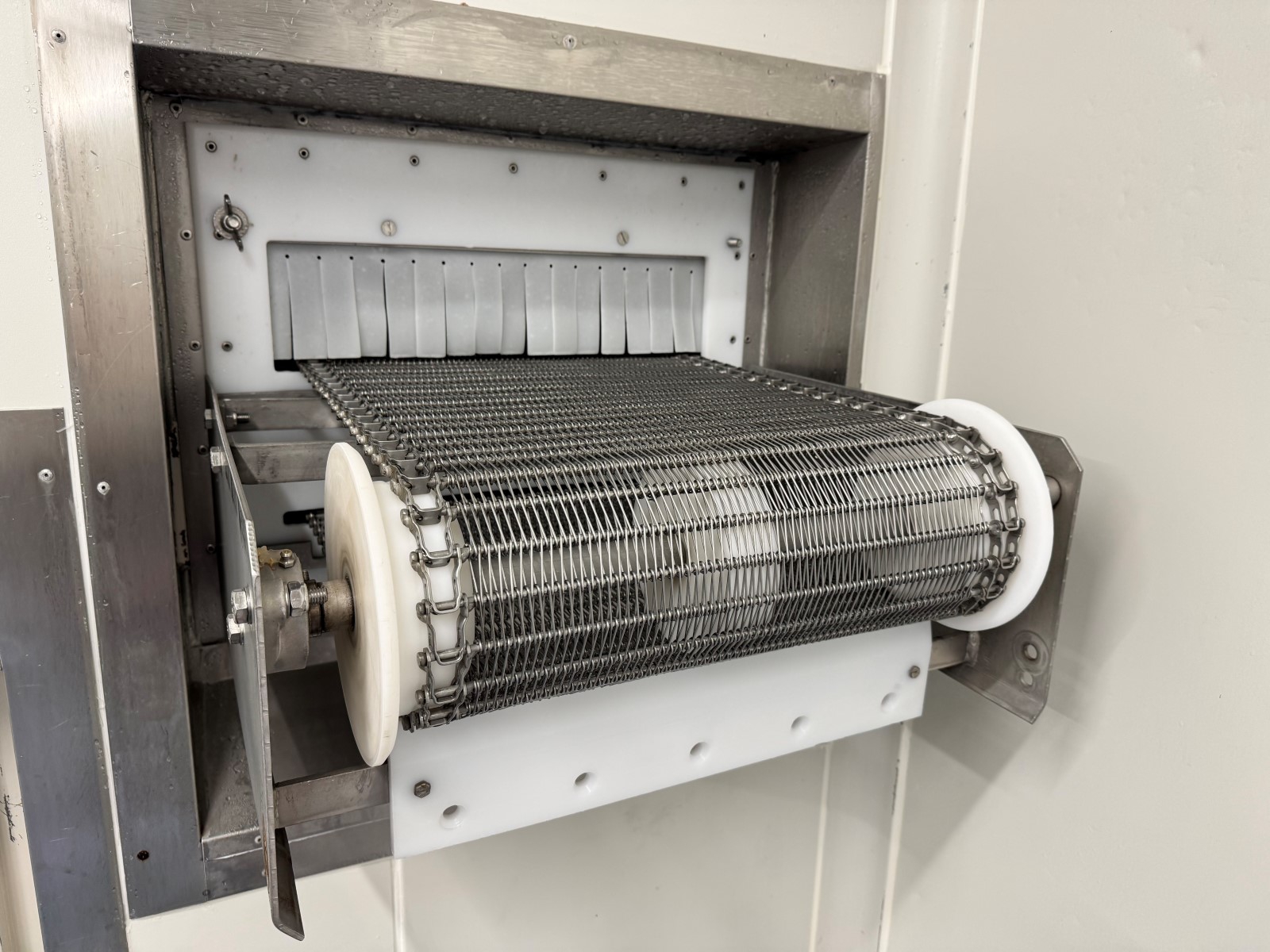

| Infeed height | 800mm |
| Outfeed height | 2500mm |

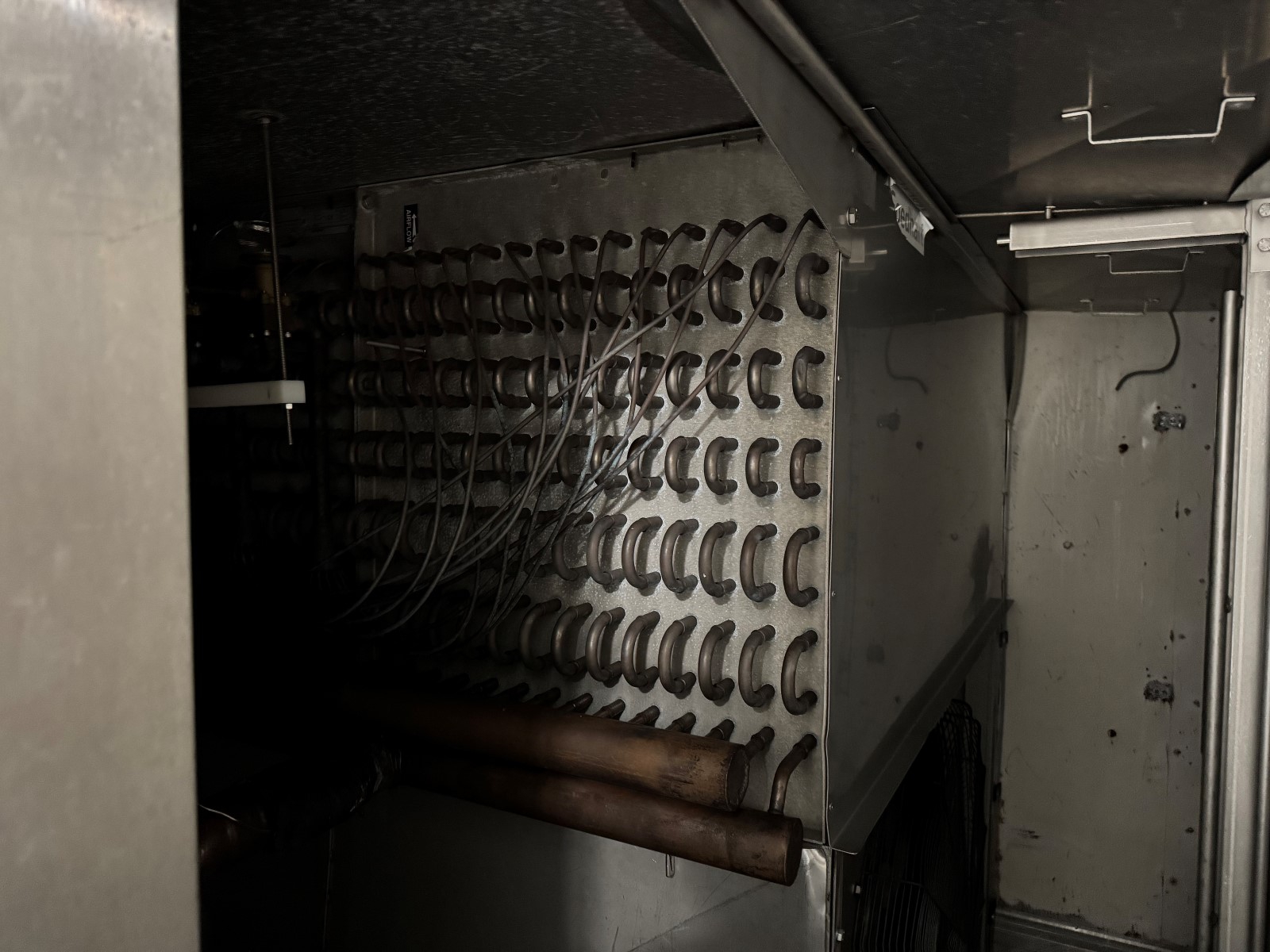

| Refrigerant | Evaporator coil with refrigerant of preference |
| Cooling power | 45kW |
| Power | 230-400V / 50Hz / 3Ph |
| Number of fans | 1 fan 7kW |
| Dimensions | 5400 mm x 2800 mm x 2800 mm |
