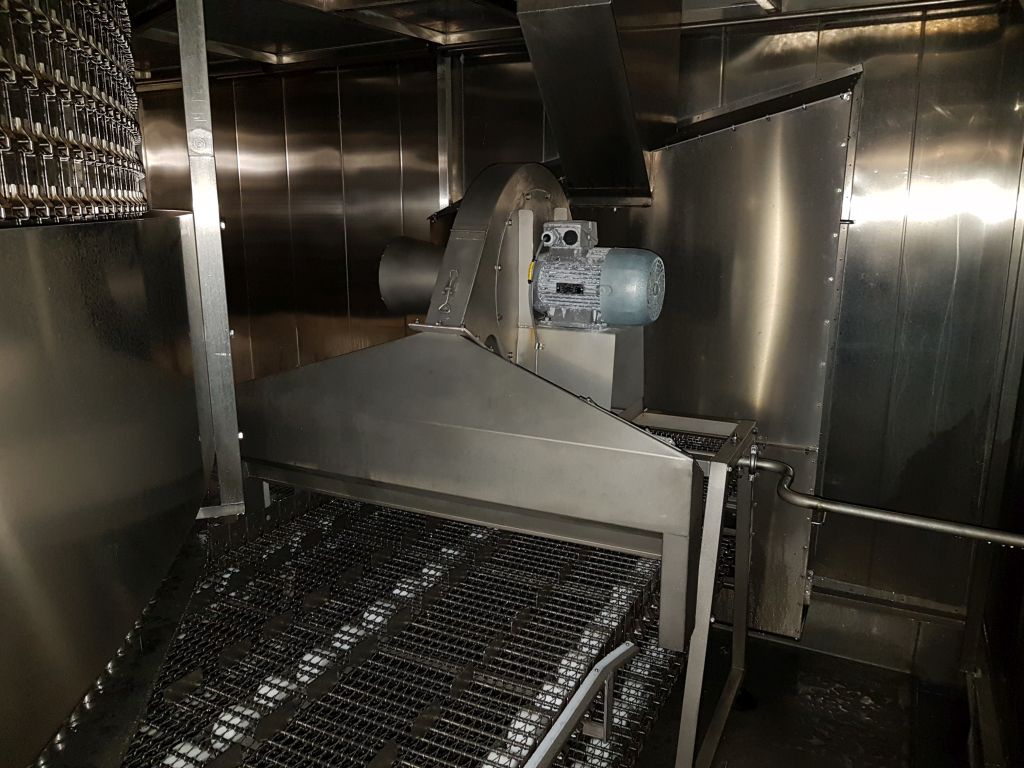

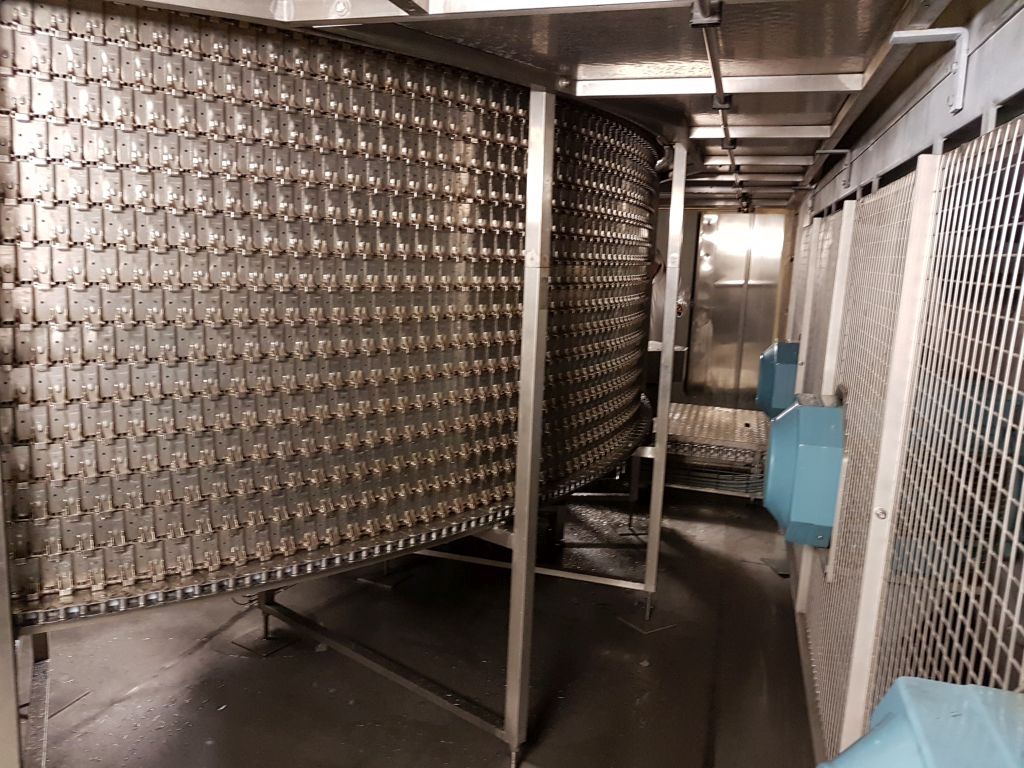

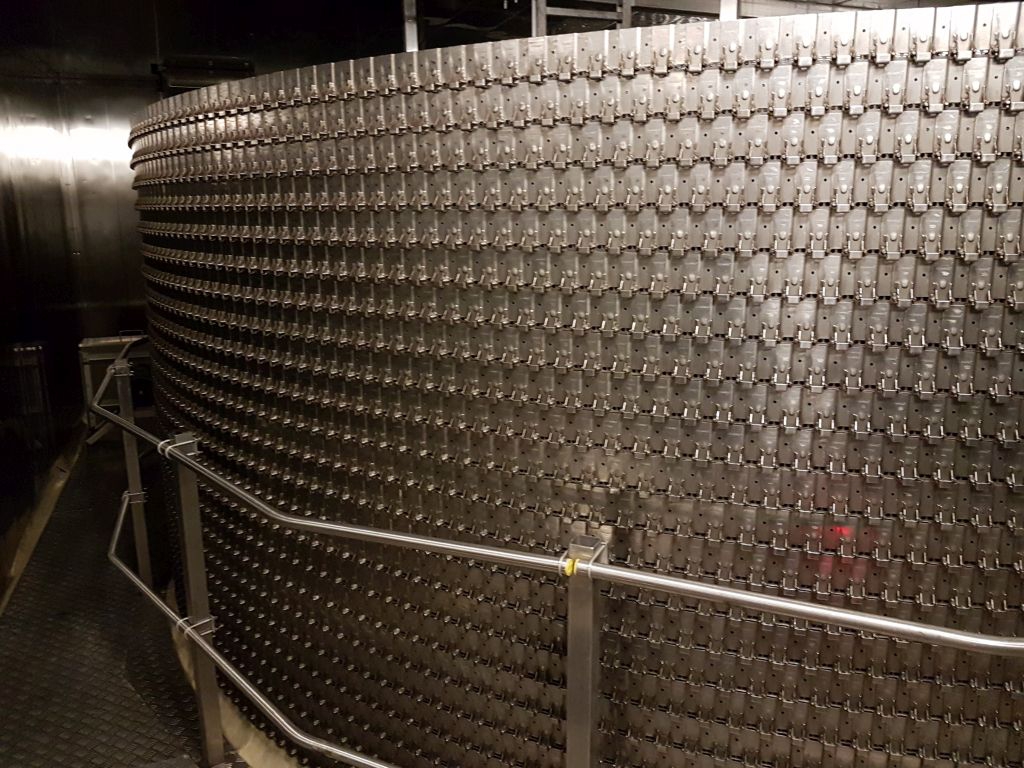

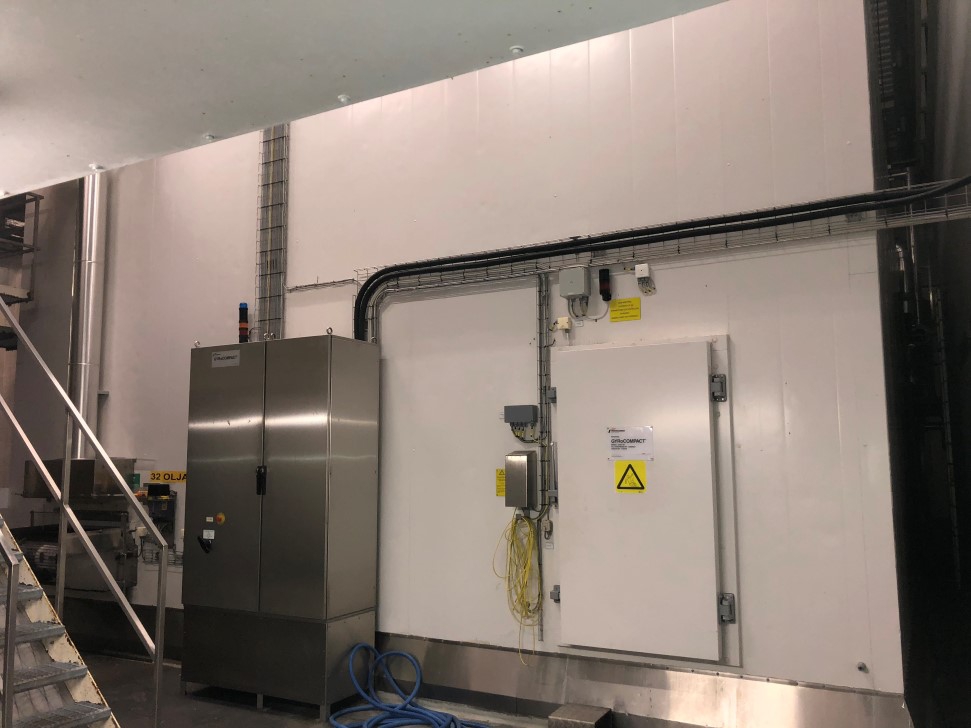

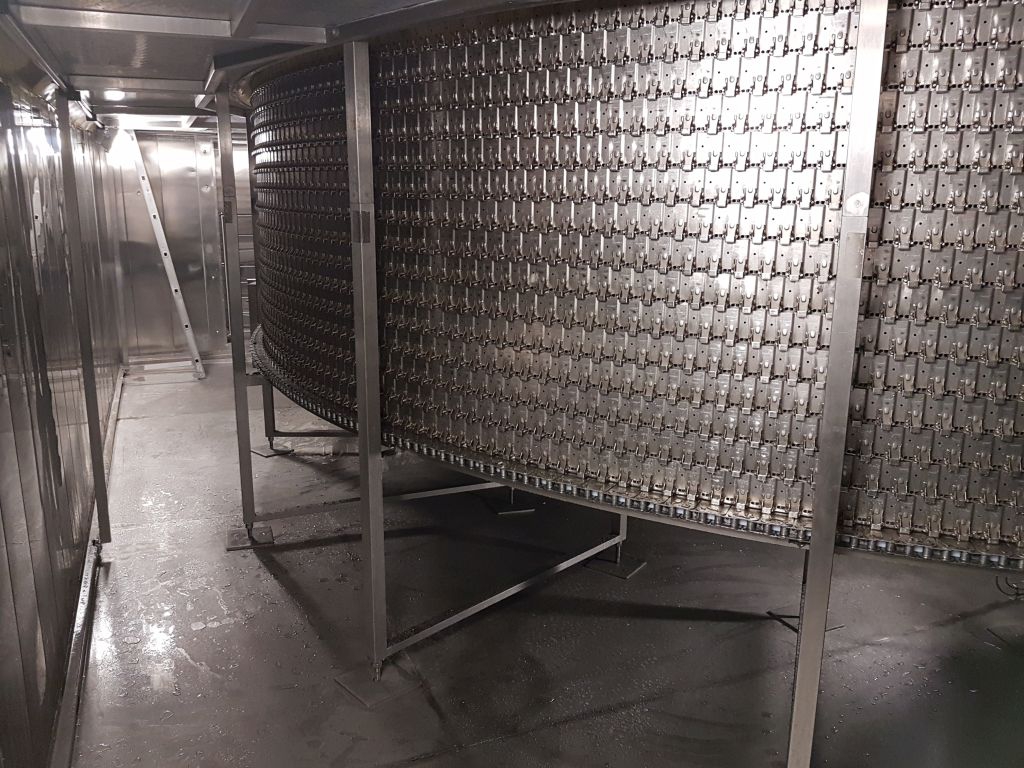

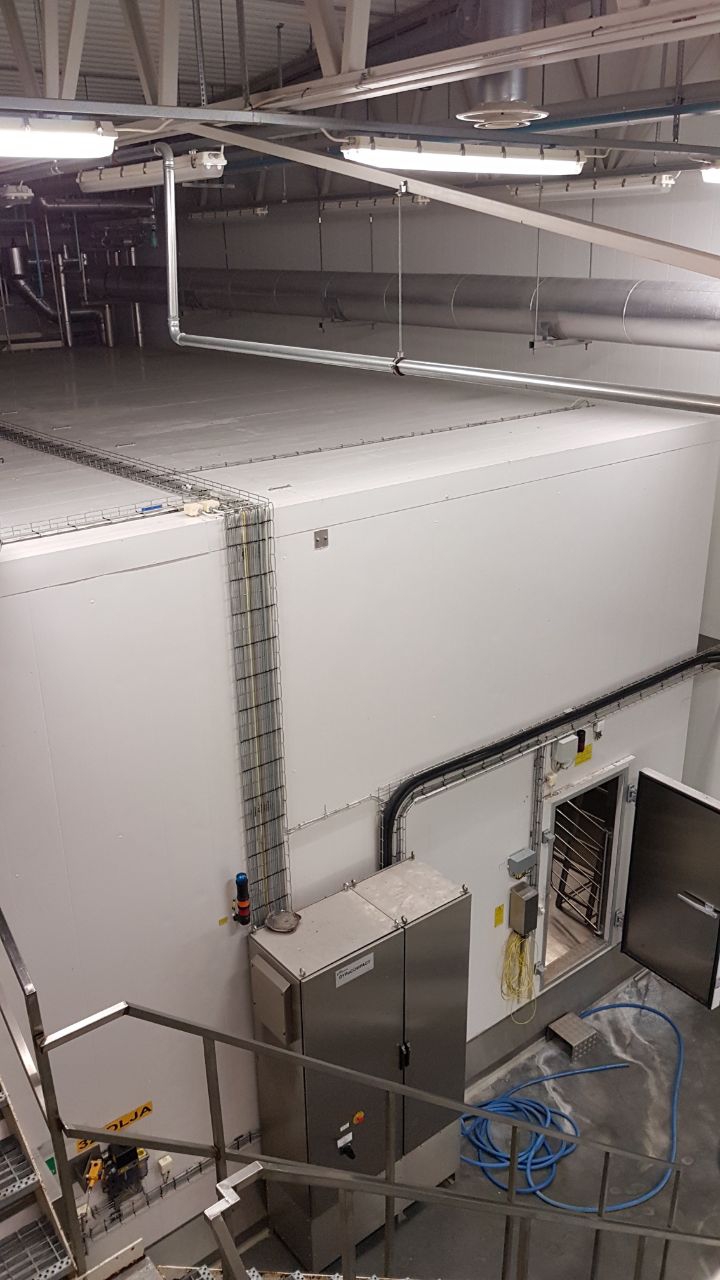

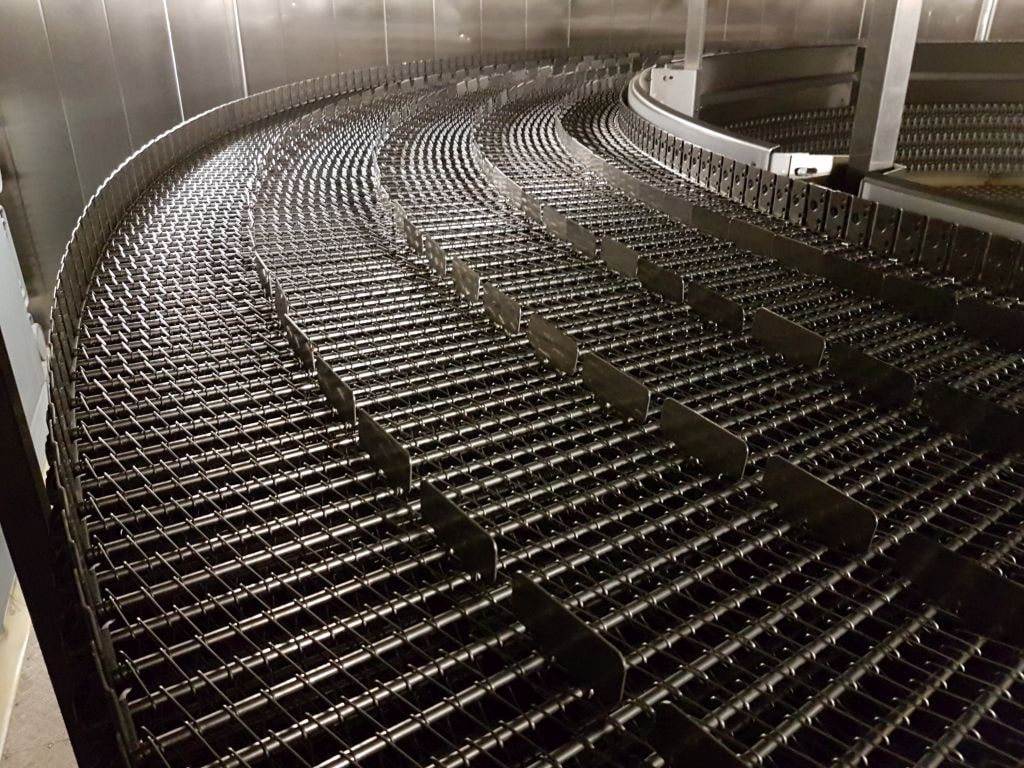

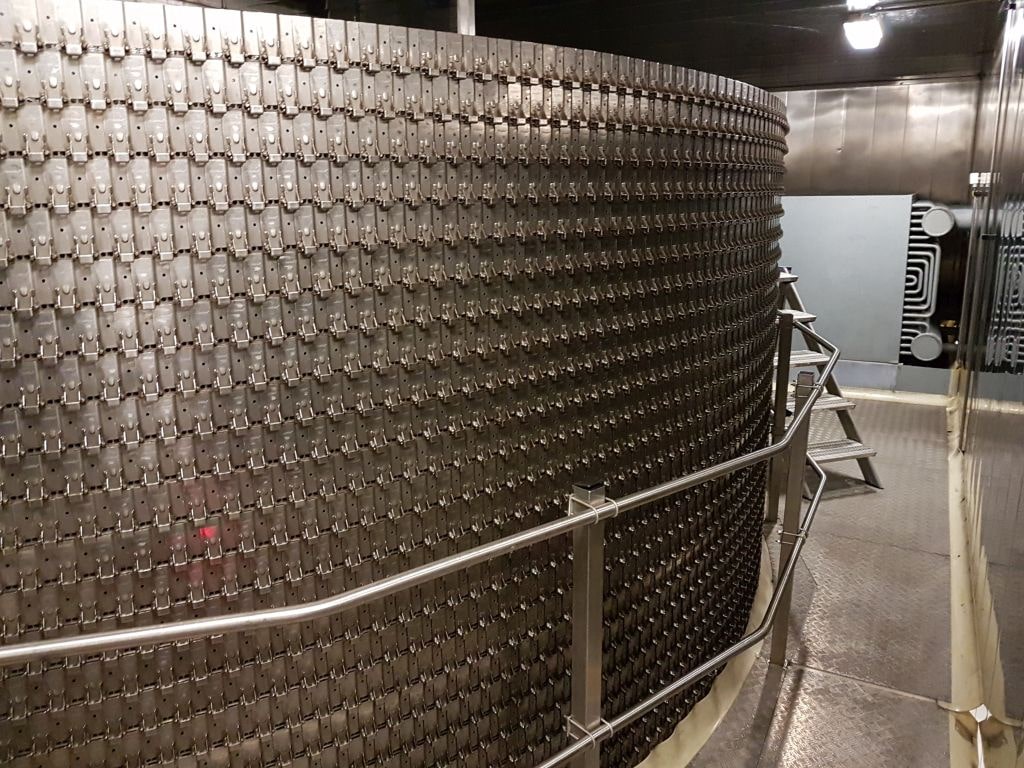

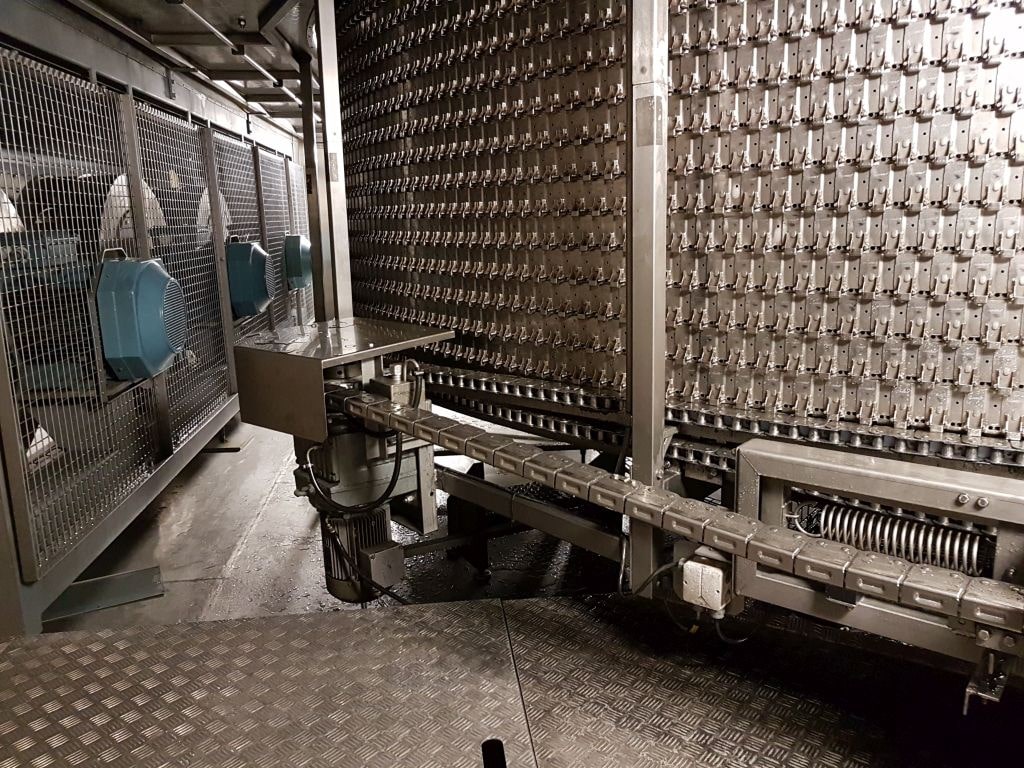

Frigoscandia GCM106-08-40-40 NS CR
Spiral Freezer
Frigoscandia GYRoCOMPACT M106
Max belt load: 18 kg/m2, Stainless steel floor, central lubrication system, Reverse airflow, ideal for Ready Meal Trays and similar heavier products.
| Type | GCM106-08-40-40 NS-CR |
| Model | North-South, Clockwise Rotation |
| Year of Construction | 2001 |

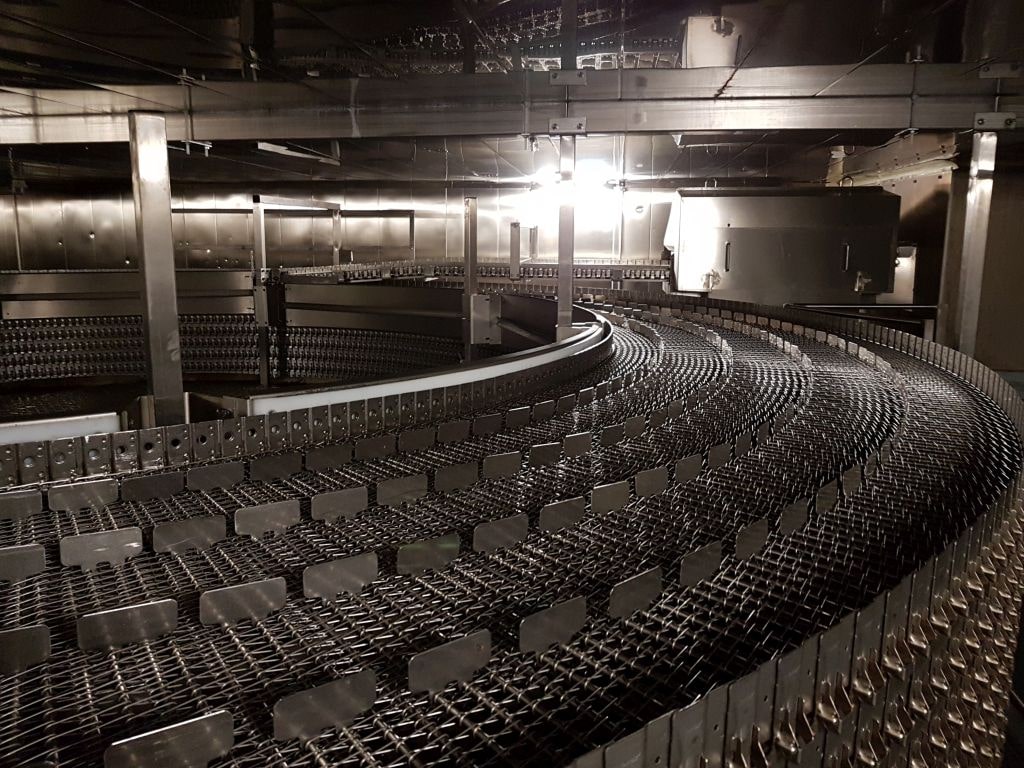

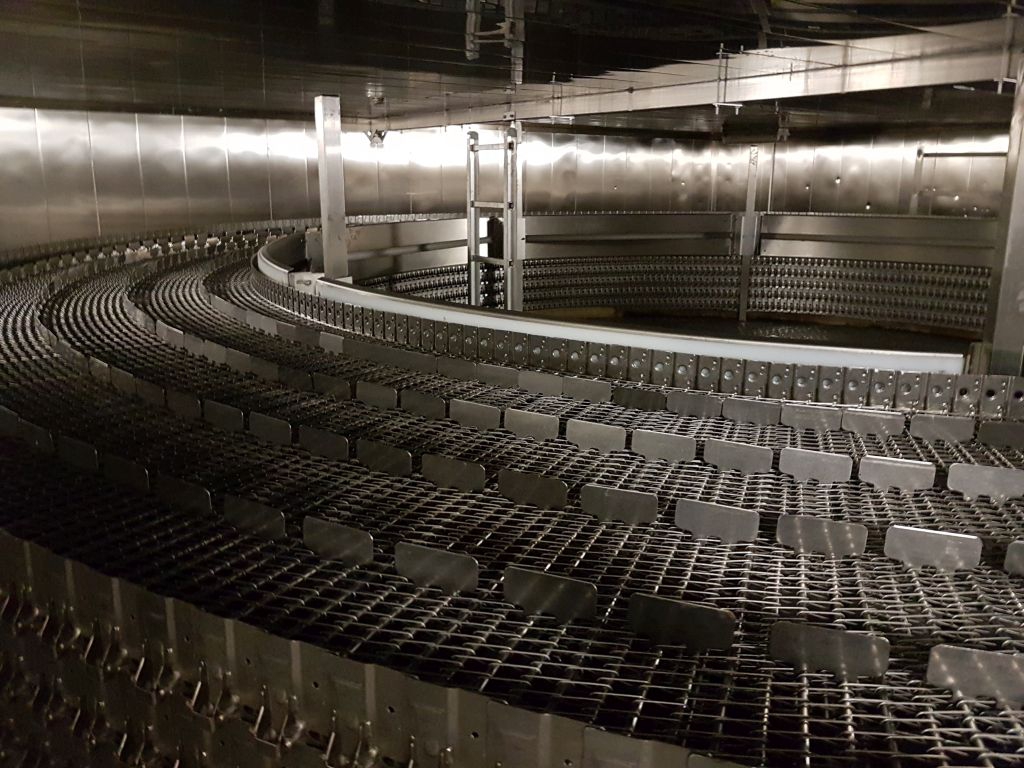

| Tiers | 40 pcs. |
| Product gap | 65 mm |
| Link height | 80 mm |

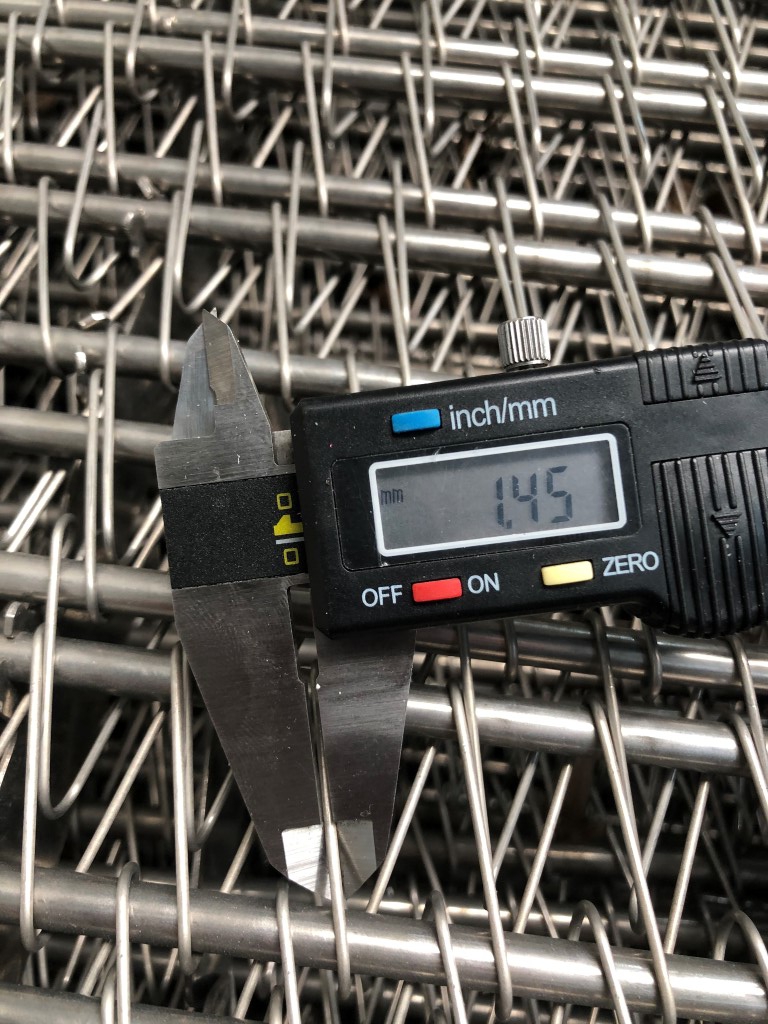

| Belt width | Gross: 1060 mm / Nett: 1000 mm |

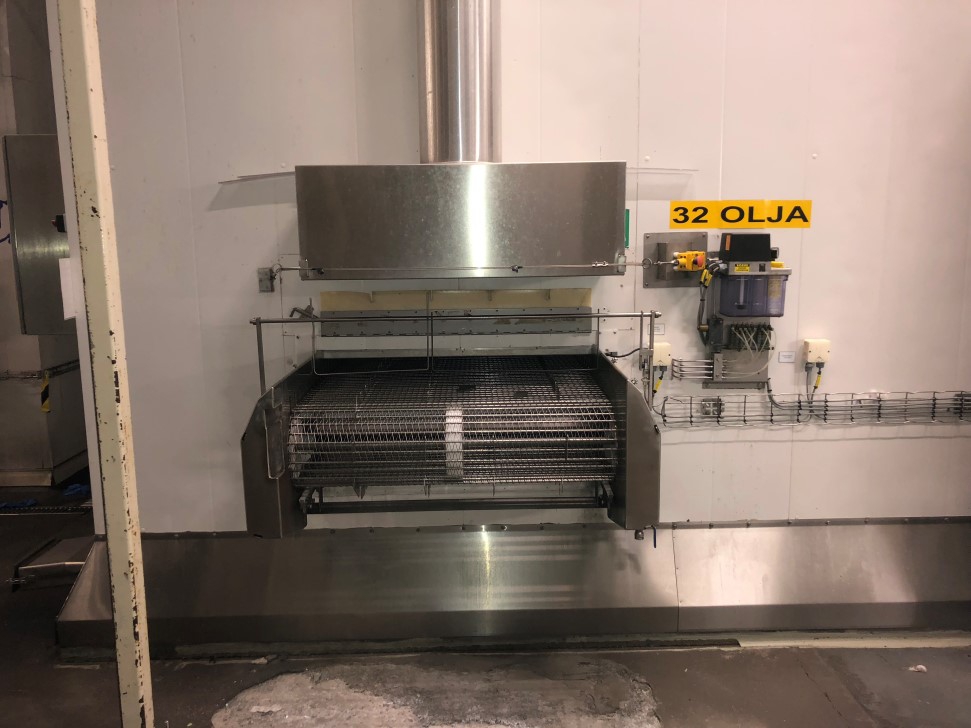

| Infeed height | 900 mm |
| Outfeed height | 4500 mm |
| Refrigerant | R717/NH3/ammonia |
| Cooling power | max. 640 kW |

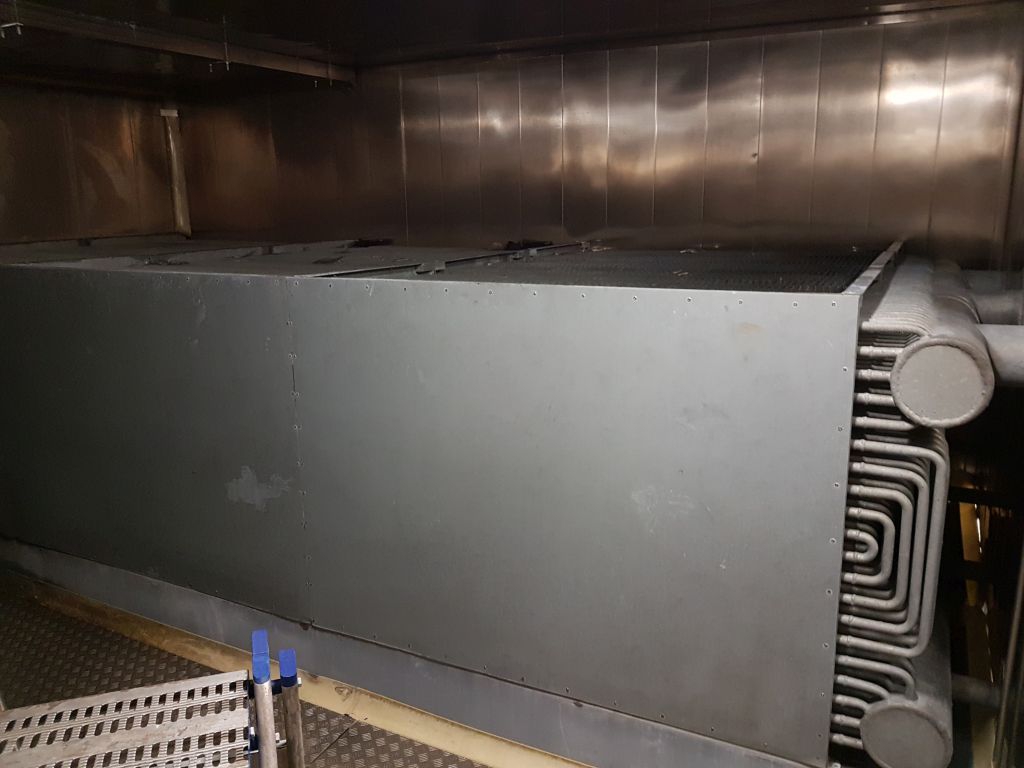

| Evaporator | 4000 m2 |
| Dimensions | 13050 mm x 9450 mm x 5300 mm |
