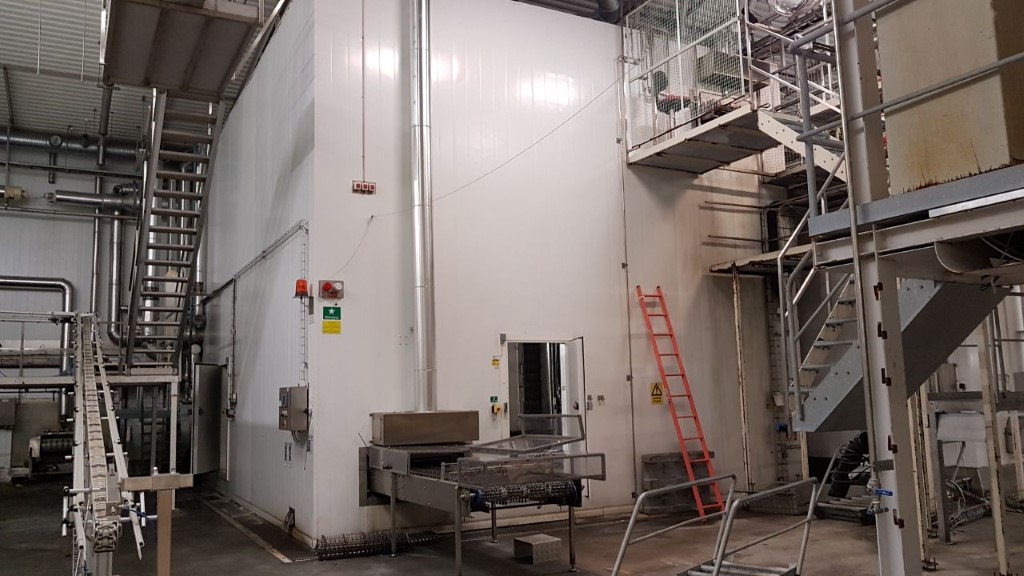

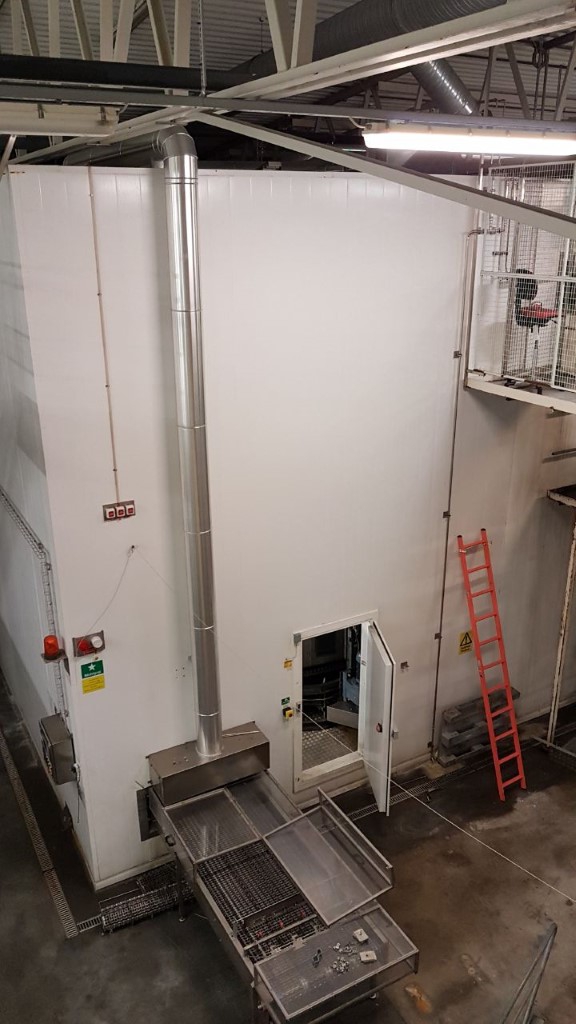

Heinen Arctic SF 9.6-11-38S (A9)
Spiral Freezer
Heinen Arctic
Single drum North-North input/output set up, 737 usable belth length, 600m² freezing belt area.
| Type | SF 9.6-11-38S (A9) |

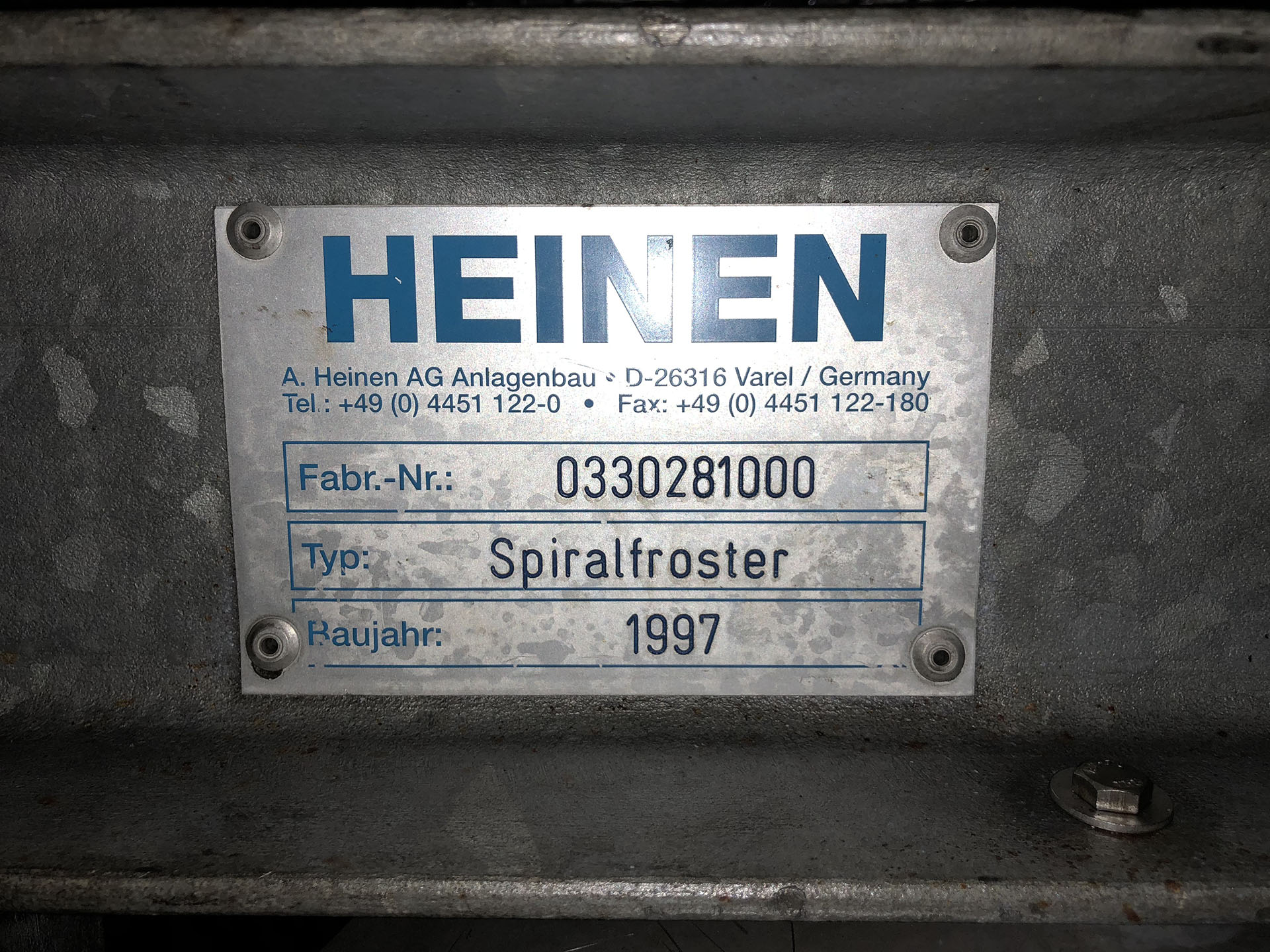

| Year of Construction | 1997 |

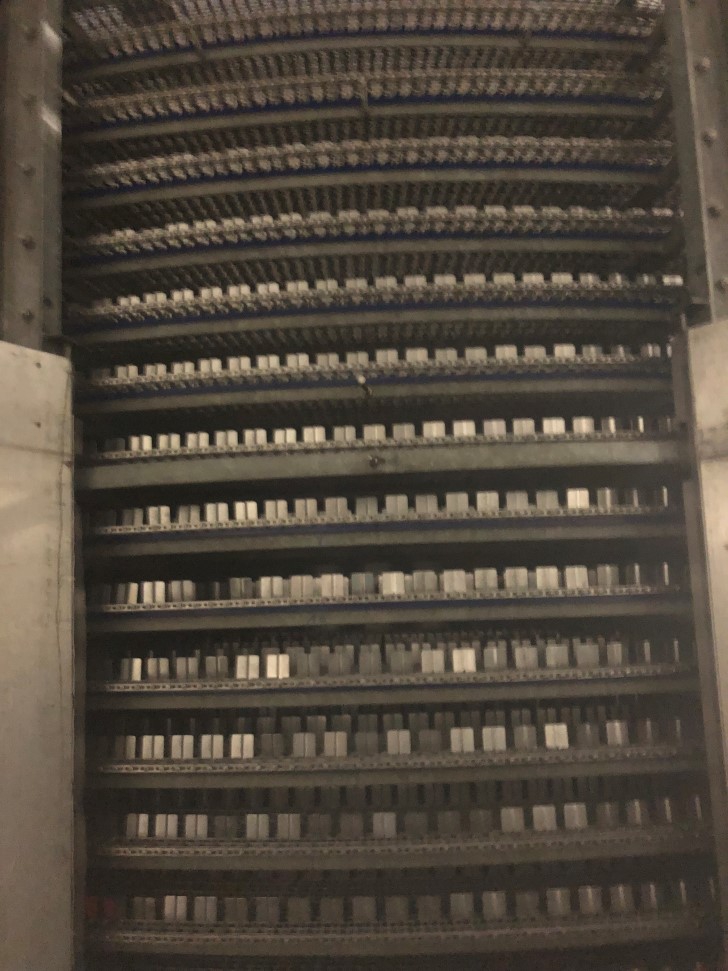

| Tiers | 37.5 pcs. |
| Product gap | 55 mm |

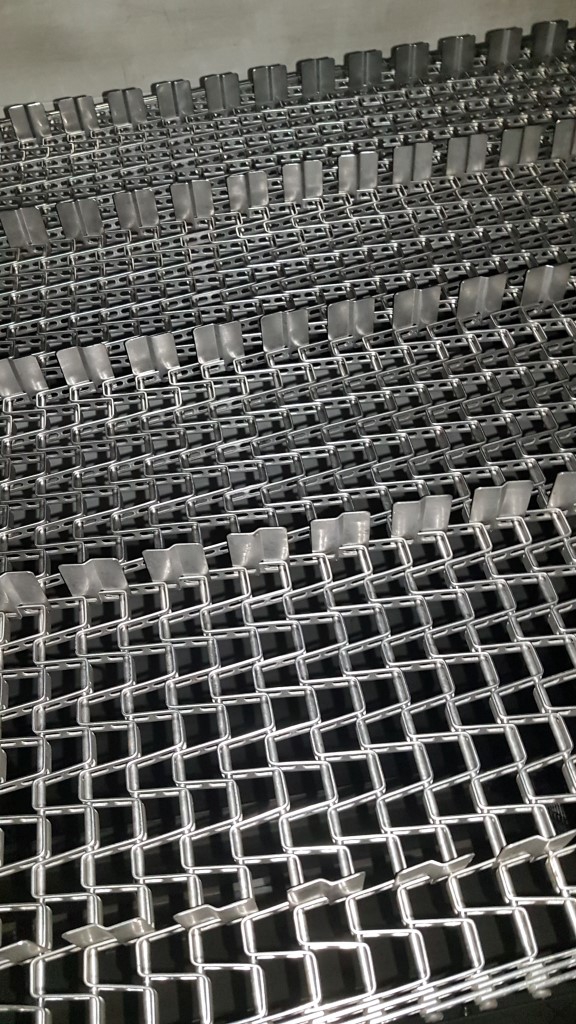

| Belt width | Gross: 965 mm / Nett: 905 mm |
| Belt length | 737 m |

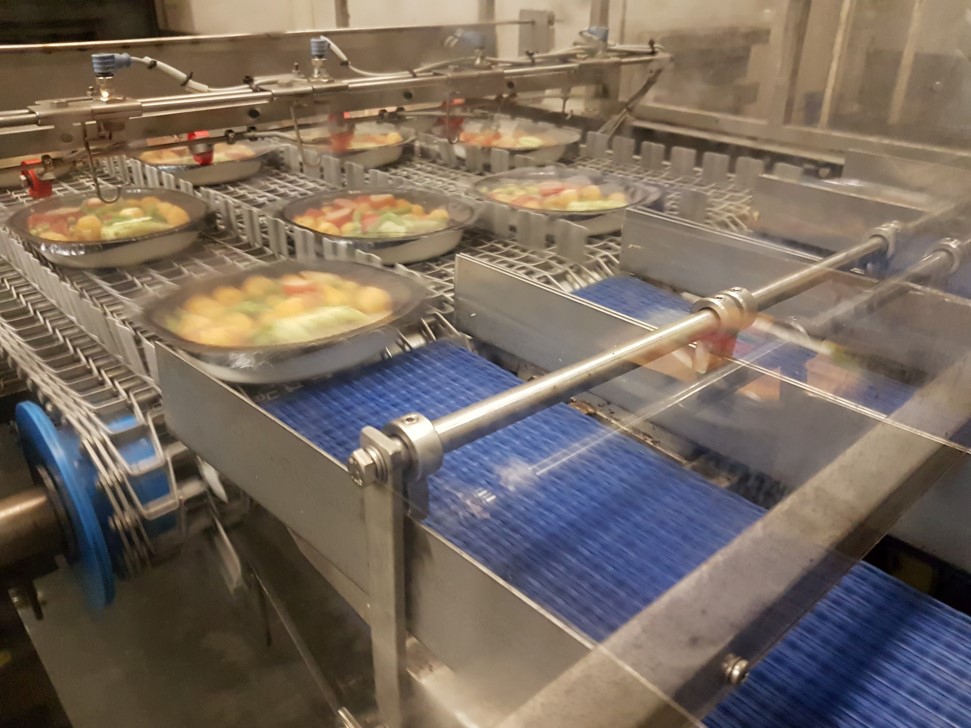

| Capacity | 2300 kg/hr on ready meals |

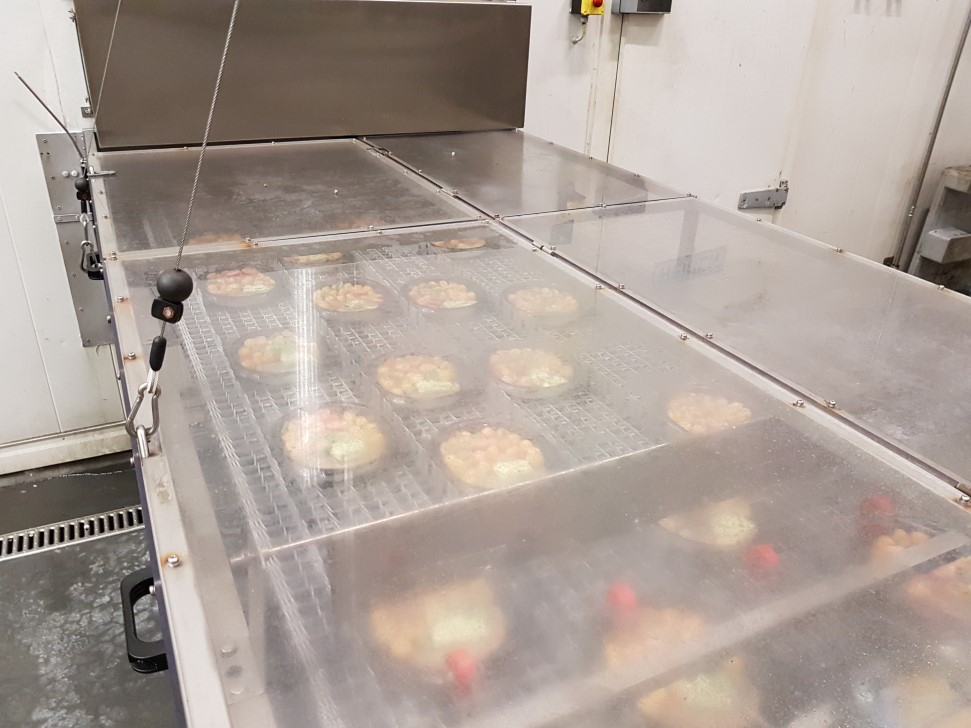

| Infeed height | 900 mm |
| Outfeed height | 6300 mm |
| Refrigerant | R717/NH3/ammonia |
| Cooling power | 325 kW |

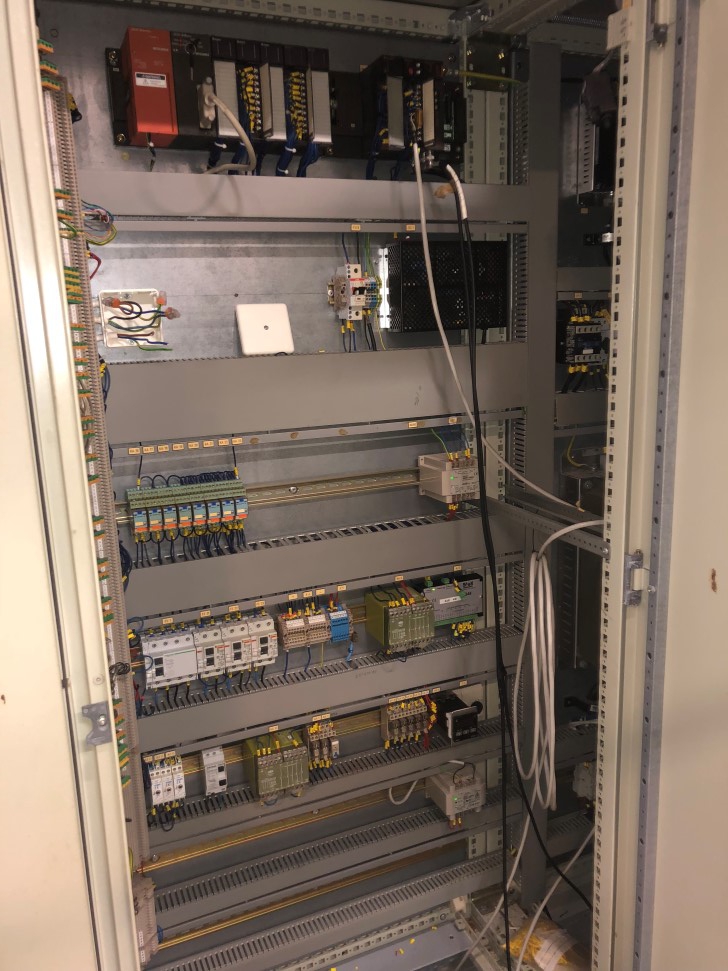

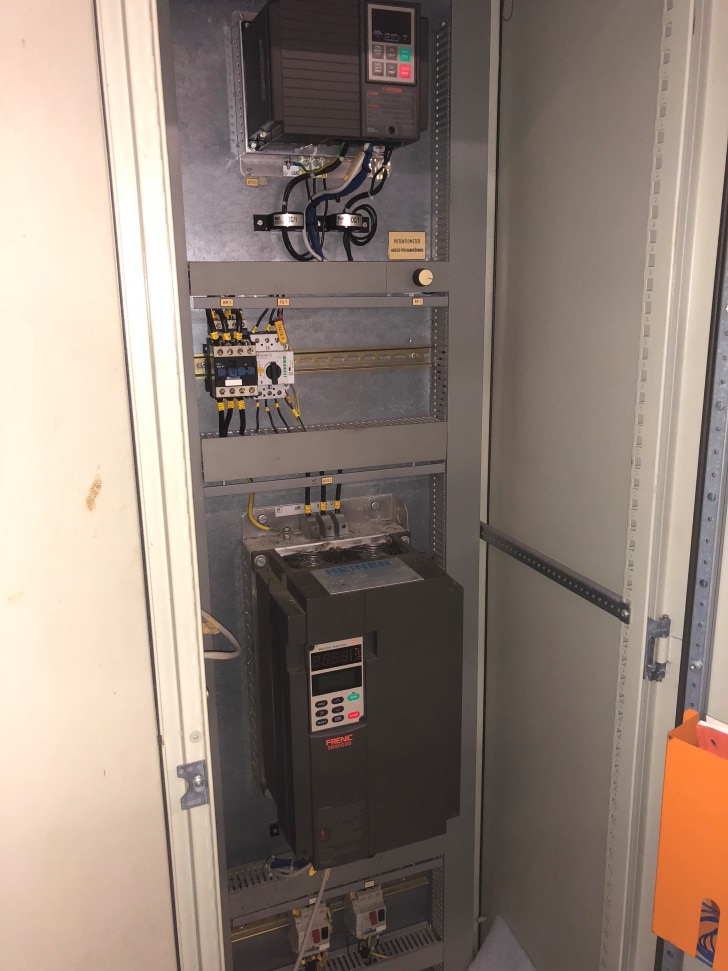

| Power | 3 x 400V / 50Hz / 67kW |

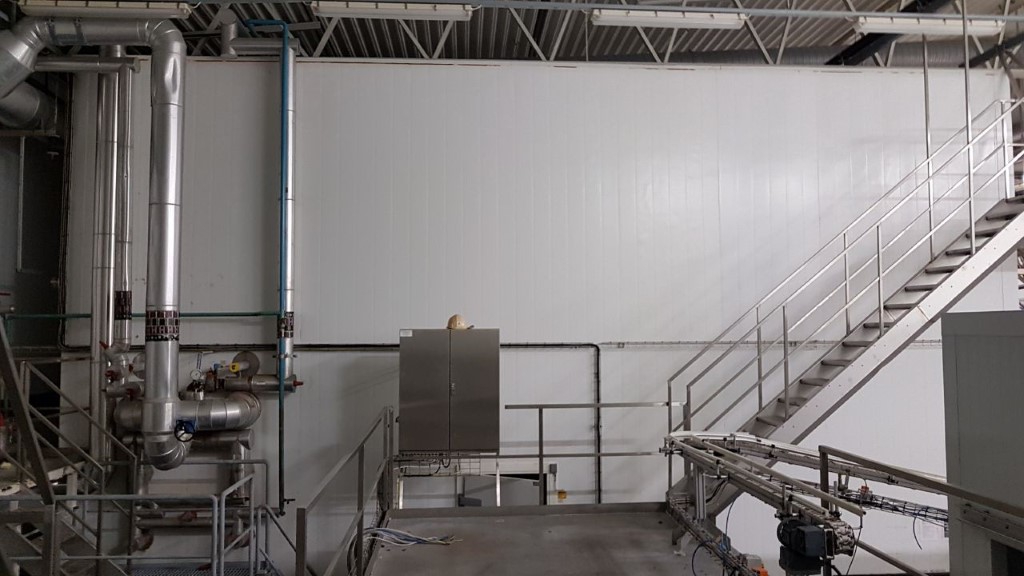

| Dimensions | 13840 mm x 7800 mm x 7300 mm |
