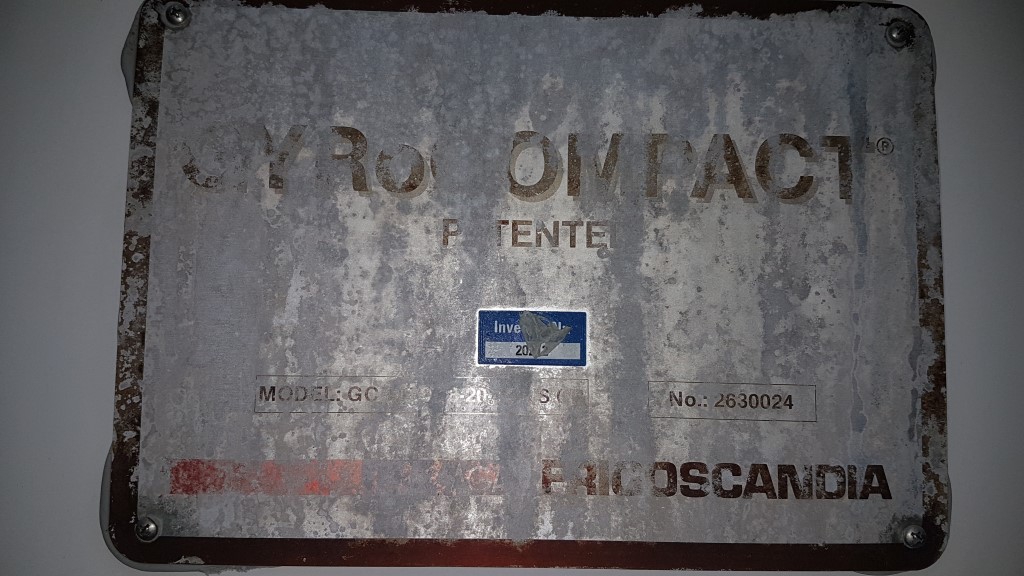

Frigoscandia GCM76-08-20-14 NS CR

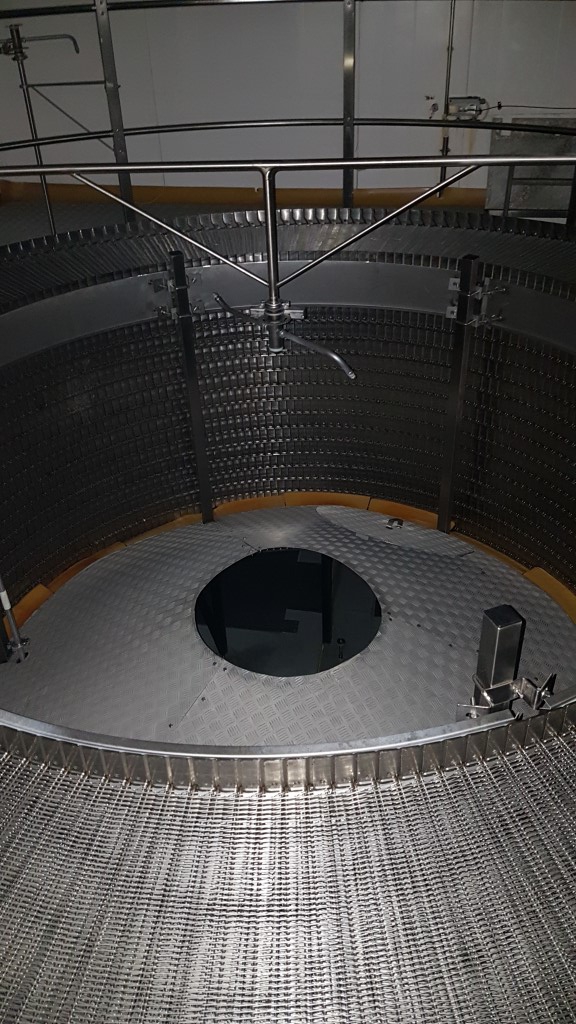

Spiral Freezer
2x Identical Frigoscandia GYRoCOMPACT M76

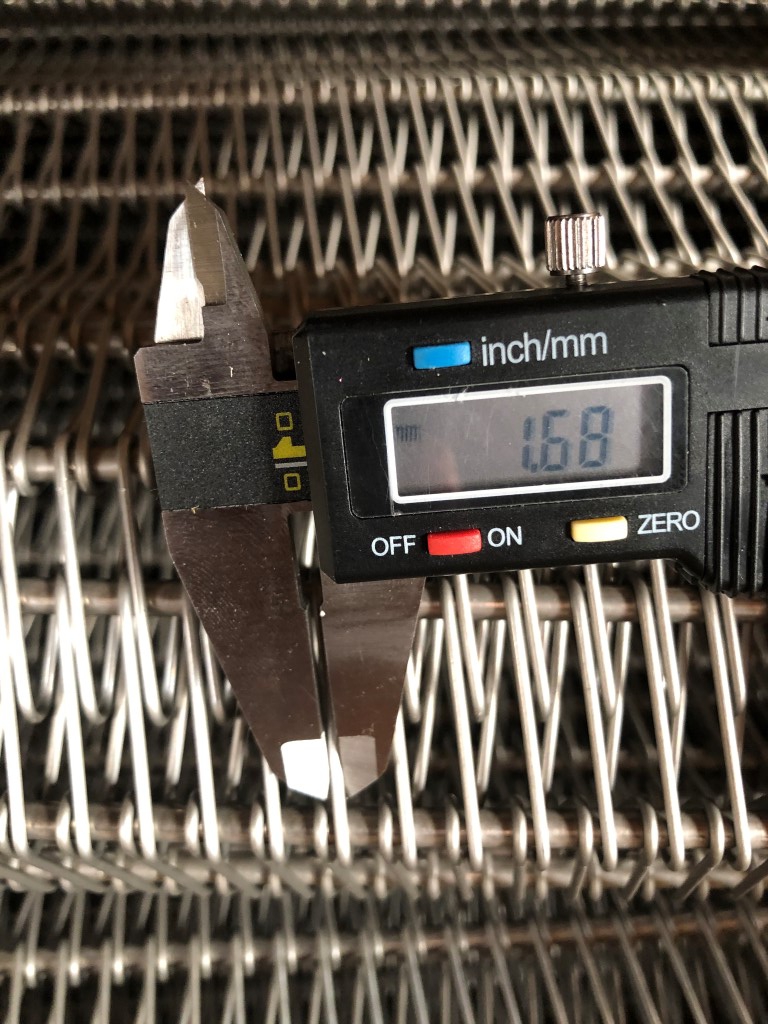

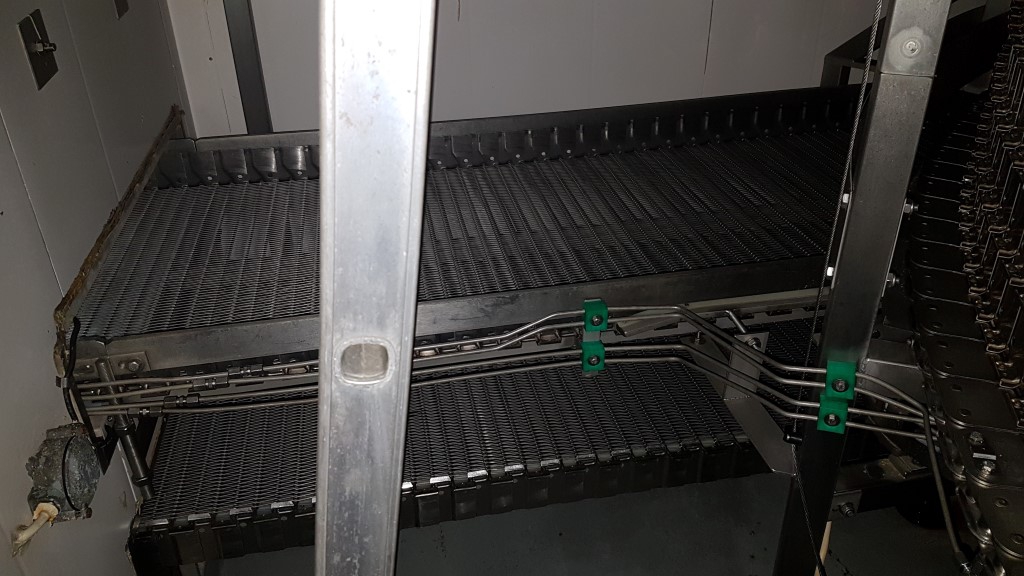

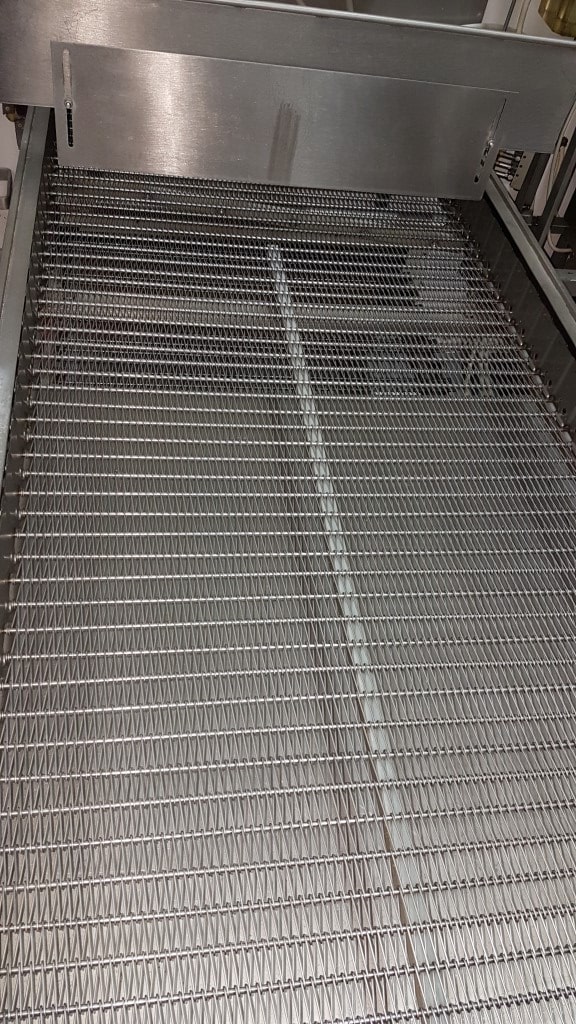

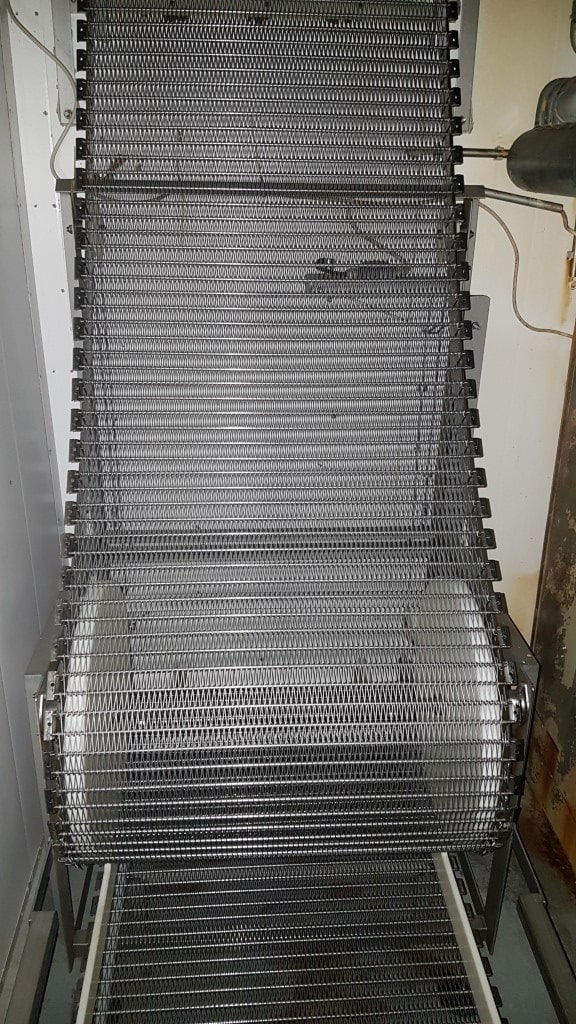

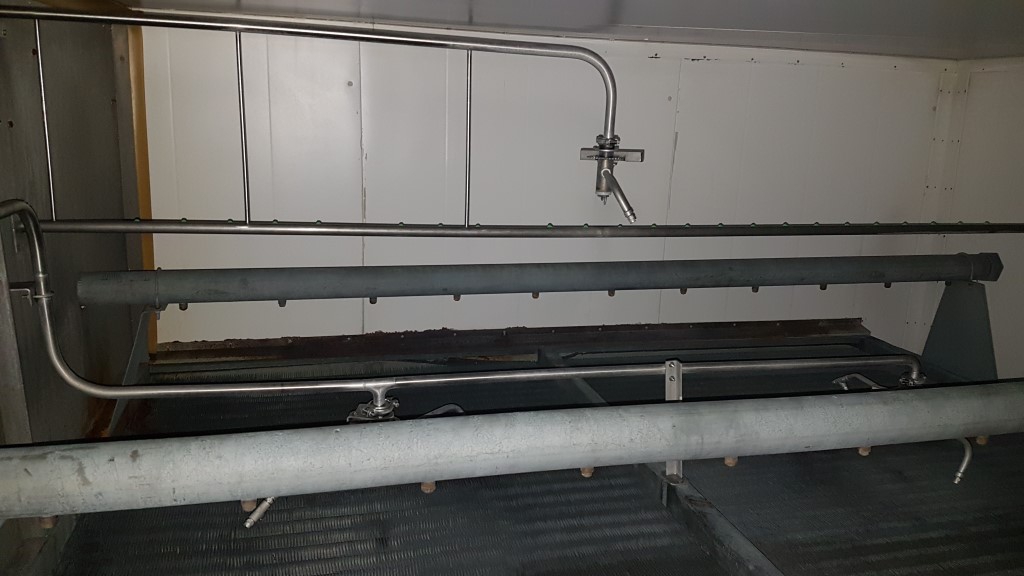

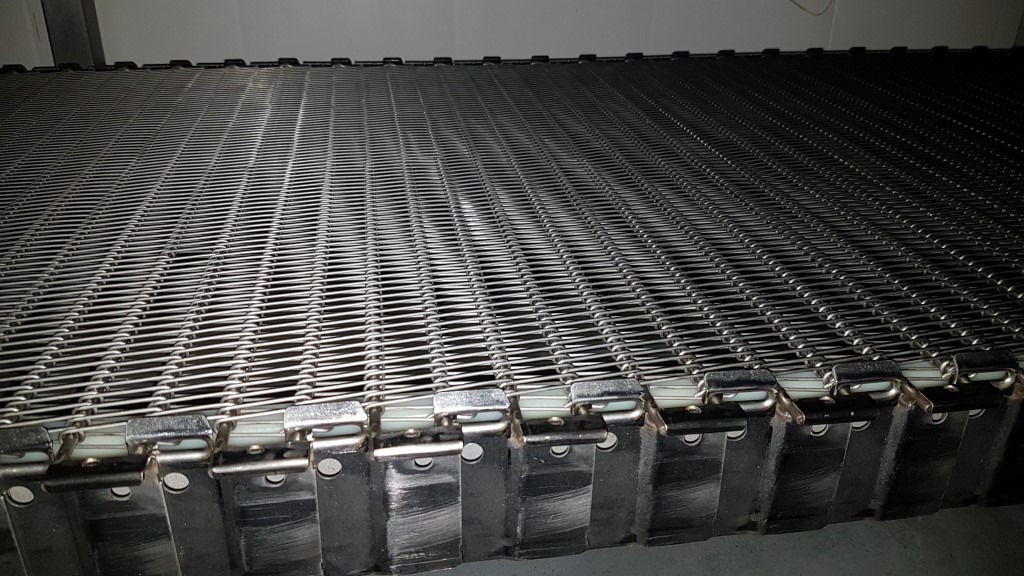

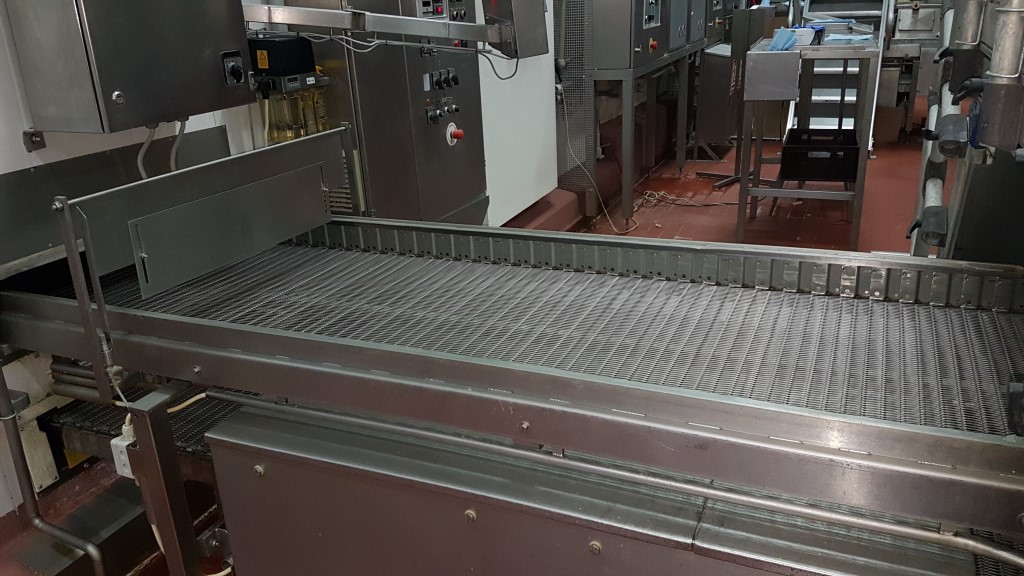

Belt type: M9-1.7, Including CIP system and belt washer, Delivered without wall- & ceiling panels
| Type | GCM76-08-40-16 NS-CR |
| Model | North-South, Clockwise Rotation |
| Year of Construction | 1992 |
| Tiers | 20 pcs. |

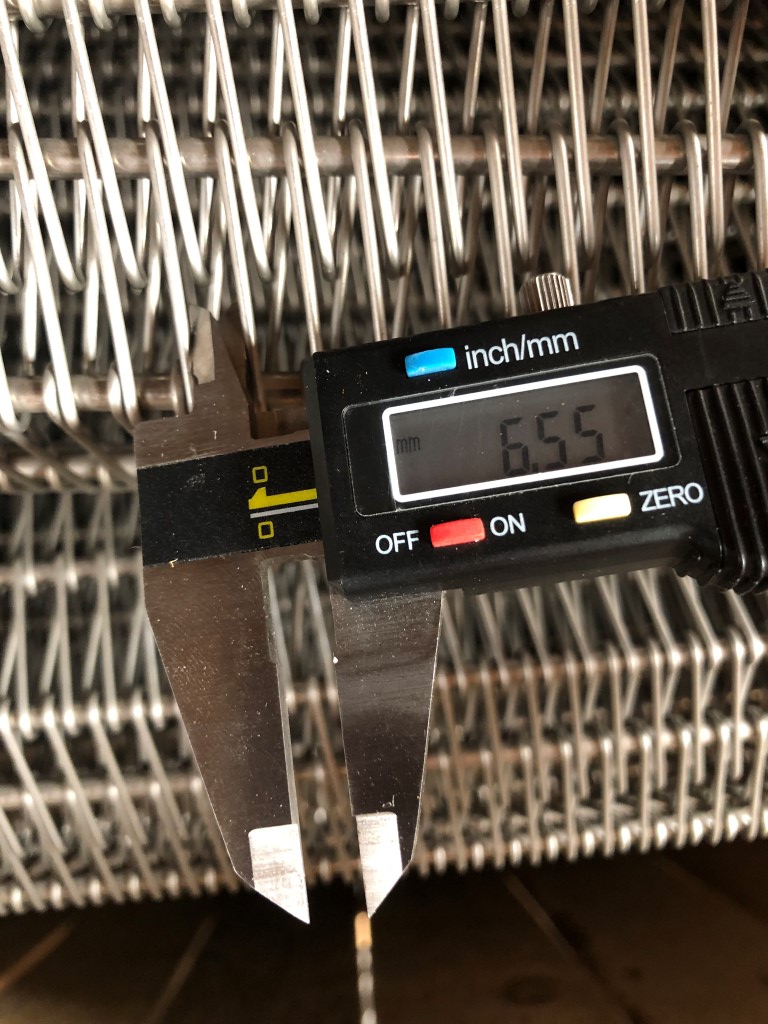

| Product gap | 65 mm |

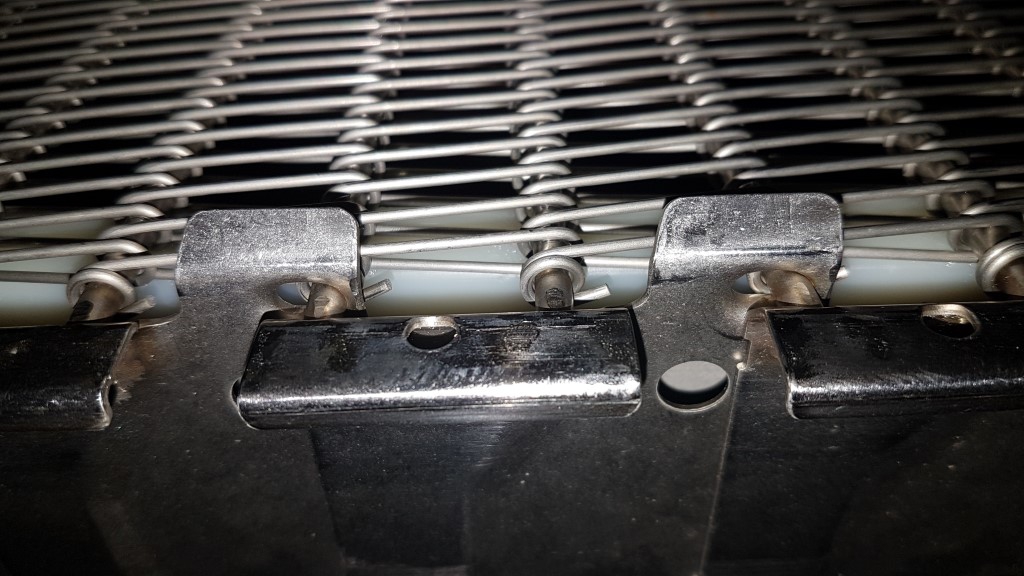

| Link height | 80 mm |
| Belt width | Gross: 760 mm / Nett: 715 mm |
| Belt length | 262 m |
| Capacity | 1500 kg/h (Hamburger 60°C, Ø87 x 16mm) |
| Infeed height | 760 mm |
| Outfeed height | 2590 mm |
| Refrigerant | R717/NH3/ammonia |
| Cooling power | max. 224 kW |

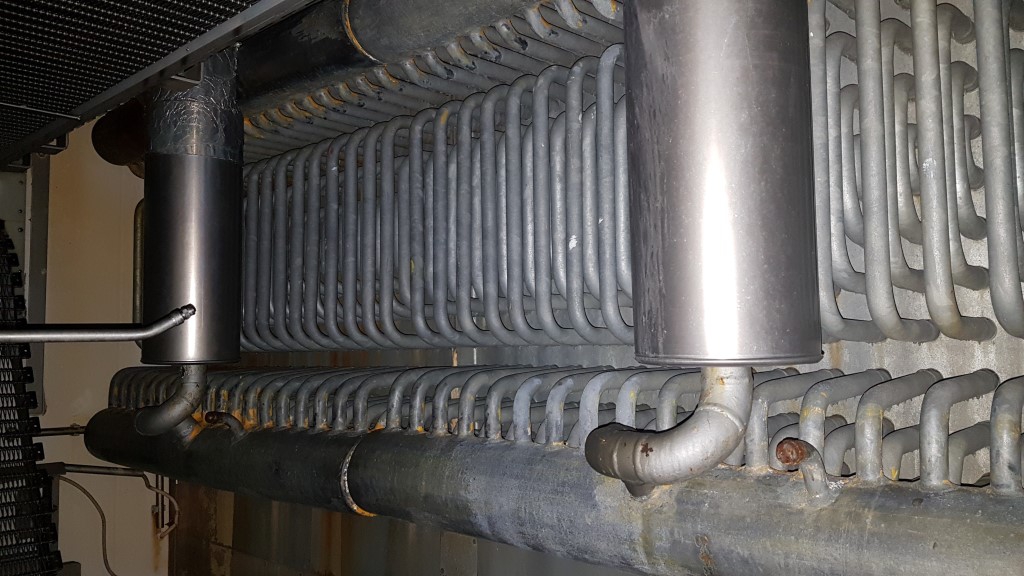

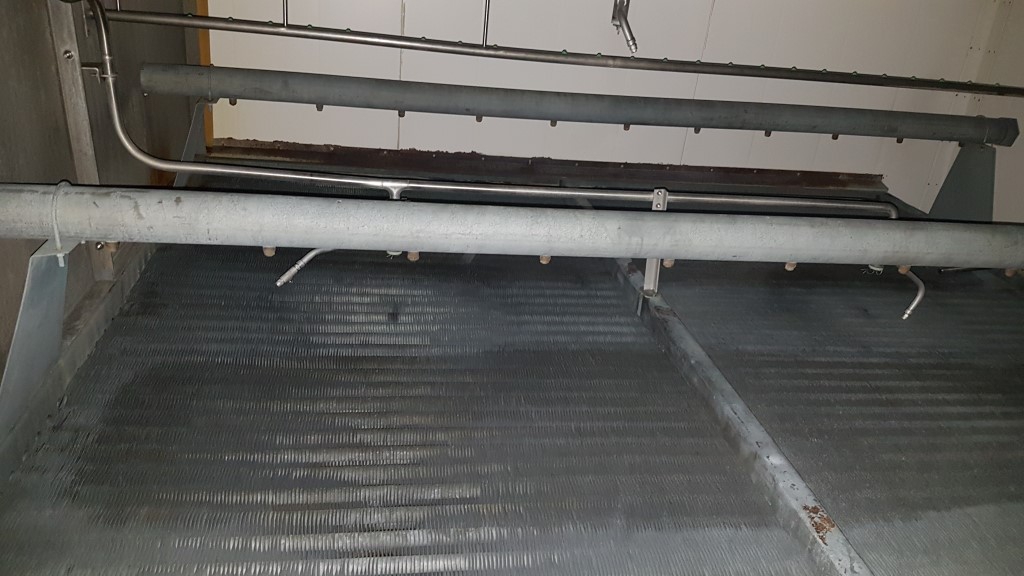

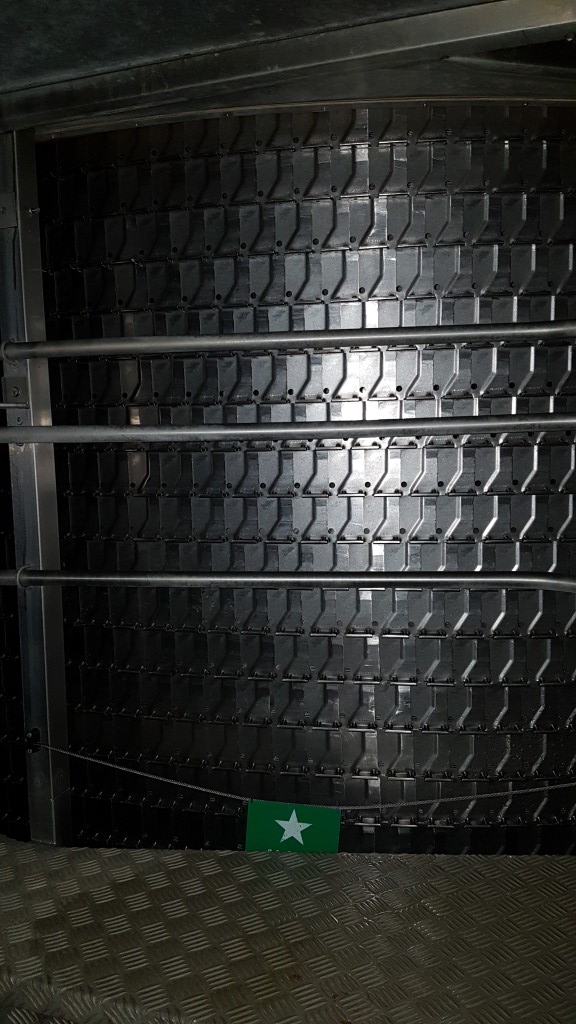

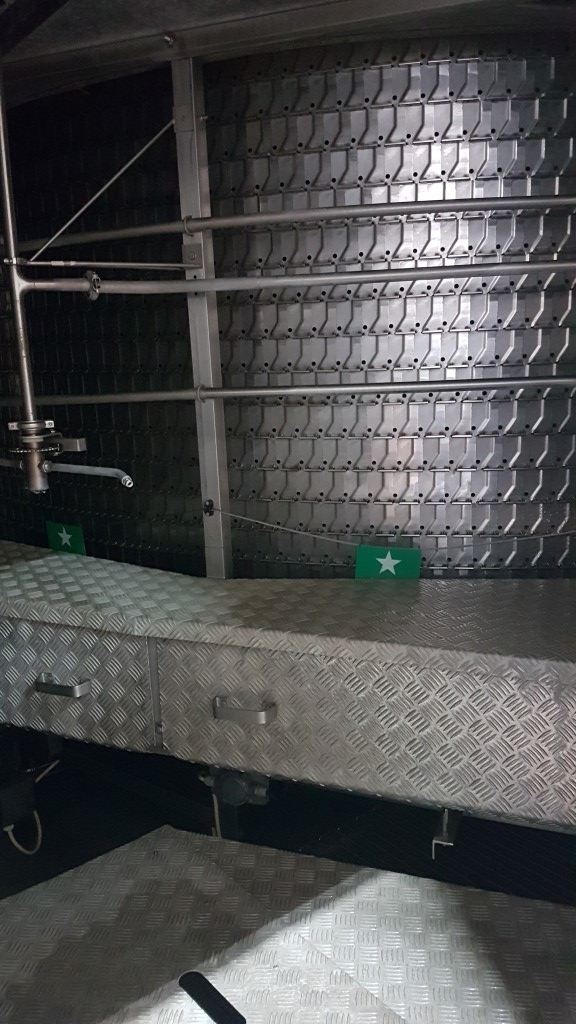

| Evaporator | 1400 m2 |
| Power | 3 x 400V / 50Hz / 43kW |
| Dimensions | 8600 mm x 4800 mm x 4110 mm |
