Carrier AQUA Force 30XW

Chiller

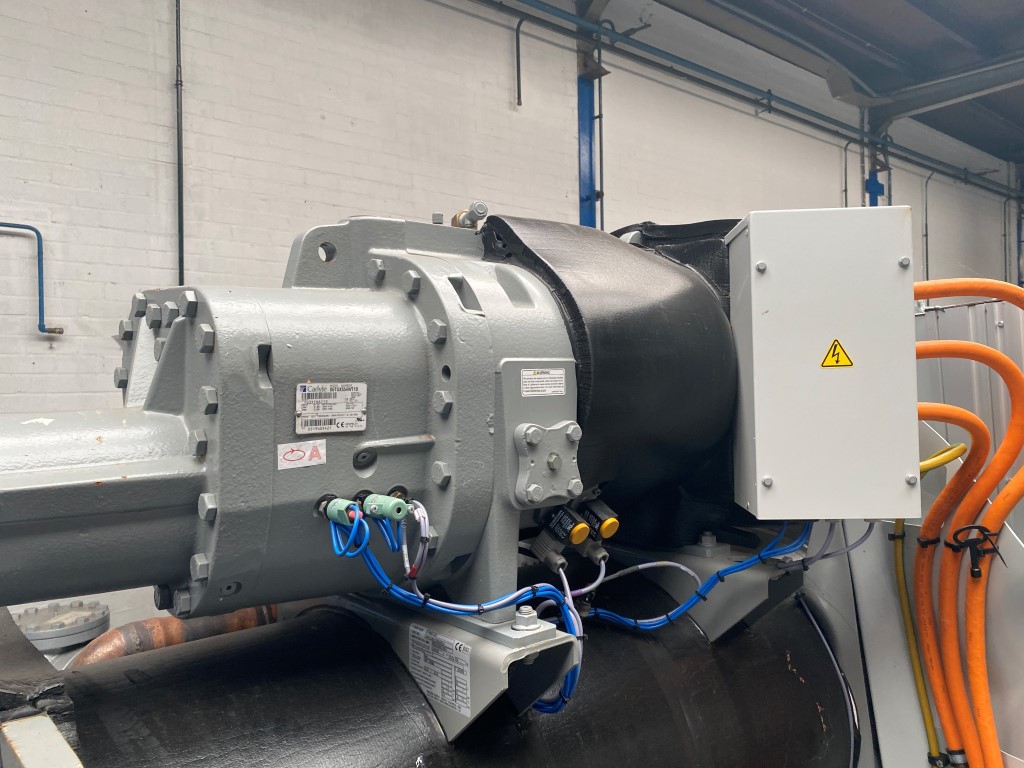

This Carrier AQUA Force 30XW-V1280A009 –VAR18 has minor transport damage to the electrical cabinets. No mayor items are damaged. Latest model Chiller driven by two VSD Thunderbolts Screw compressor blocks.

We offer this unit for sale as it is or completely restored. The new Thunderbolt twin rotor Compressors are specially designed for VSD Drive, the oversized bearing construction, advanced Lubrication system together with additional oil separator in the condenser, the sound reducer in the discharge line realizes compact & effective trouble free working and a long life of operation with a very low energy consumption.

Condition by Heating full load – 1428 KW COP 4,61 ( Evaporator entry / exit water temperature 10°C/7°C- condenser entry / exit water temperature 40°C/45°C, fouling factor evaporator / condenser 0M²K/W)

Condition by cooling full load – 1305 KW COP 5,50 ( Evaporator entry / exit water temperature 12°C/7°C- condenser entry / exit water temperature 30°C/35°C, fouling factor evaporator / condenser 0M²K/W)

Brand Carrier
Type 30XW-V1280A009-VAR18
Variety Screw
Year of Construction 03-2019
Refrigerant R134a
Capacity control
On steel base frame
Pressure safety switches Hp/Lp/Op

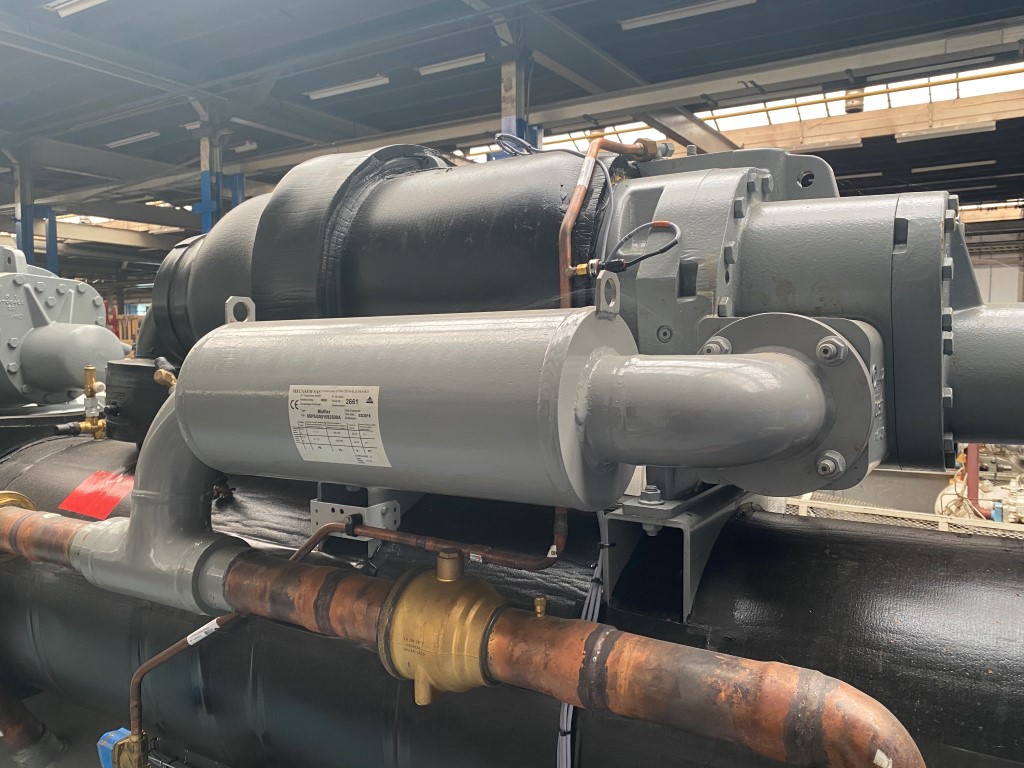

Oil separator
Oil filter Yes, single oilfilter
Sight Glass
Dimensions 4730 mm X 1255 mm X 1997 mm
Weight 7400 kg
Amount in stock 1
