Hemken WF19-24-1
Spiral Freezer

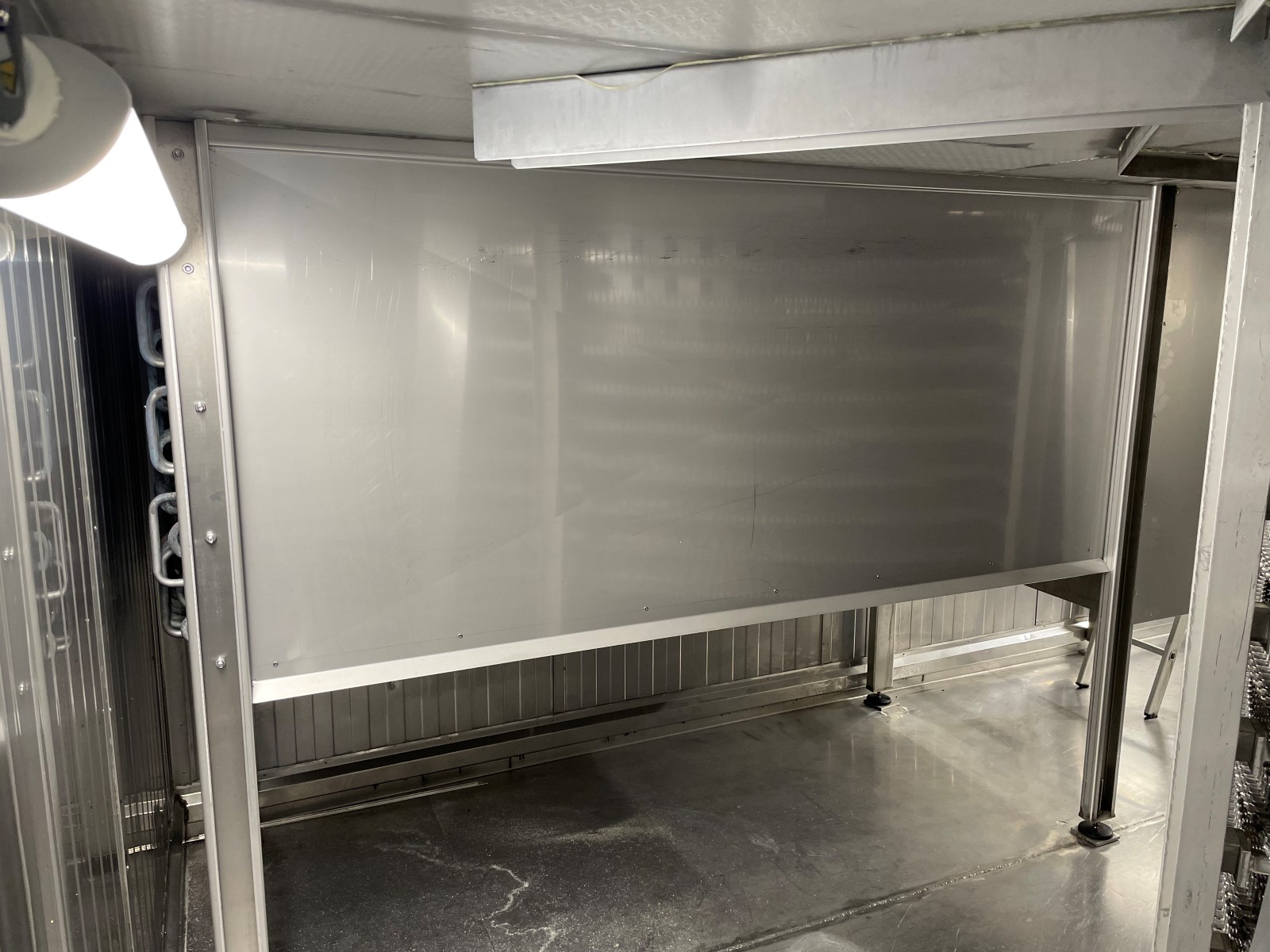

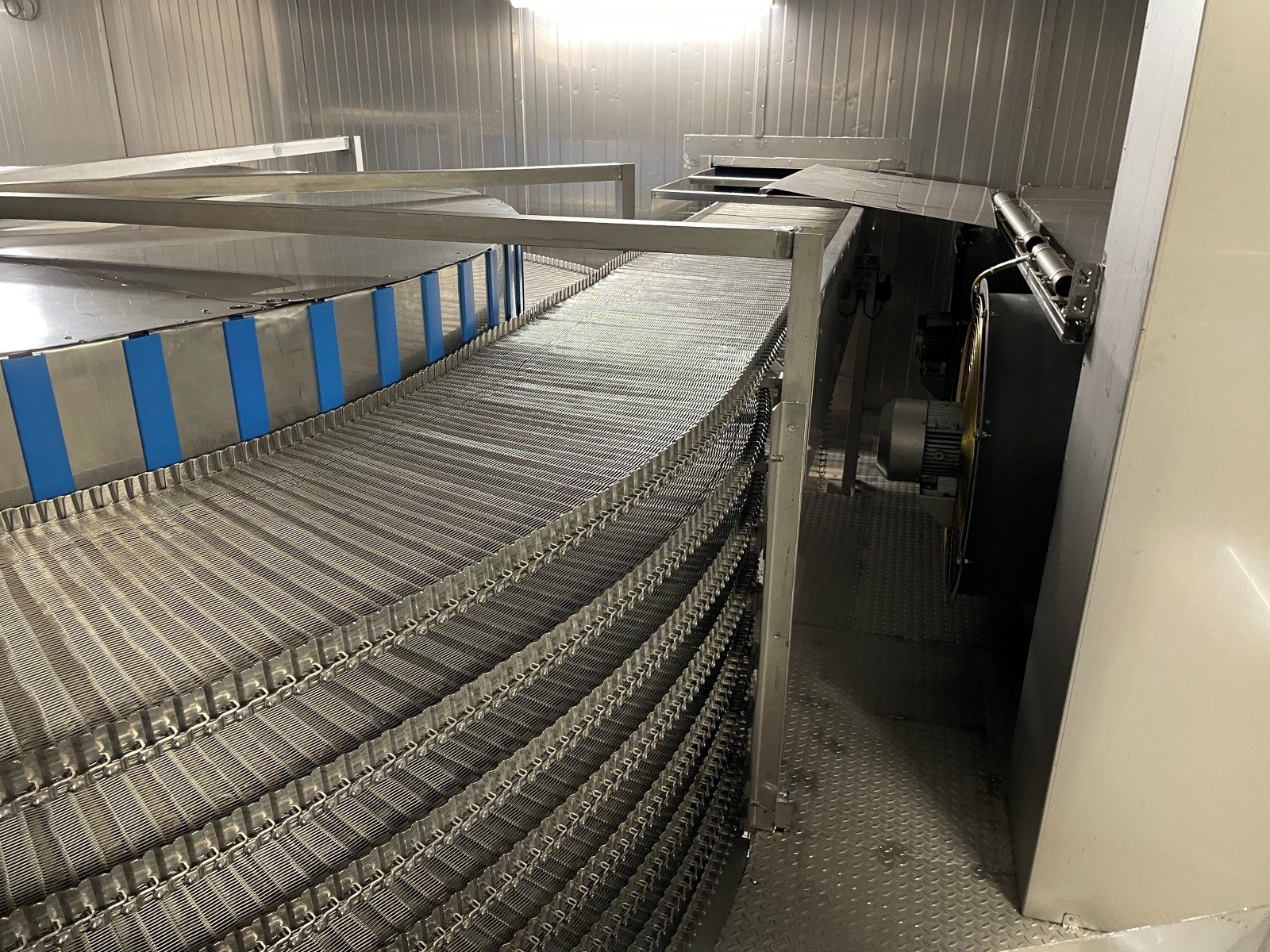

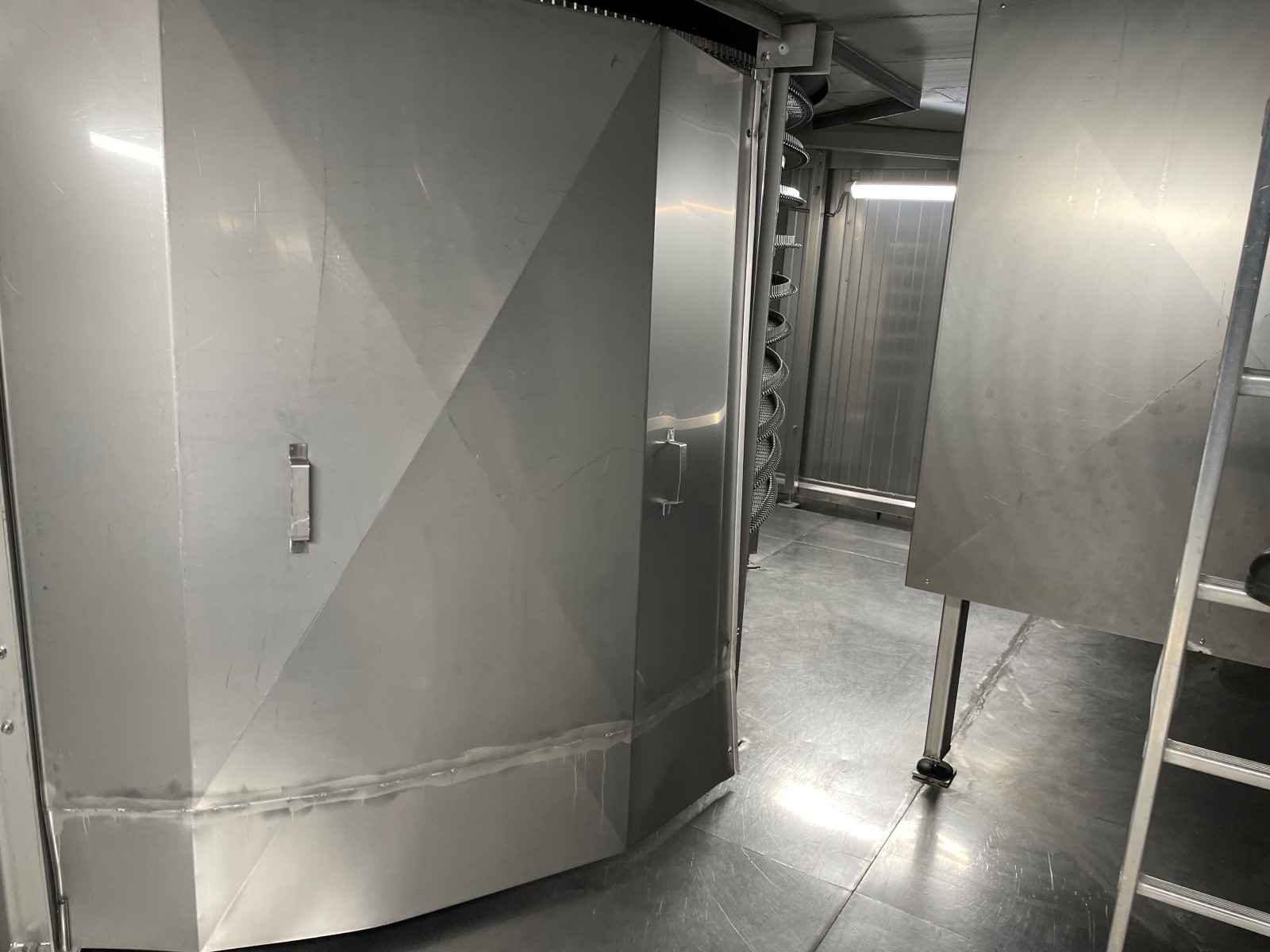

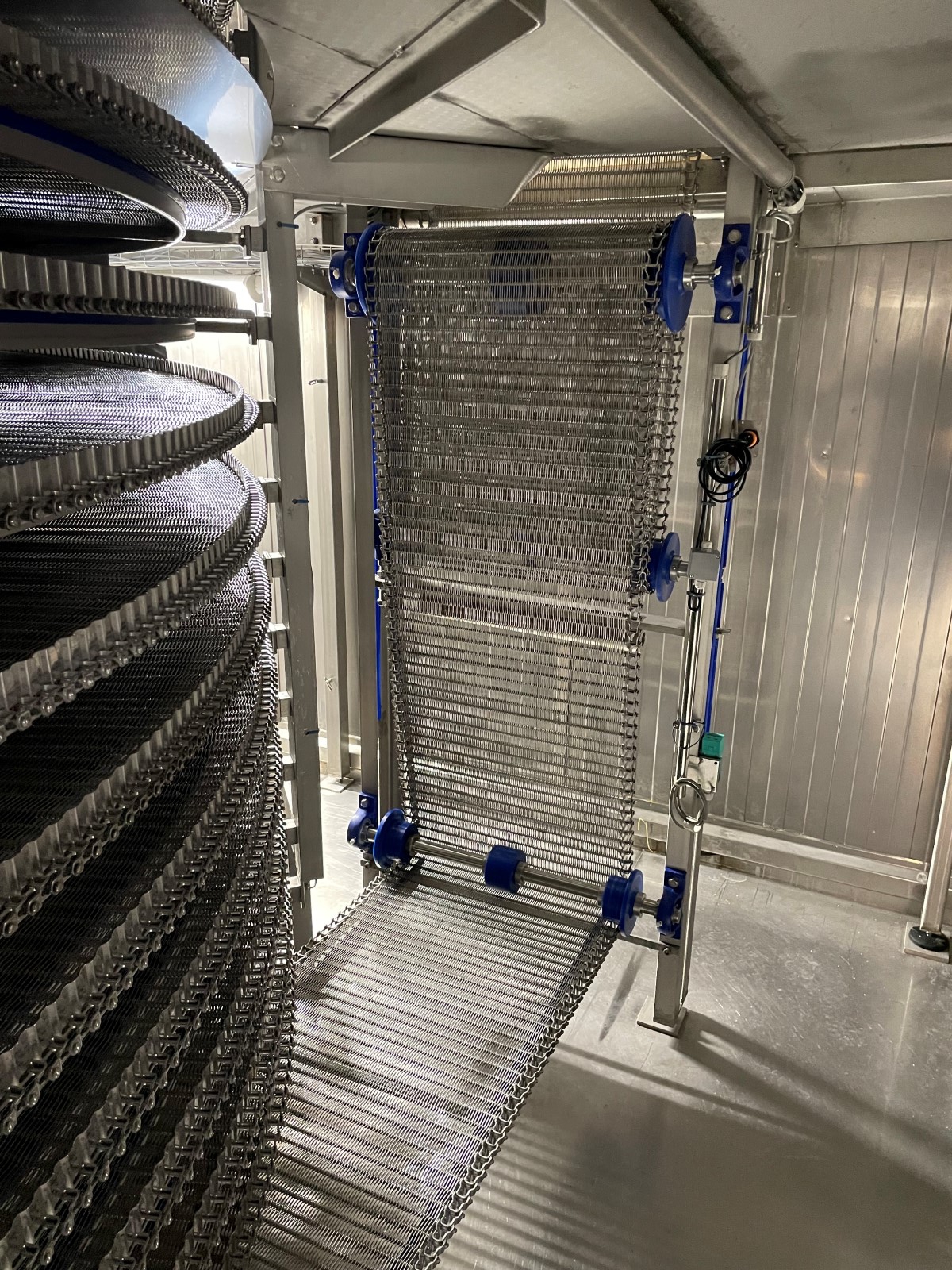

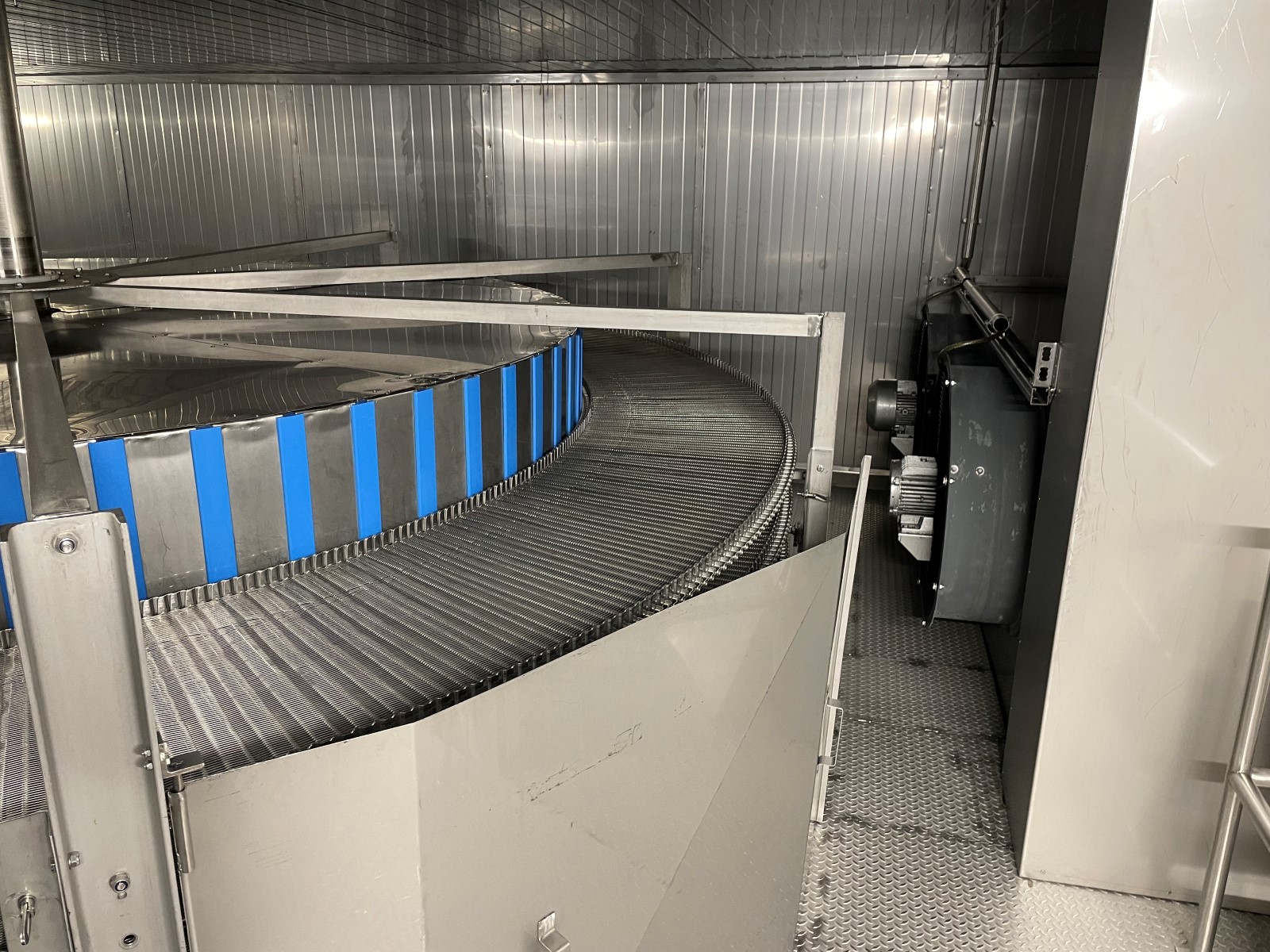

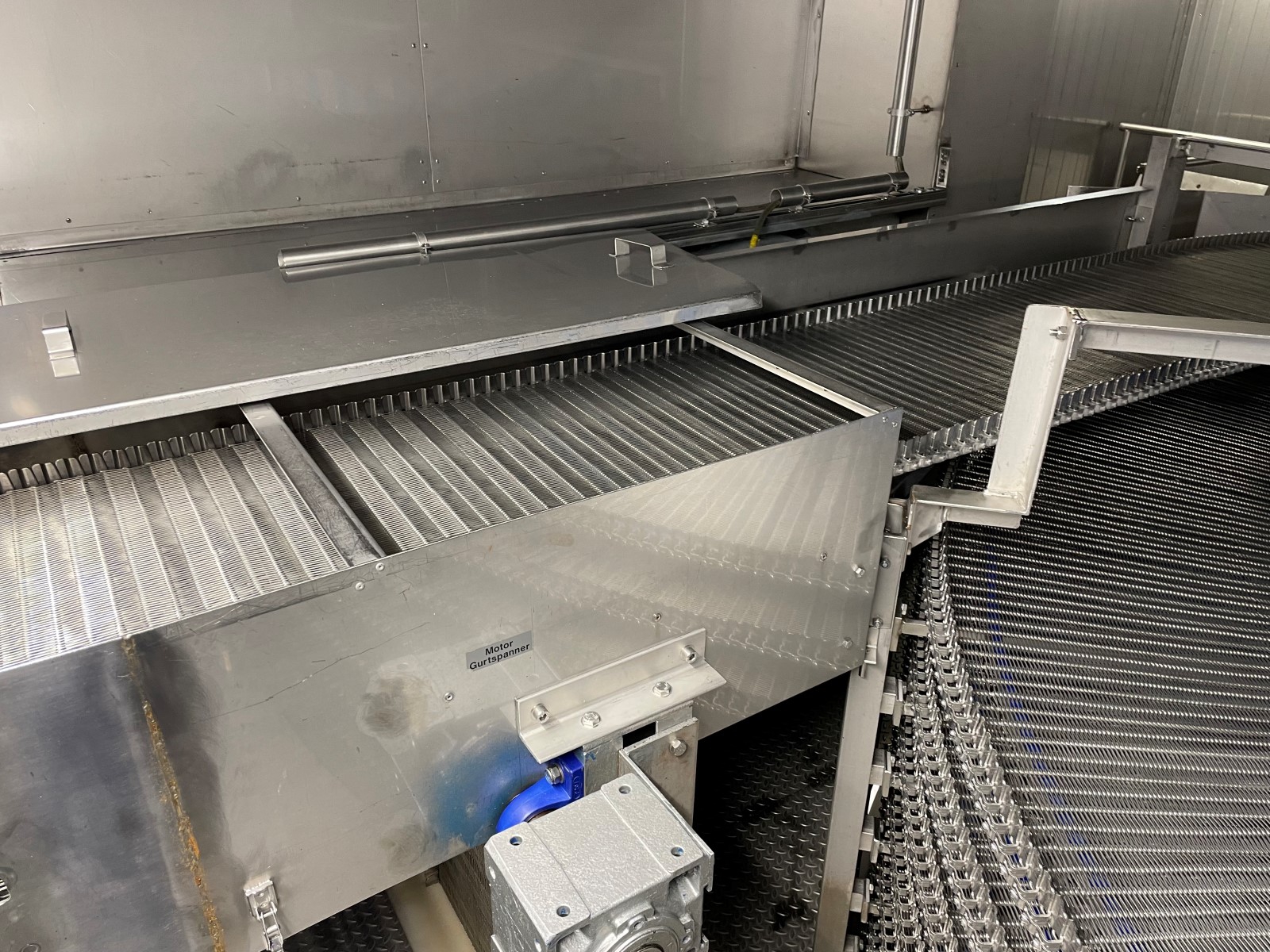

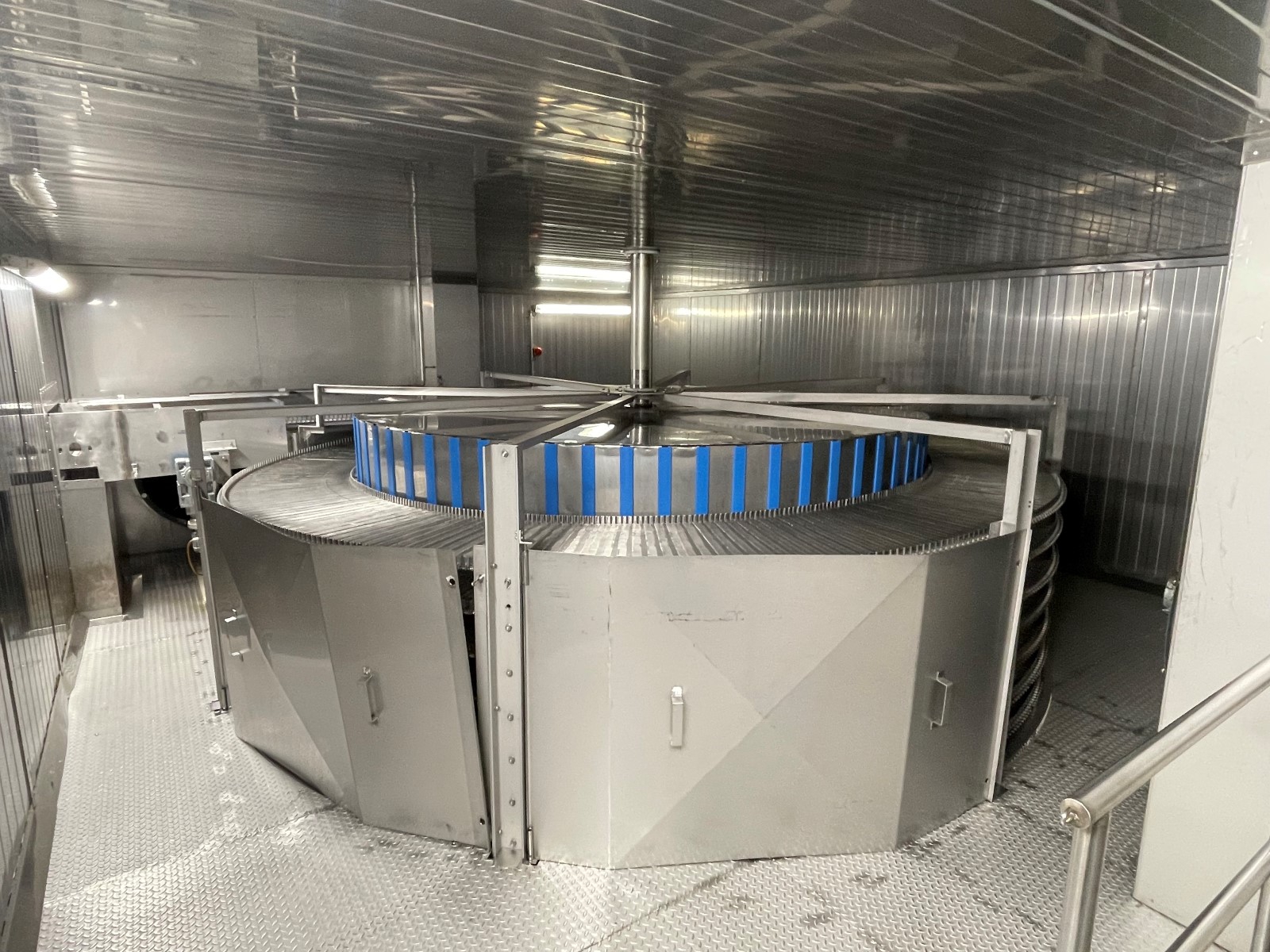

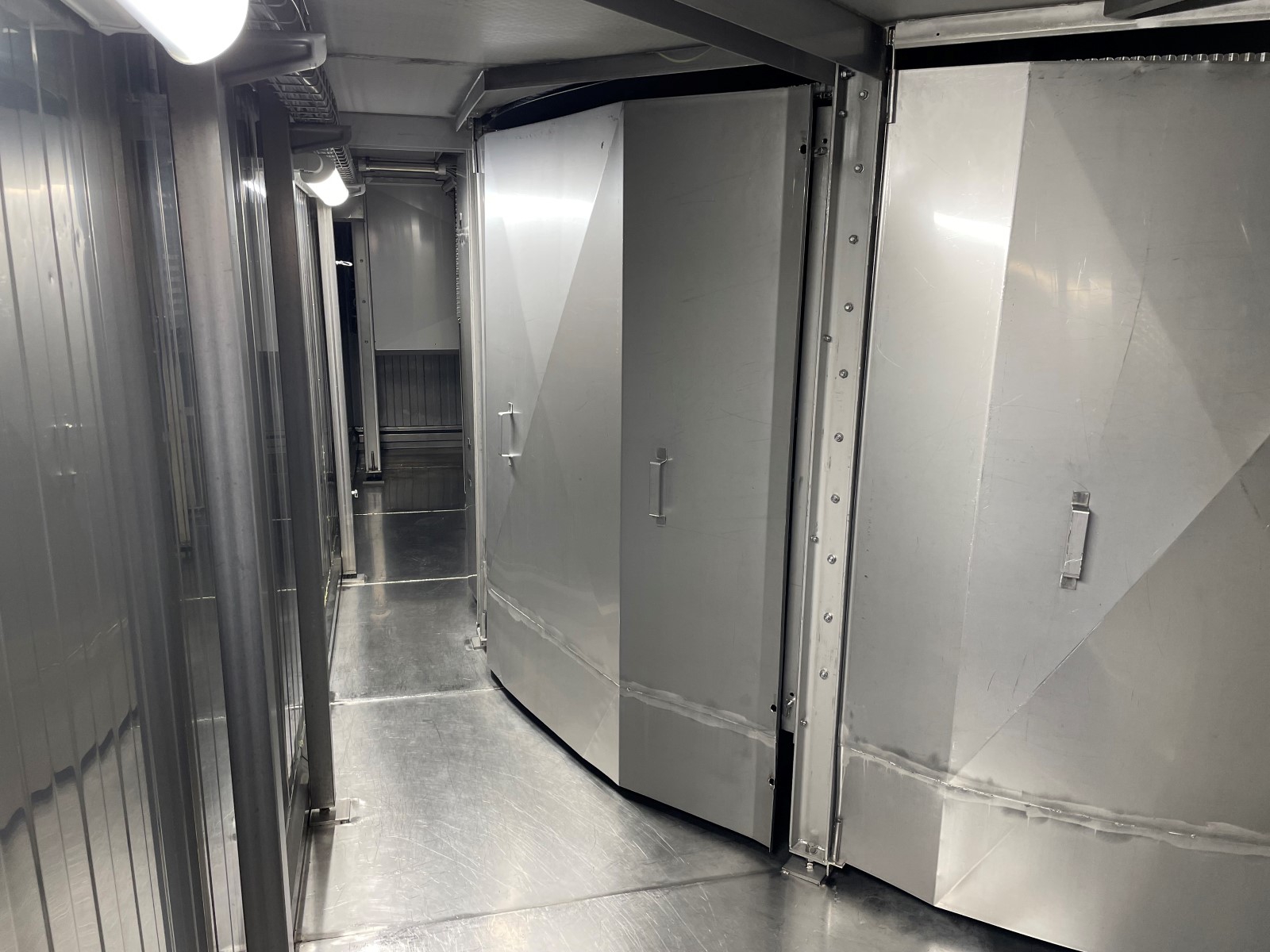

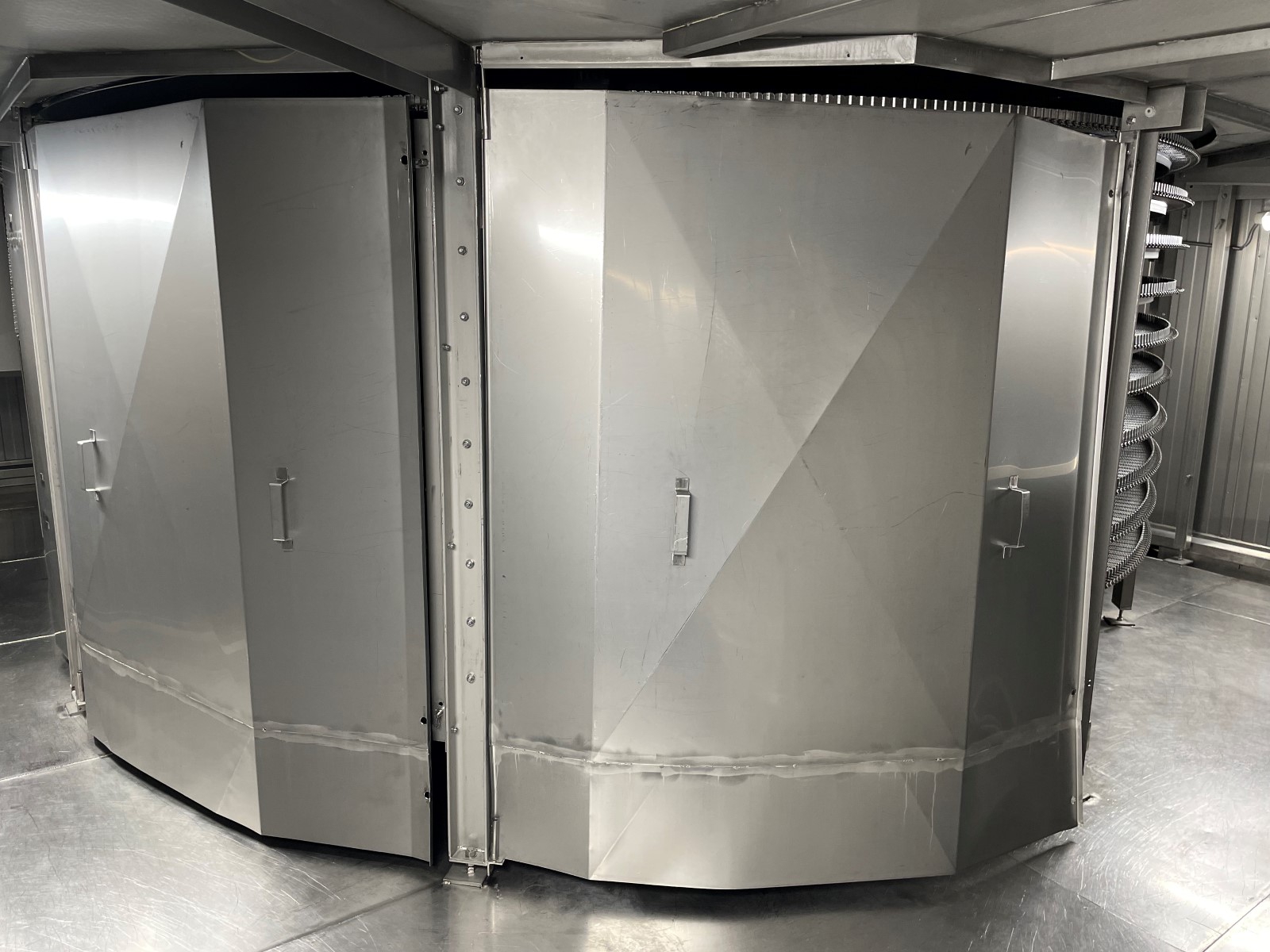

Hemken WF19 spiral freezer
Hemken spiral freezer previously used for fried Turkey Schnitzel production
| Brand | Hemken |
| Type | WF19-24-1 |
| Model | North-South, Counter Clockwise Rotation |
| Year of Construction | 2002 |

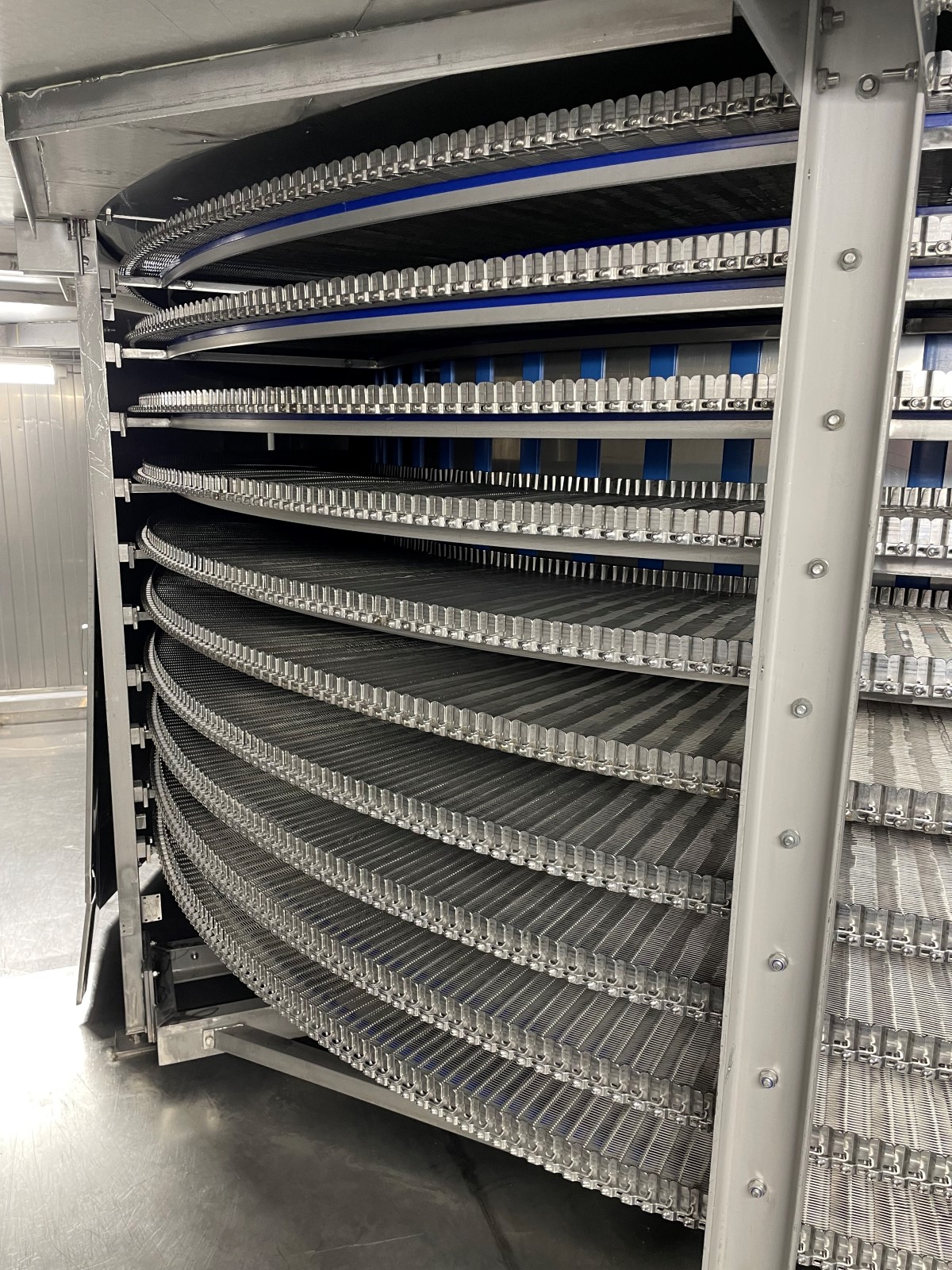

| Tiers | 16 pcs. |
| Product gap | 100 mm |
| Link height | 25 mm |

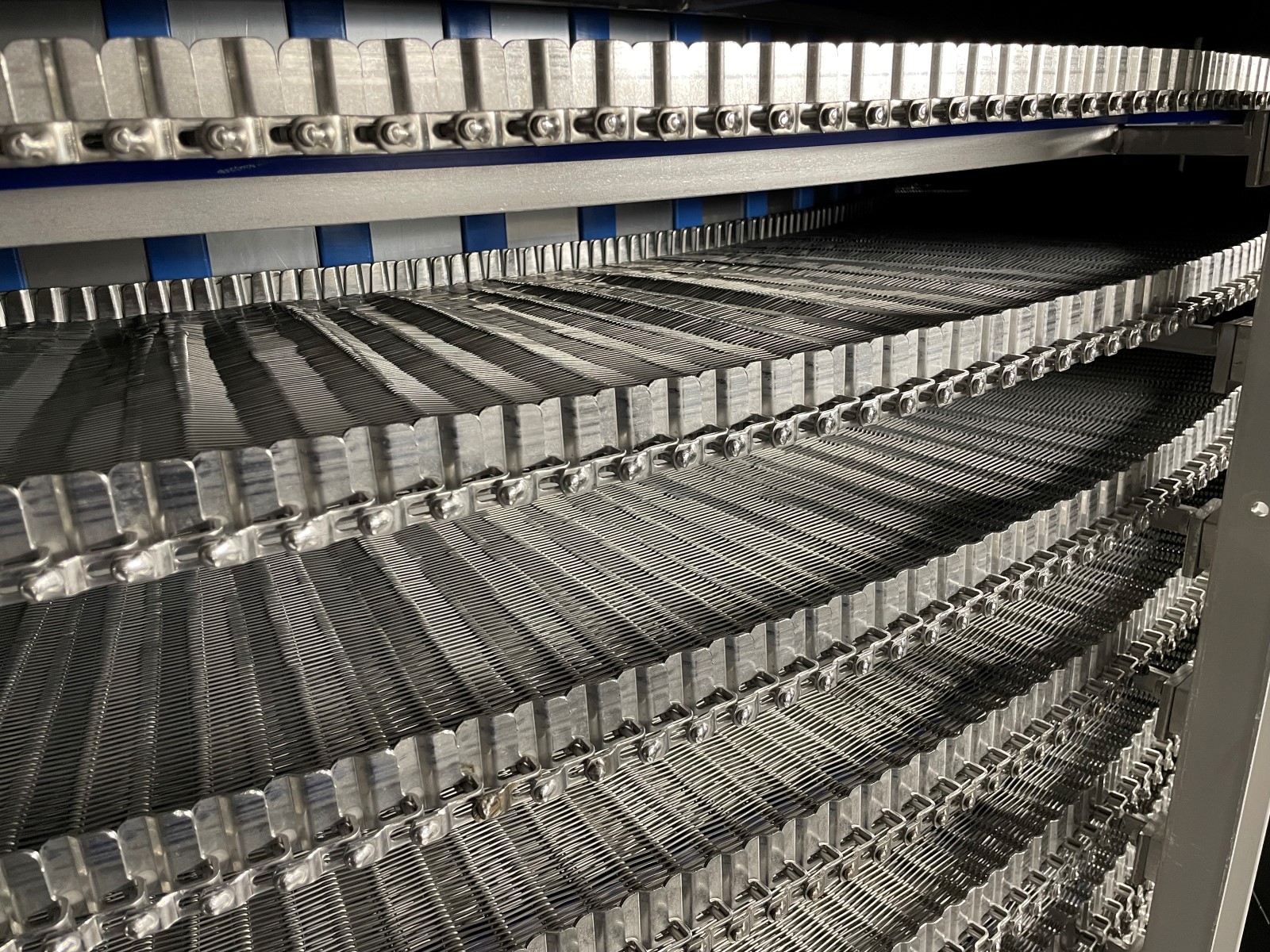

| Belt width | Gross: 609 mm / Nett: 535 mm |
| Belt length | 218,5 m (usable) |
| Capacity | 500 Kg/h on 180 gr. fried Turkey fillet |

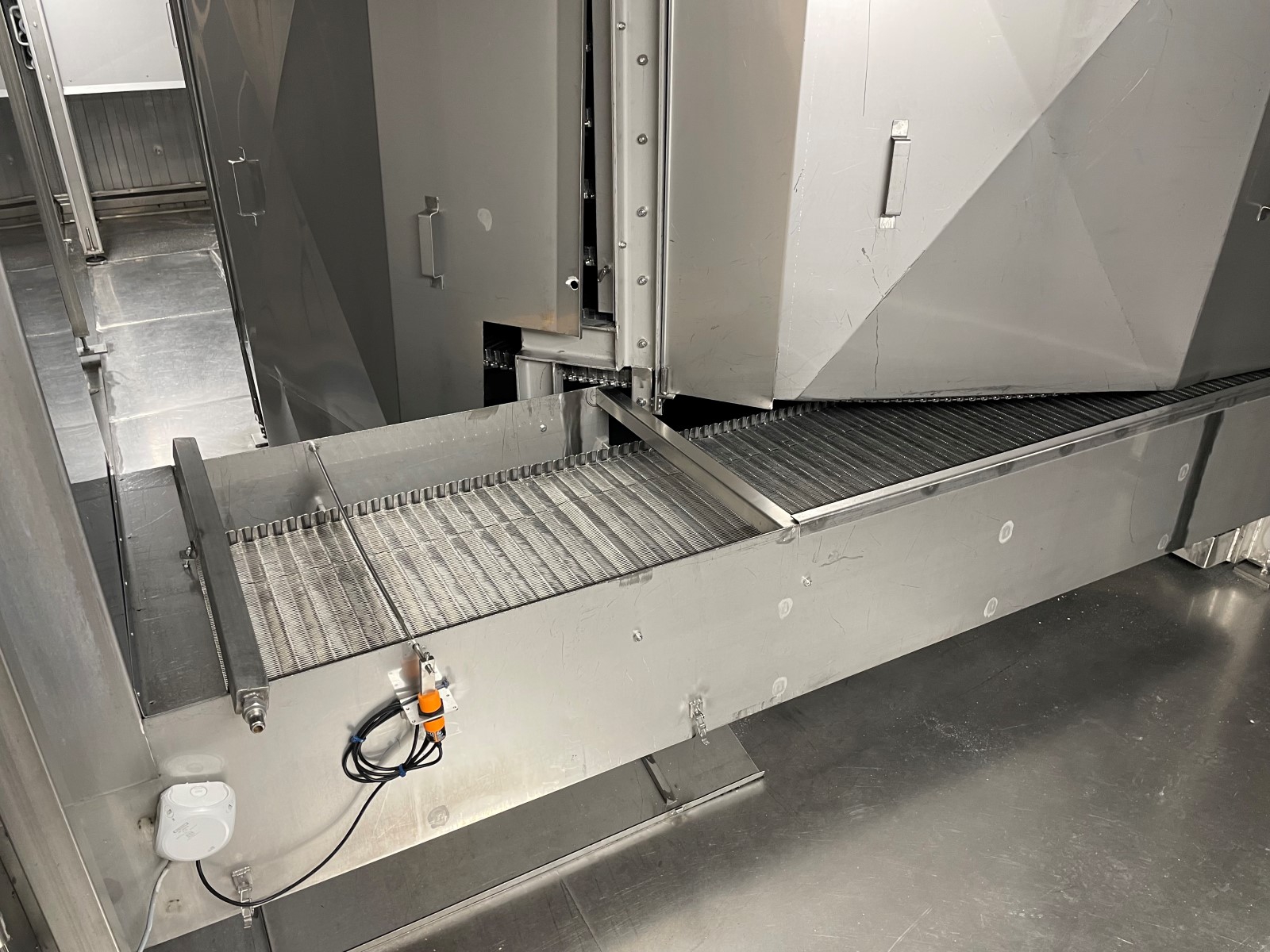

| Infeed height | 800 mm |
| Outfeed height | 3300 mm |
| Refrigerant | R404a (Possible to change over to other refrigerant) |
| Cooling power | 130 kW |

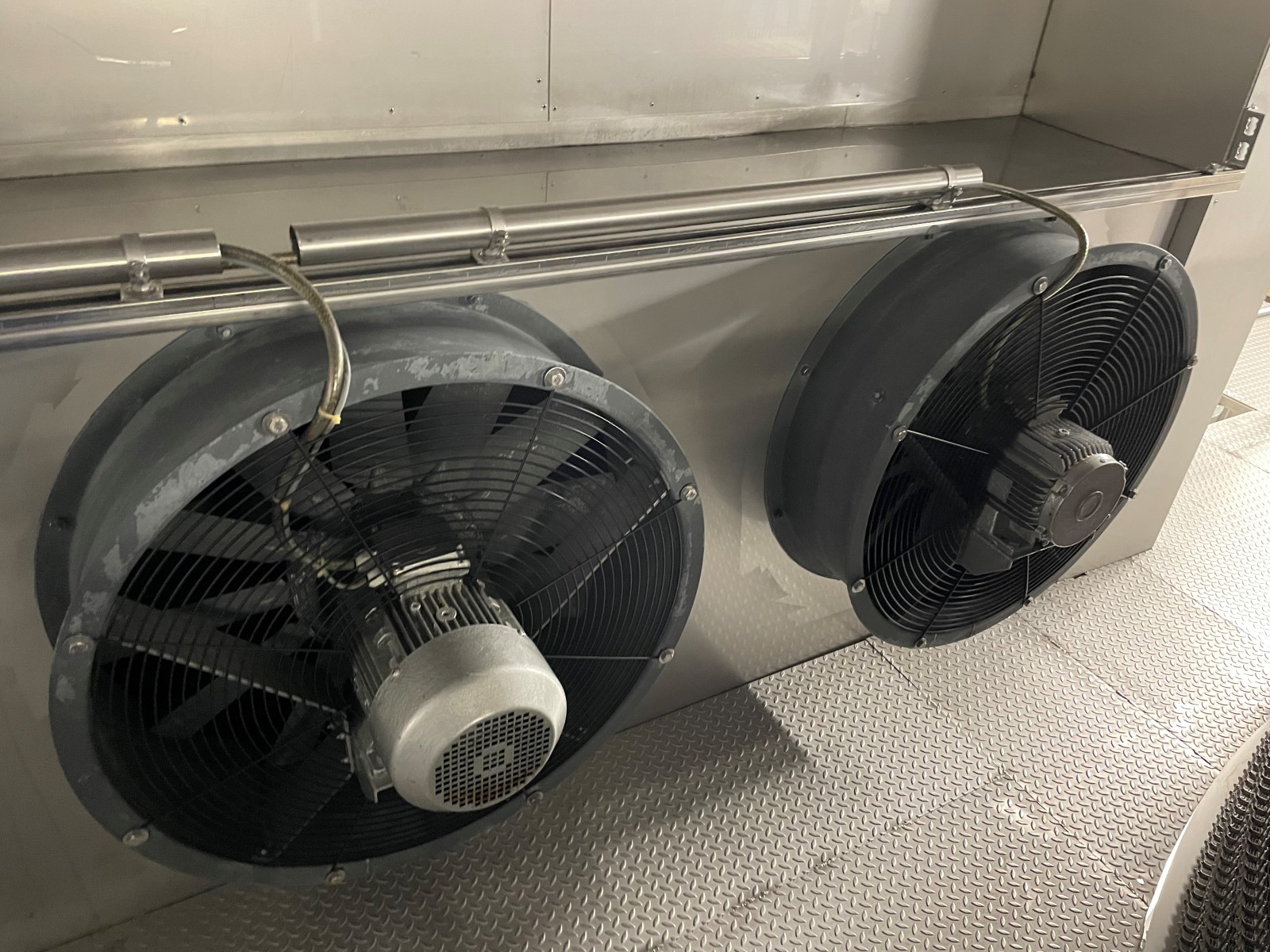

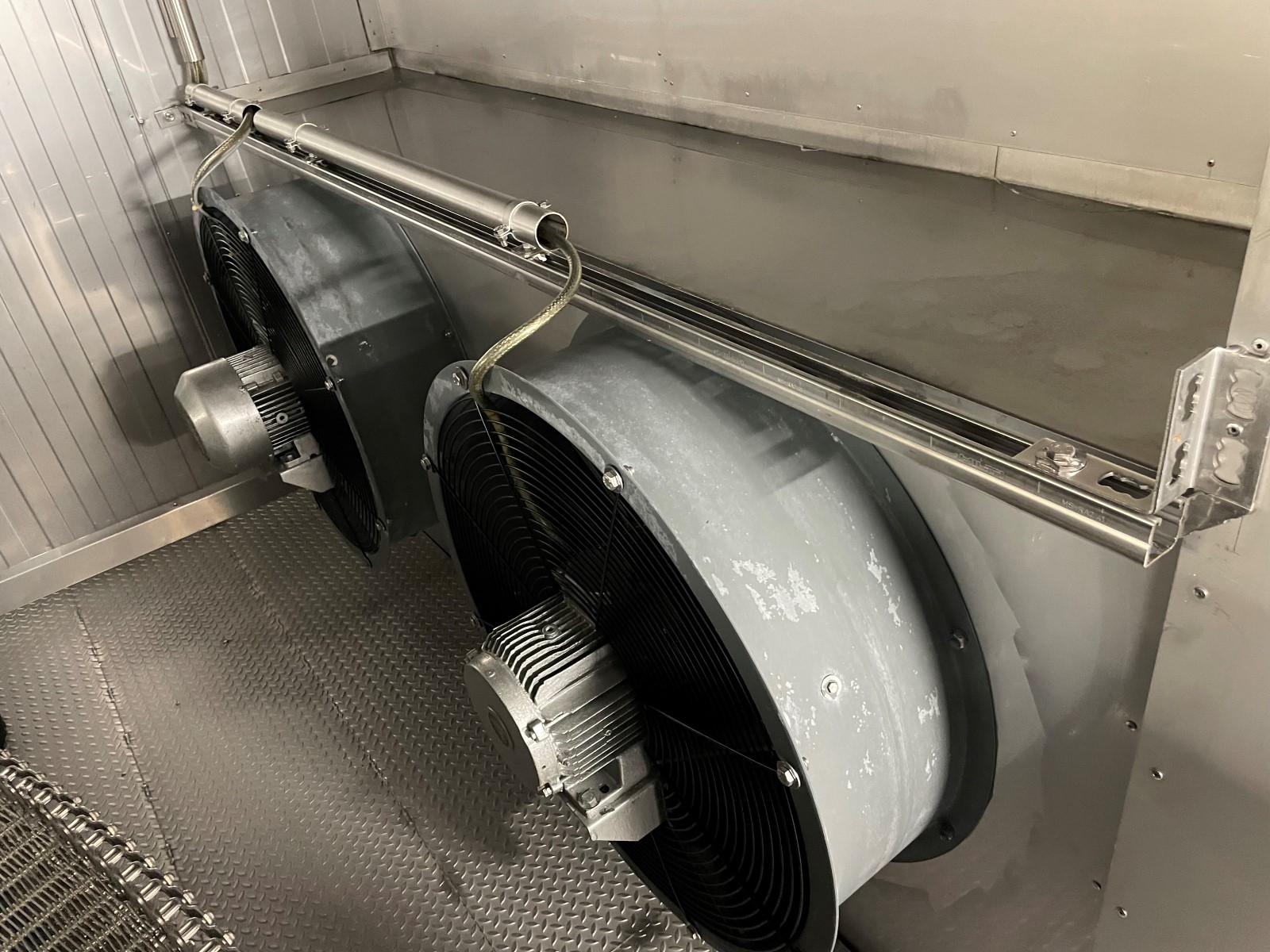

| Number of fans | 4 |
| Dimensions | 8250 mm x 6000 mm x 4500 mm |
