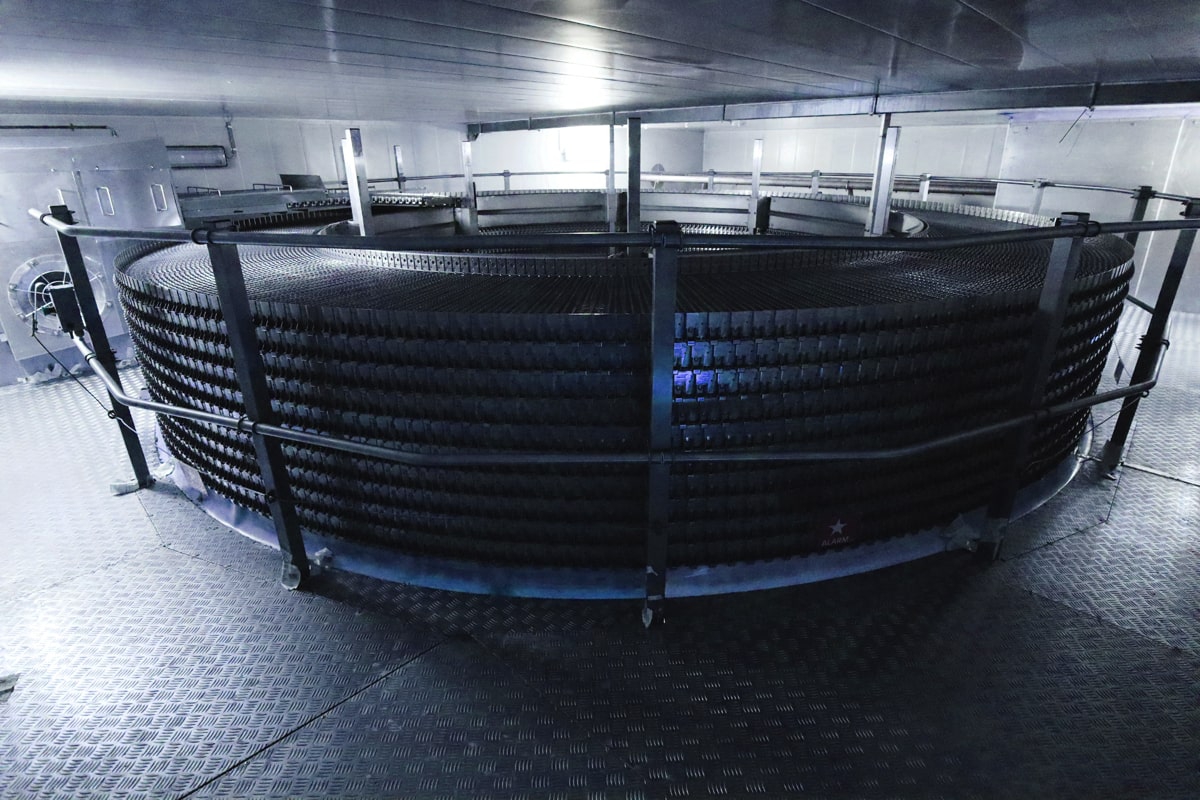

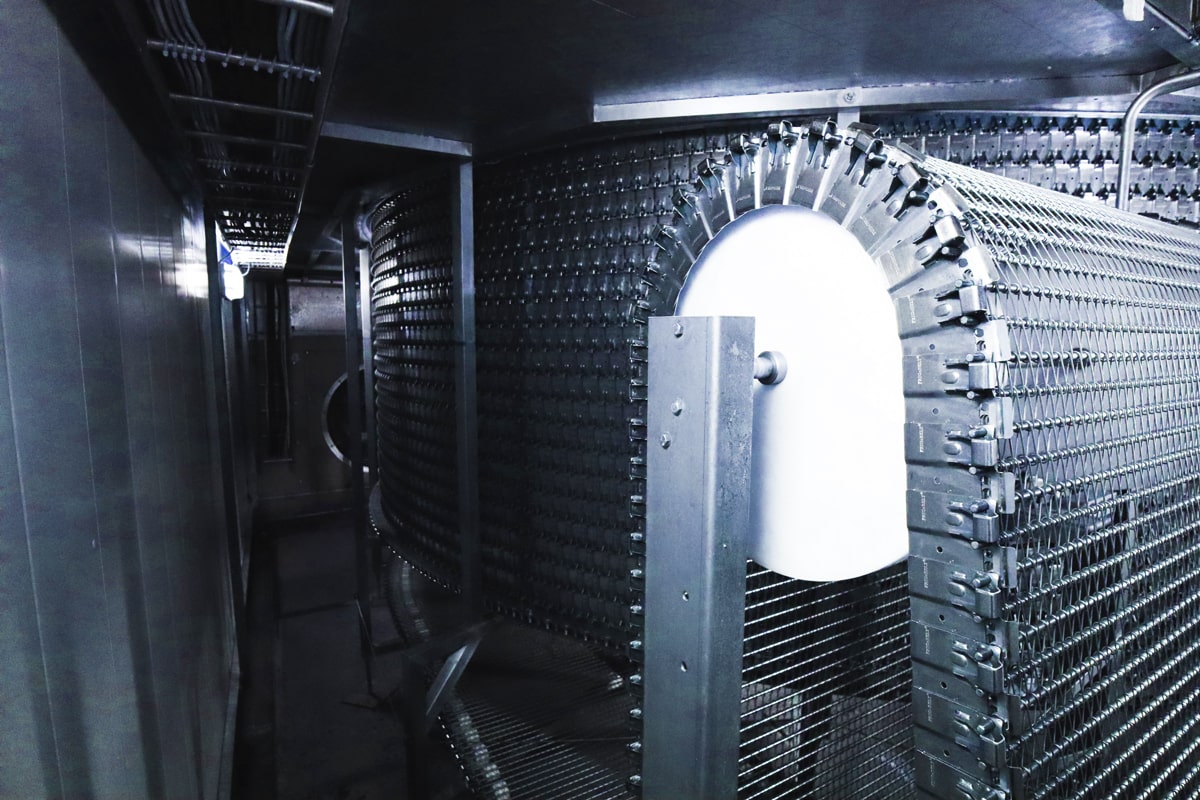

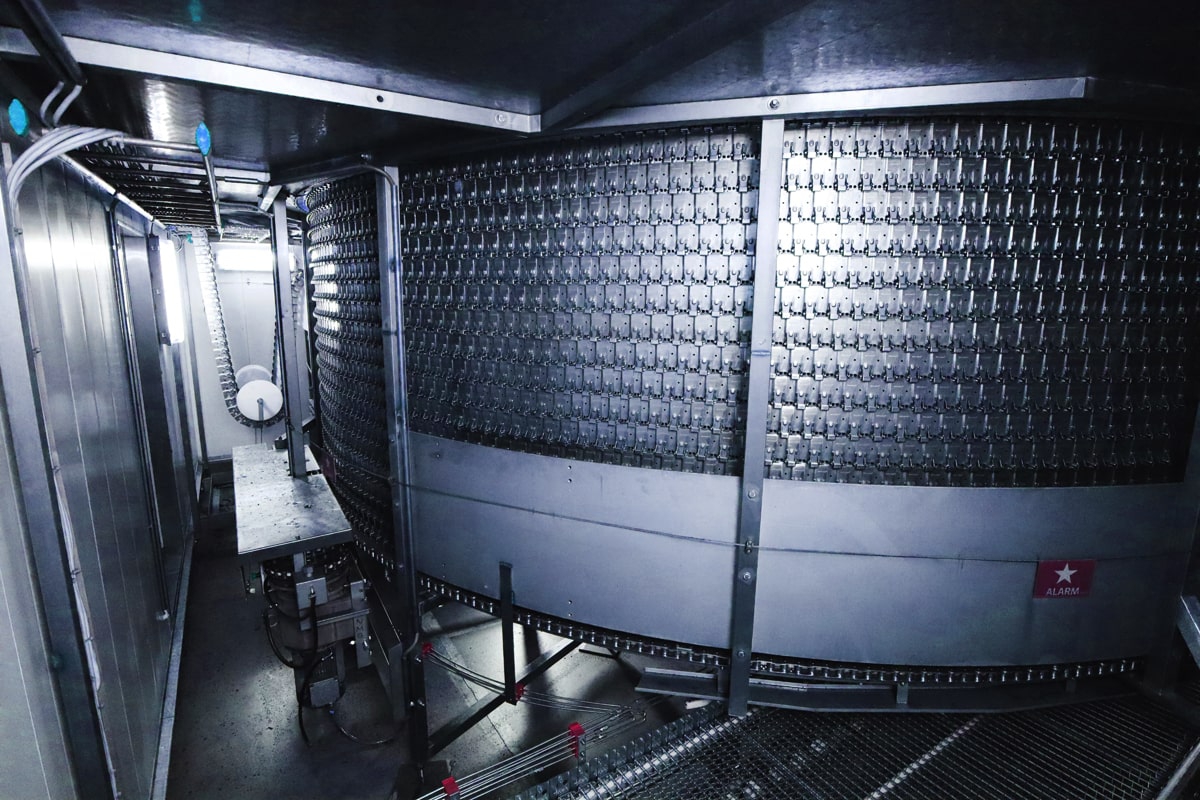

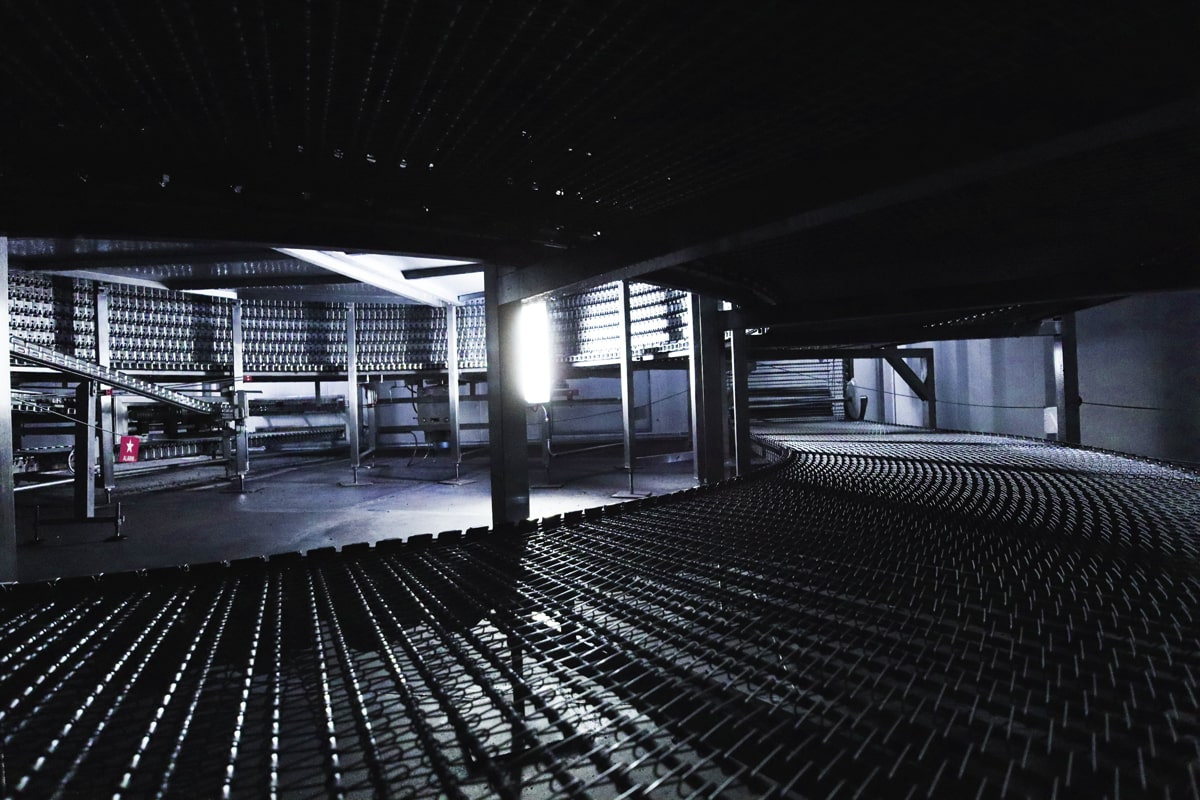

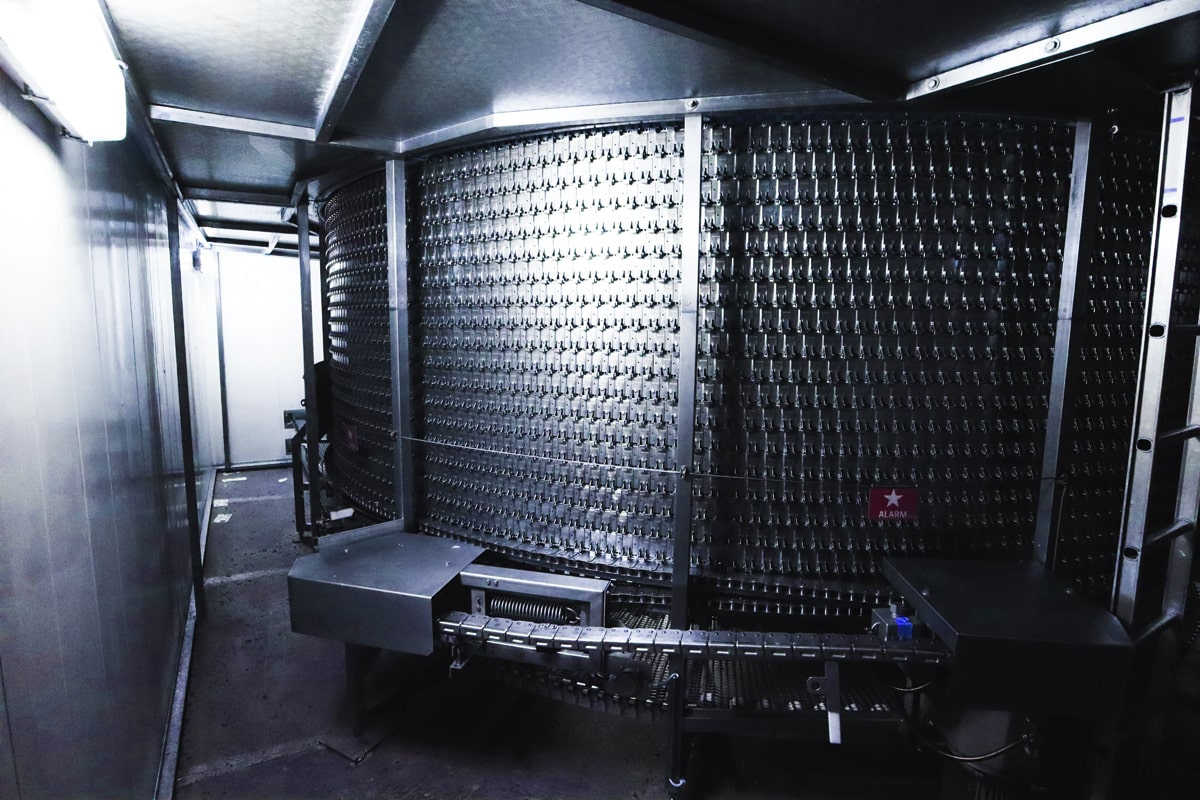

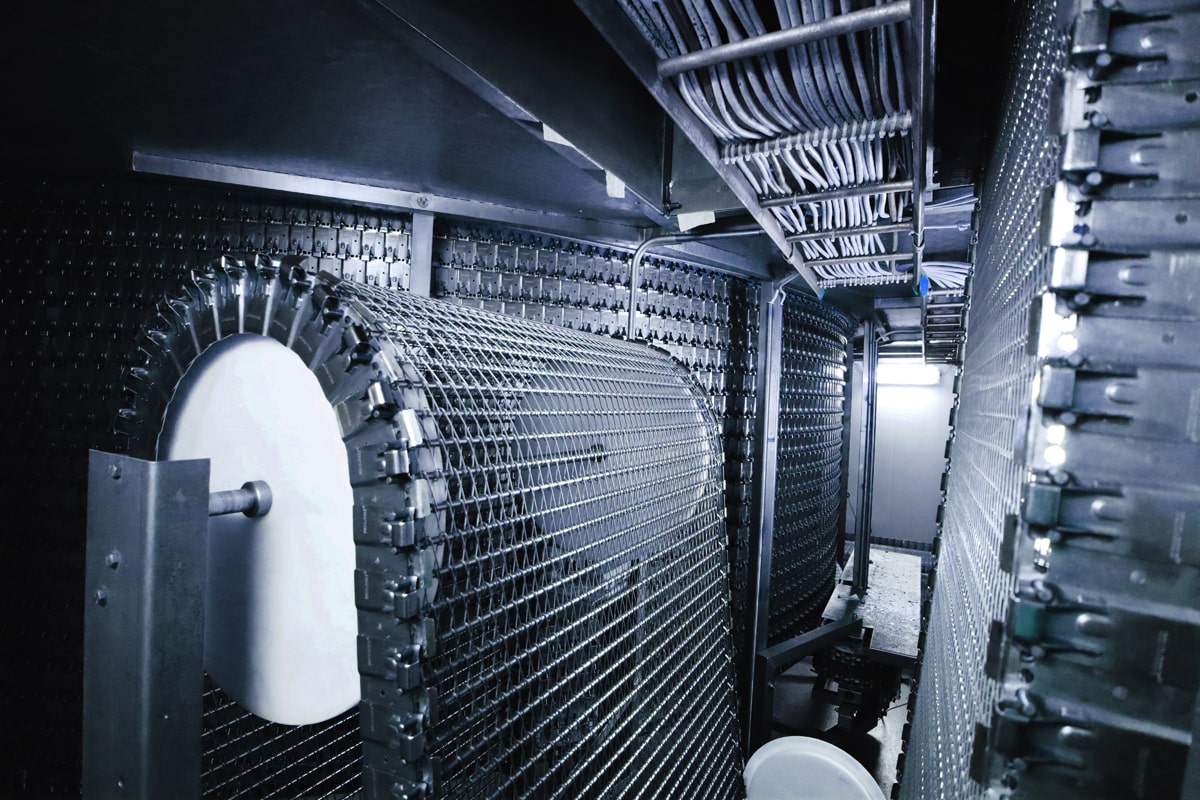

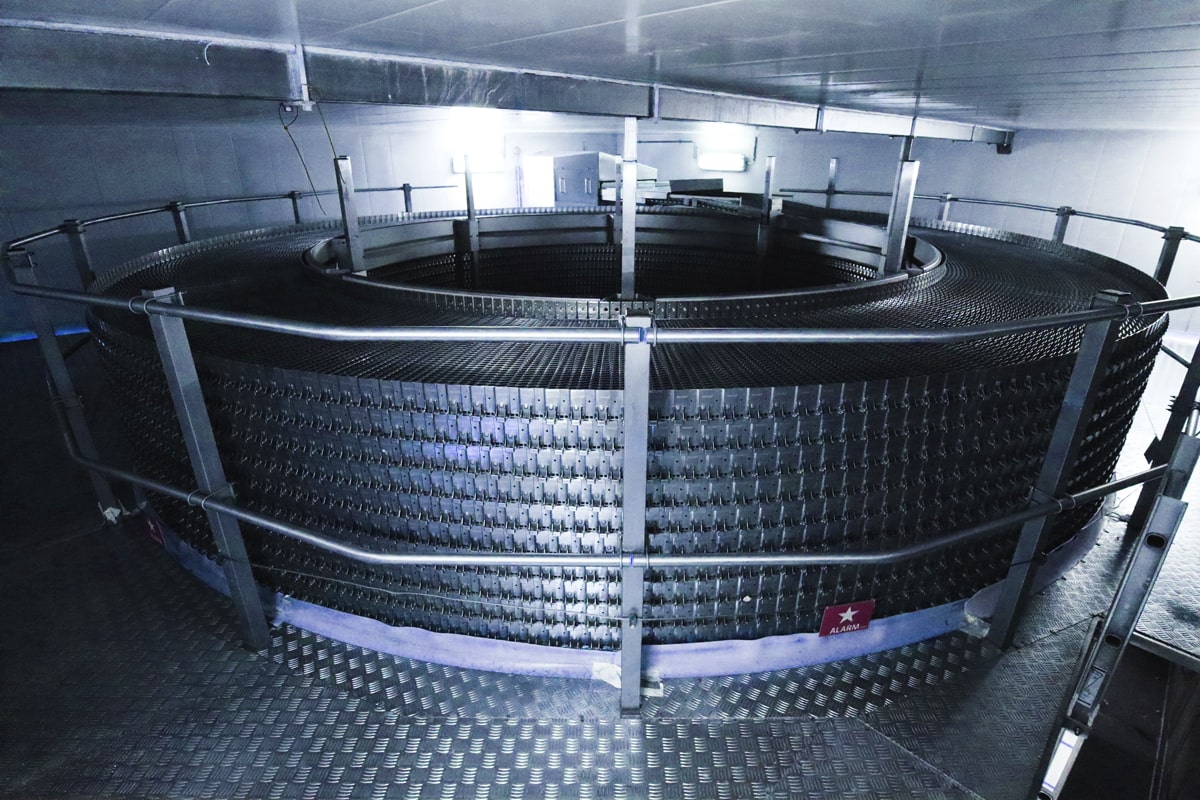

Frigoscandia GyroCompact GC92–10–32–26 NS CCR
Spiral Freezer
Frigoscandia GYRoCOMPACT M92
High capacity freezer with 32 effective tiers
| Type | GC92–10–32–26 NS CCR |
| Model | GC92 |
| Variety | North South - Counter Clockwise rotation |
| Tiers | 32 pcs. |
| Product gap | 85 mm |
| Link height | 100 mm |

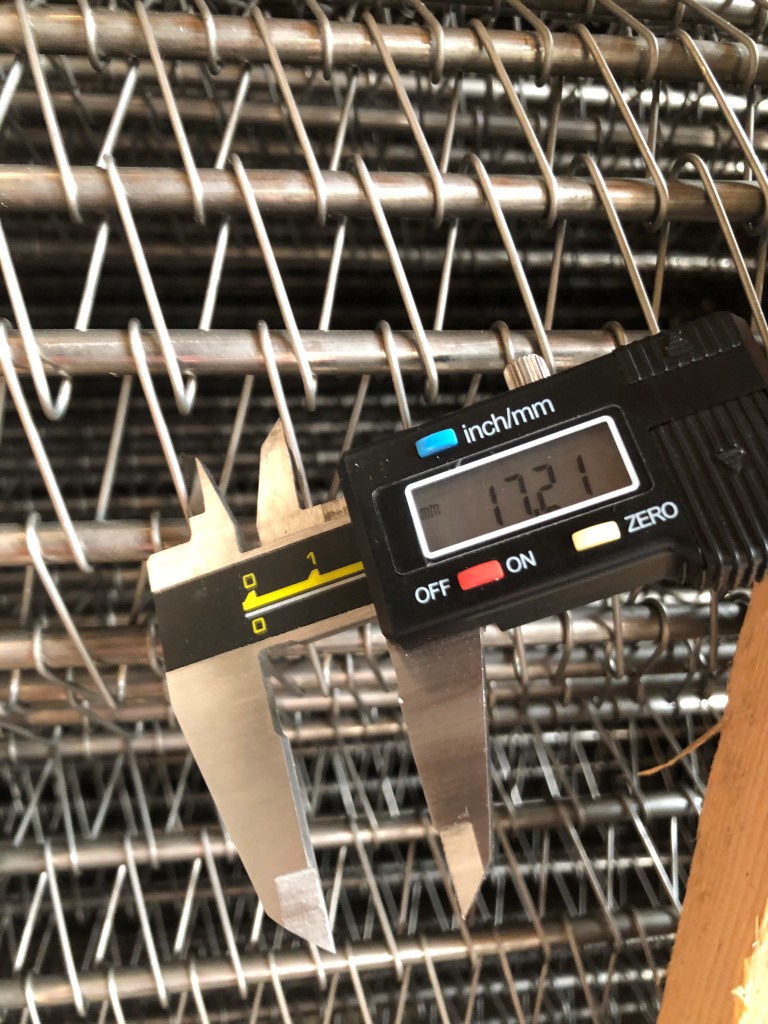

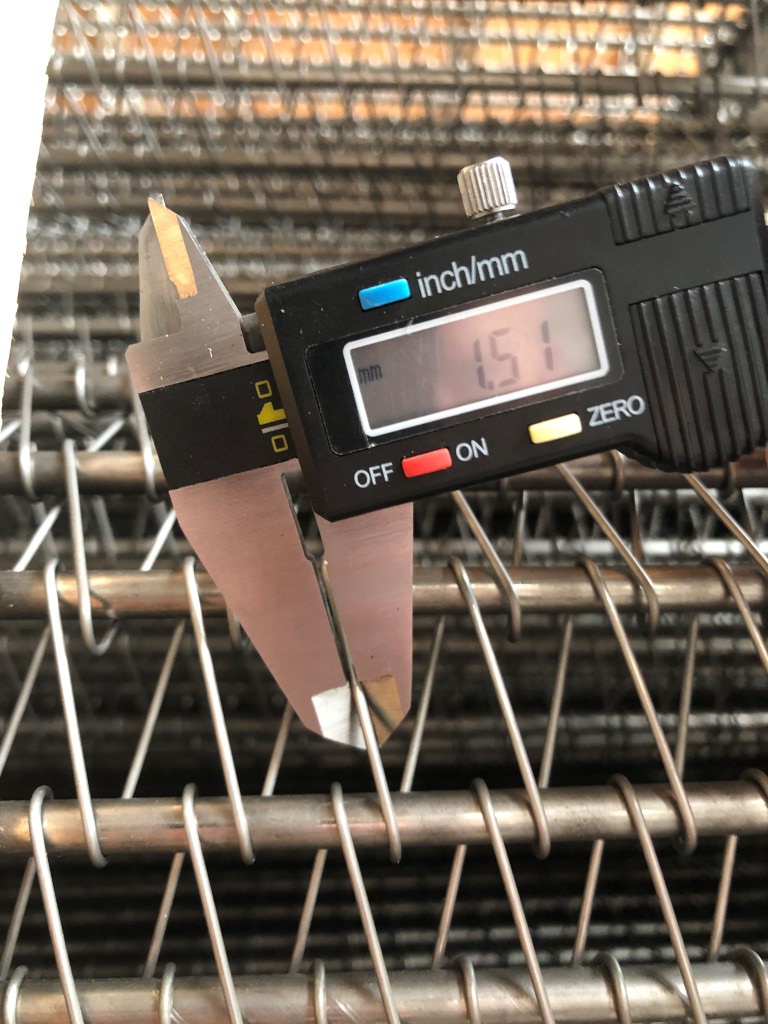

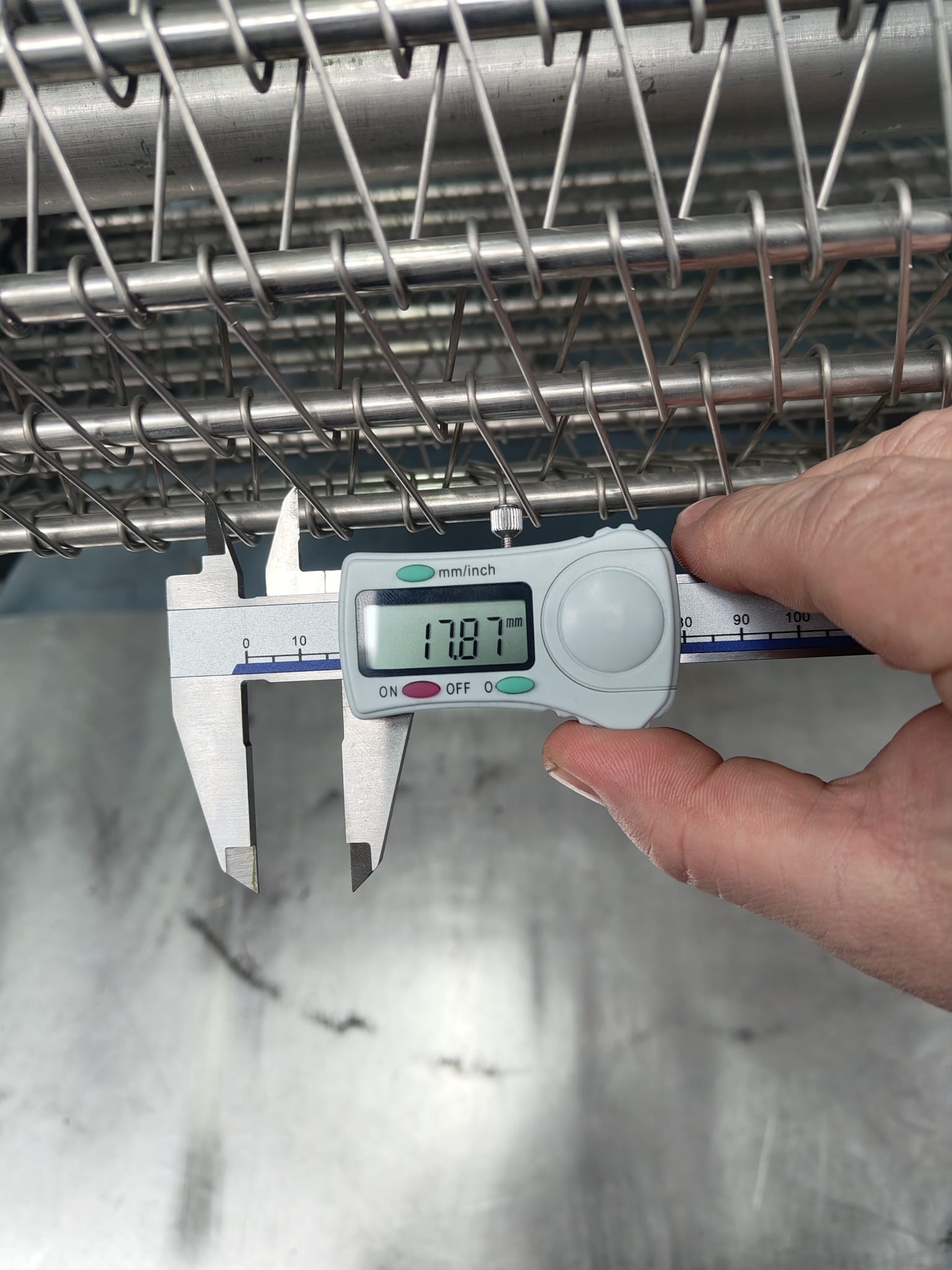

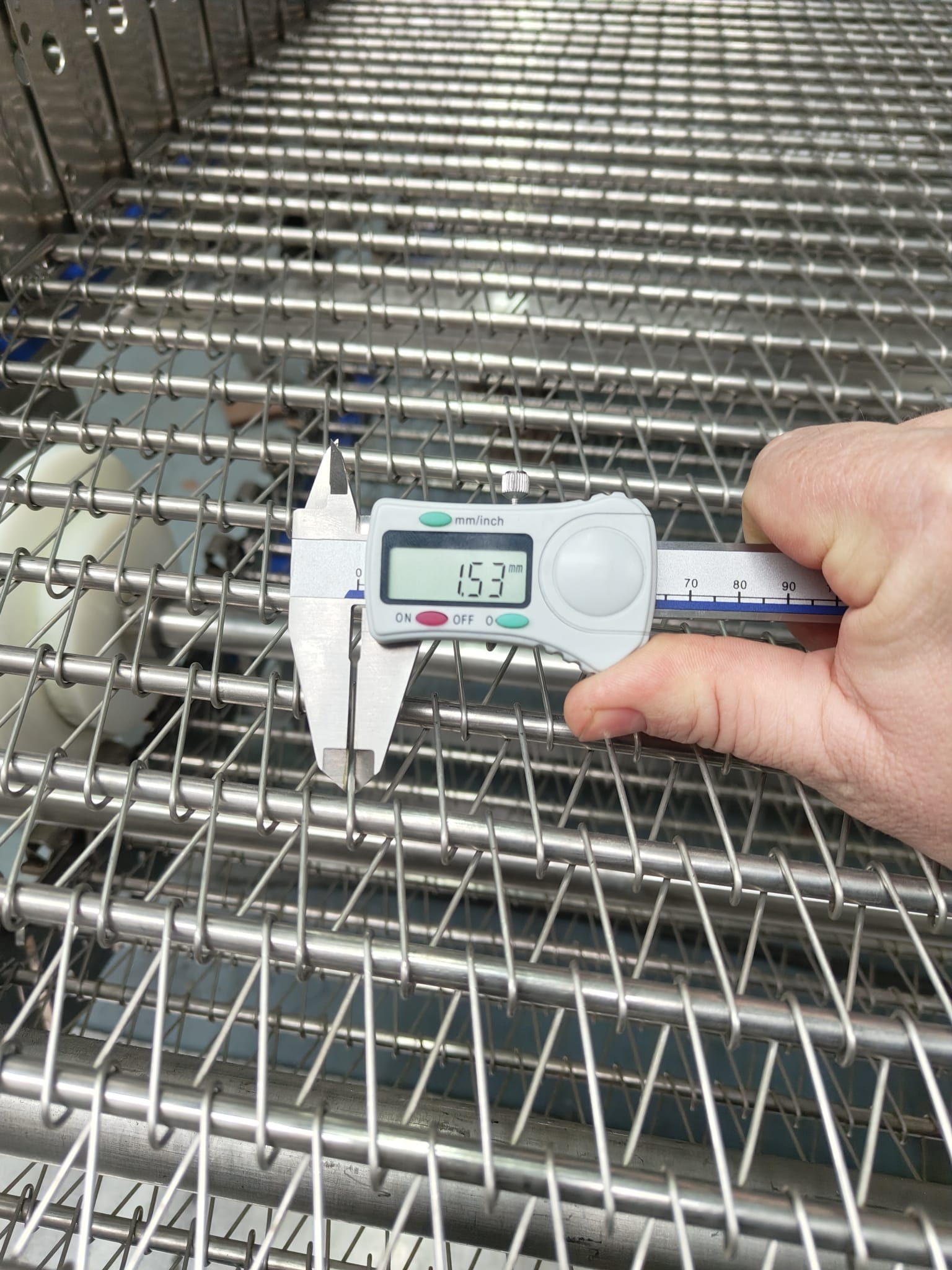

| Mesh wire thickness | FrigoBELT FBW 02-10, M20 - 1,5 CCR |
| Length per tier | 17,8M |

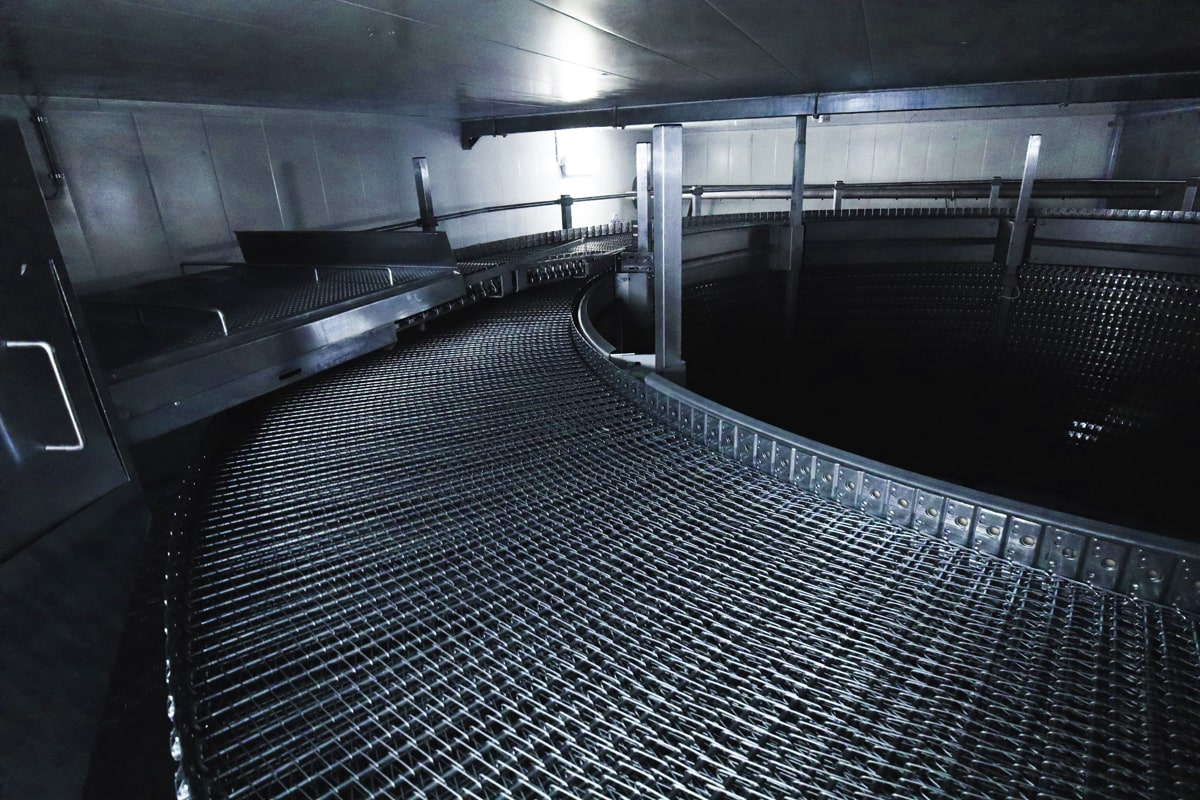

| Belt width | Gross: 920 mm / Nett: 880 mm |
| Belt length | 570 m |
| Infeed height | 860mm |
| Outfeed height | 4372mm |
| Refrigerant | NH3/Ammonia pump system |
| Cooling power | 416 kW |
| Evaporator | Model 26 |

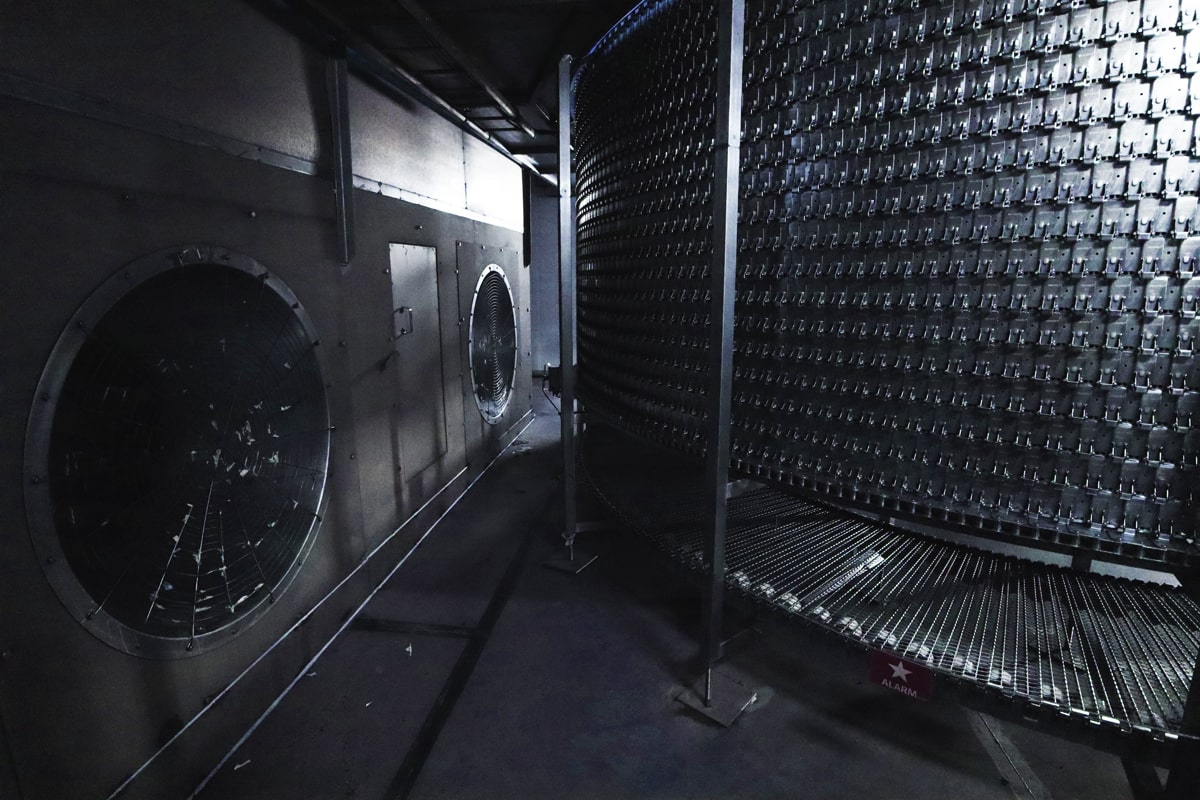

| Number of fans | 2 |
| Dimensions | Base: 9810 mm X 7400 mm x 5000mm |
