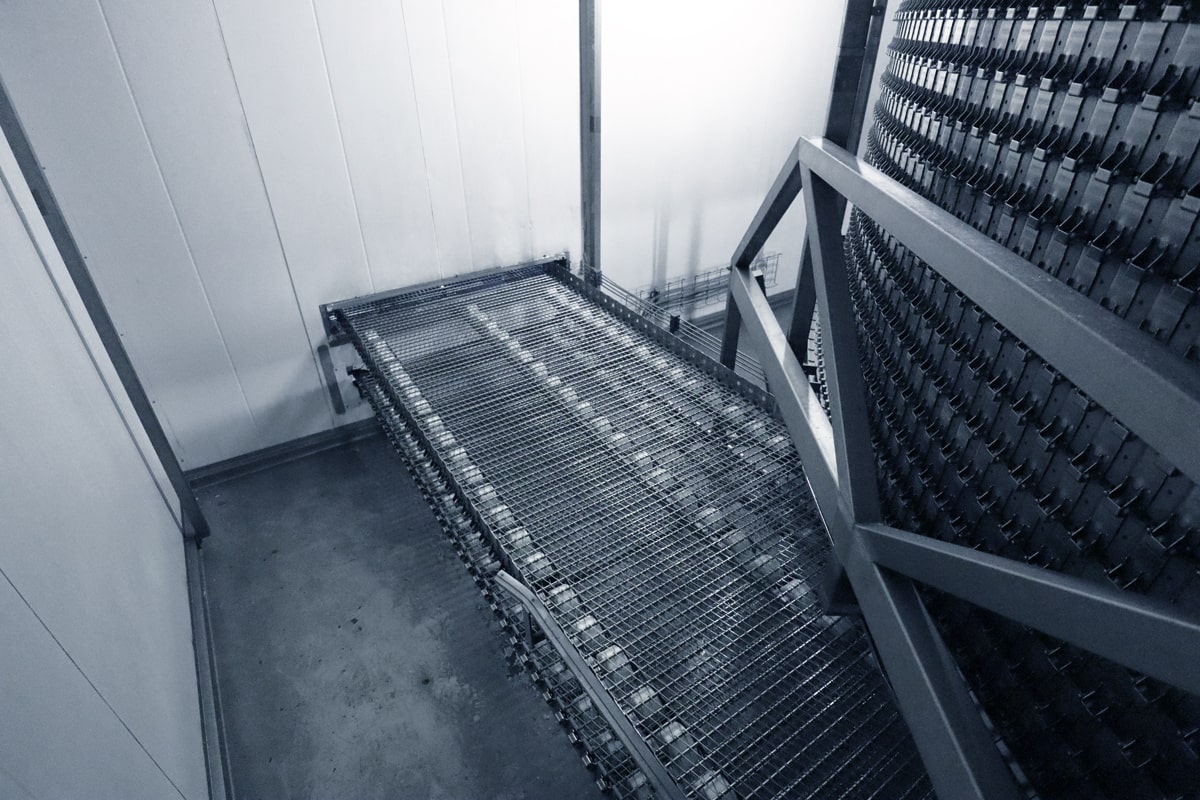

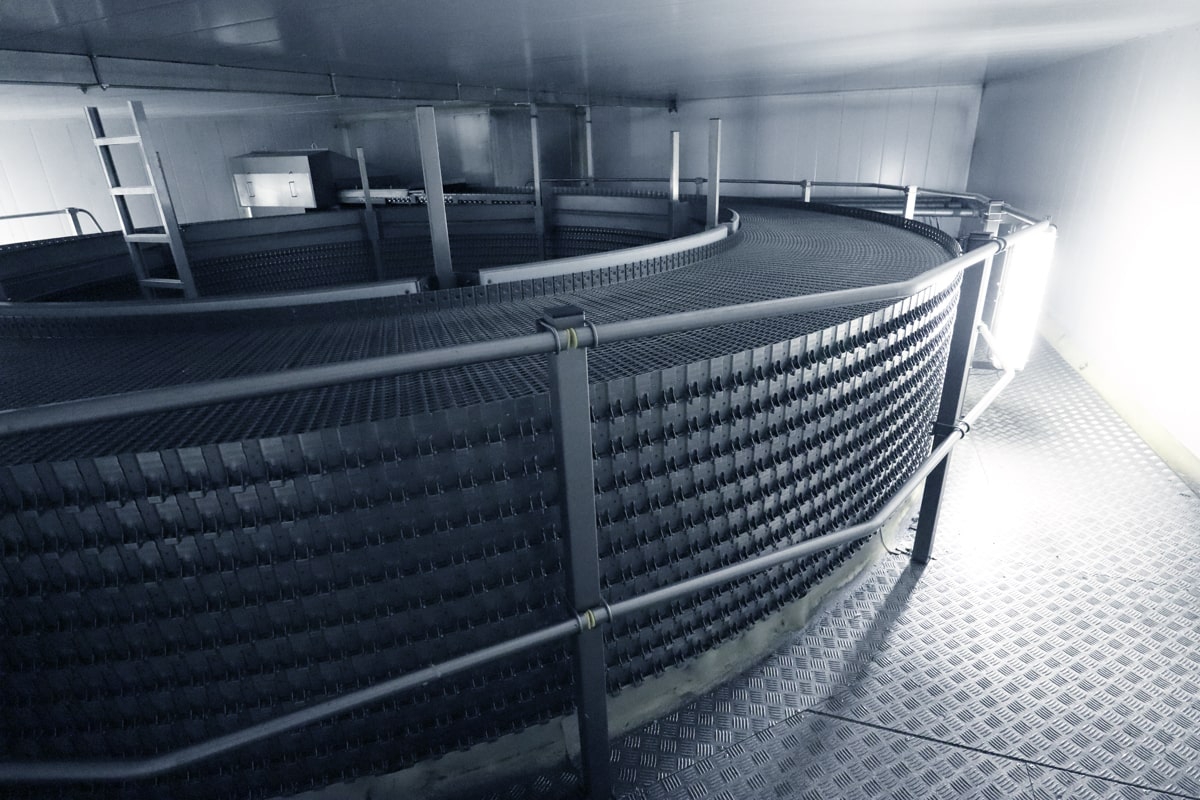

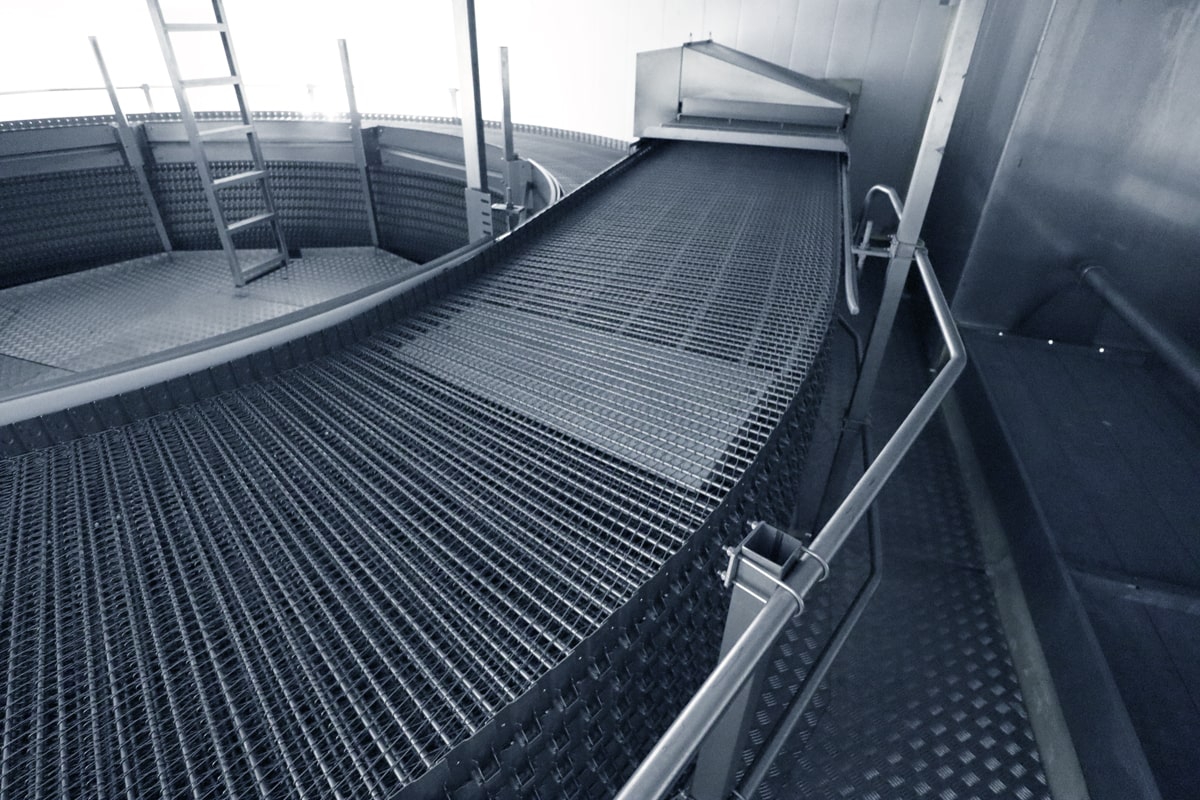

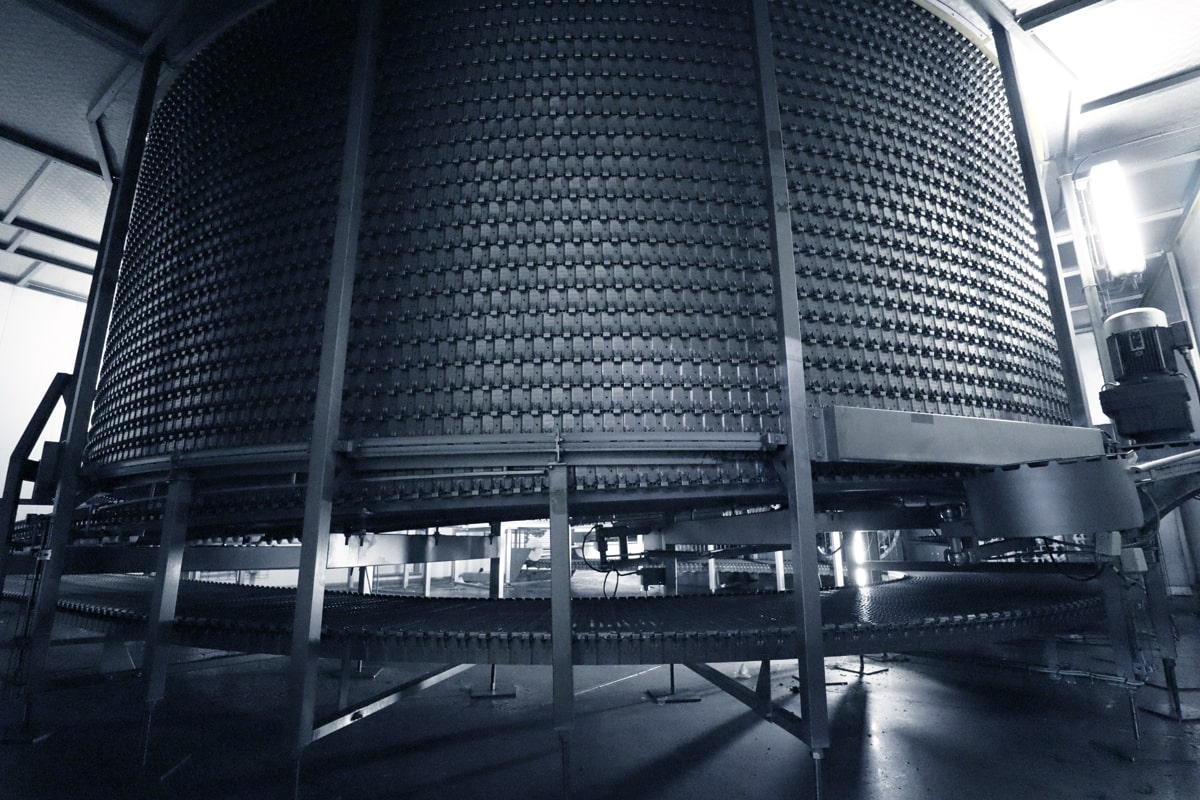

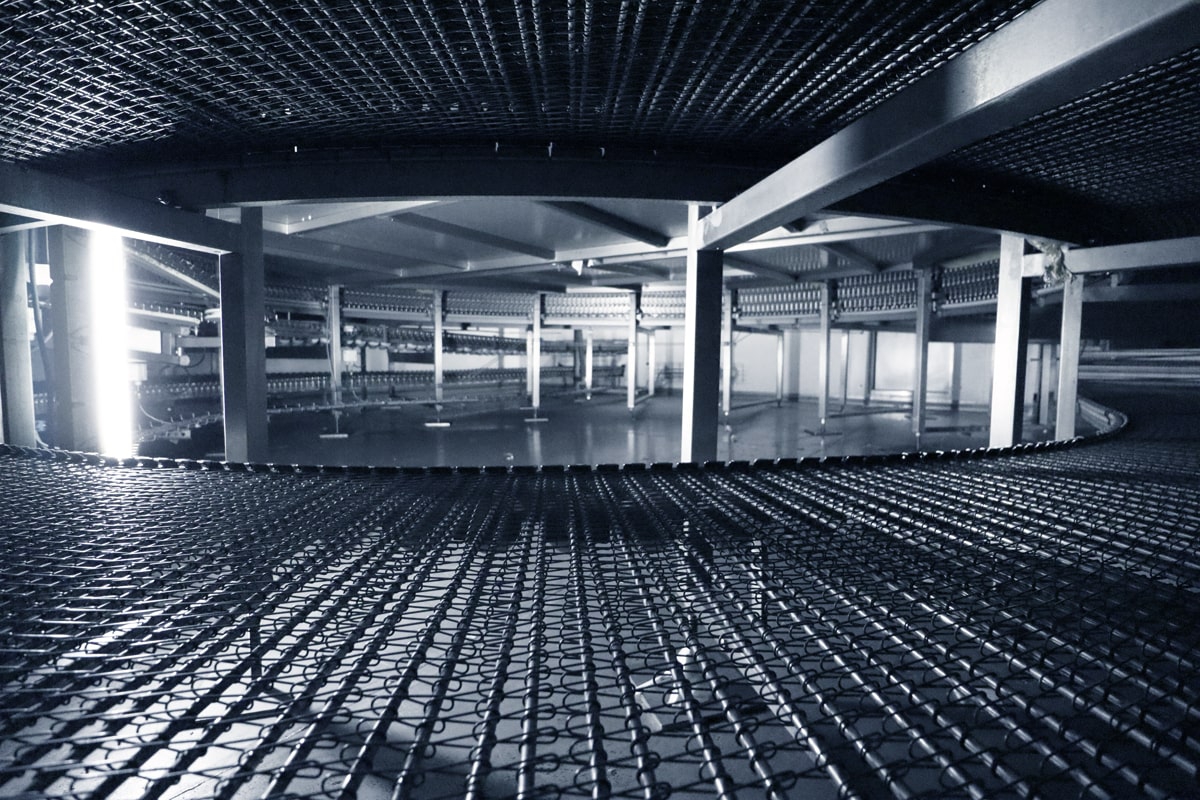

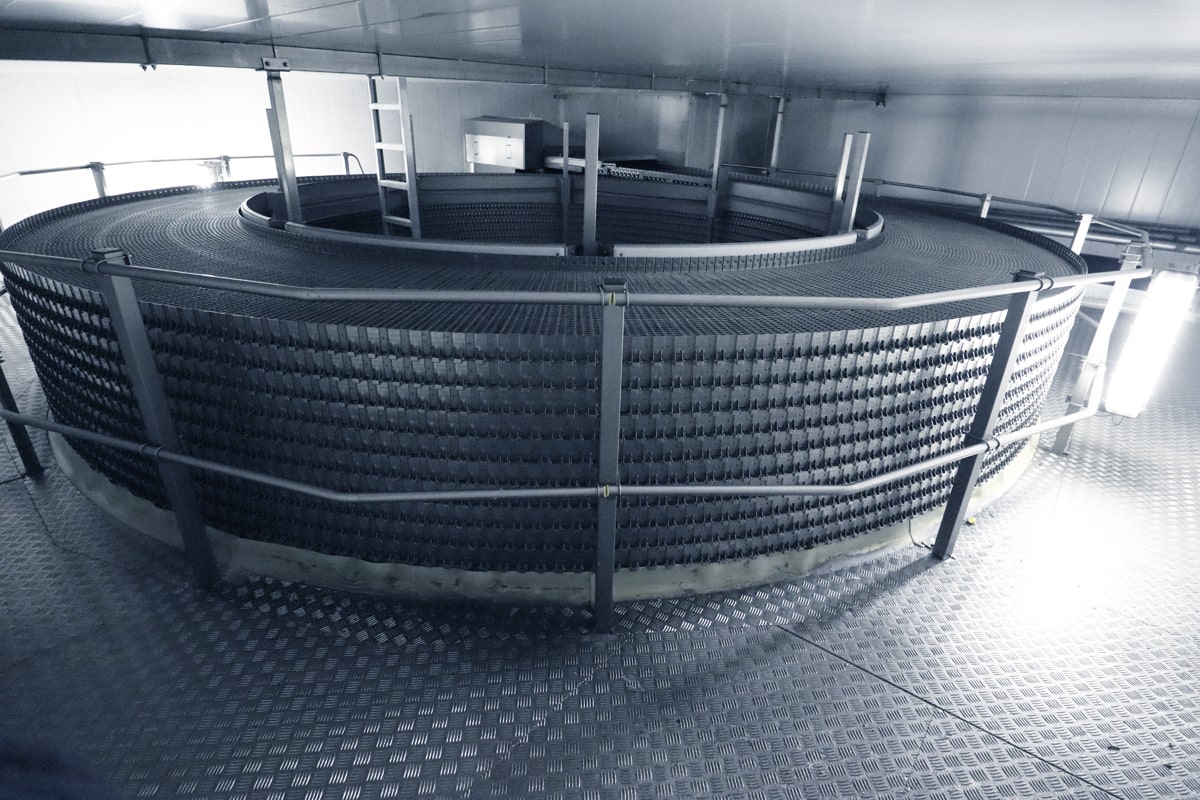

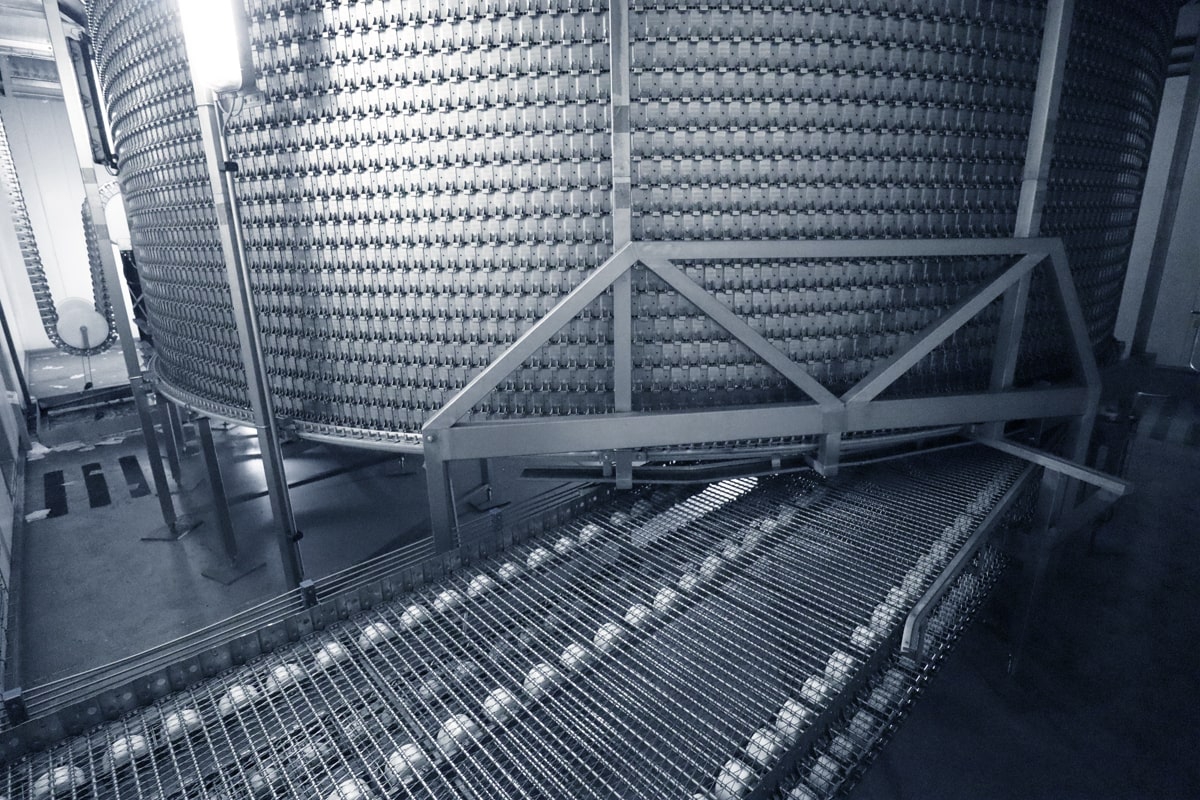

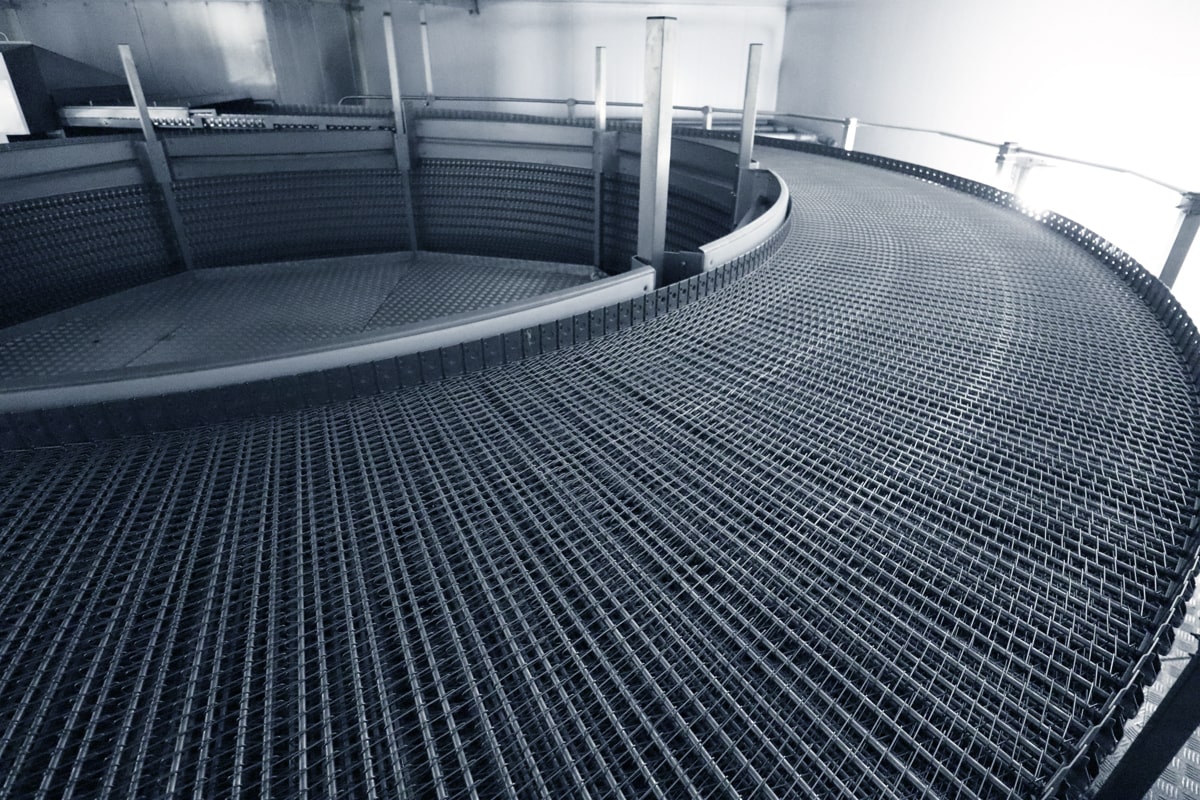

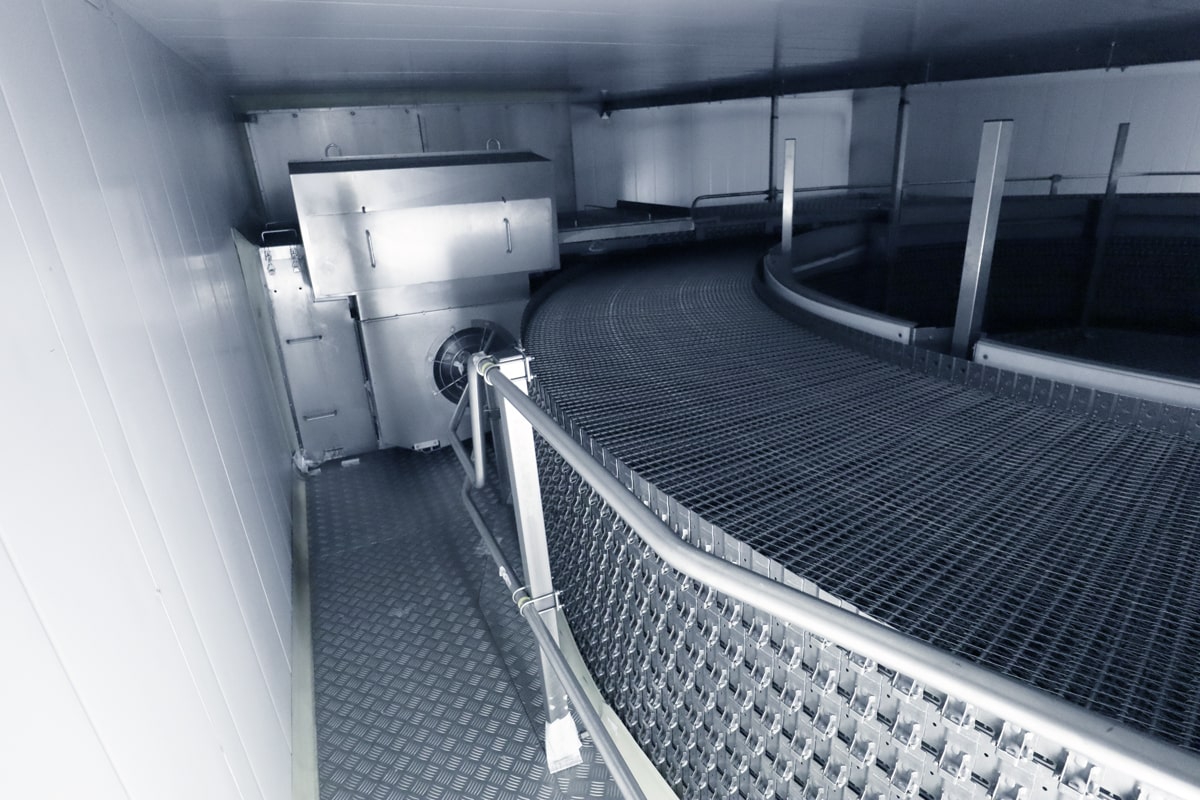

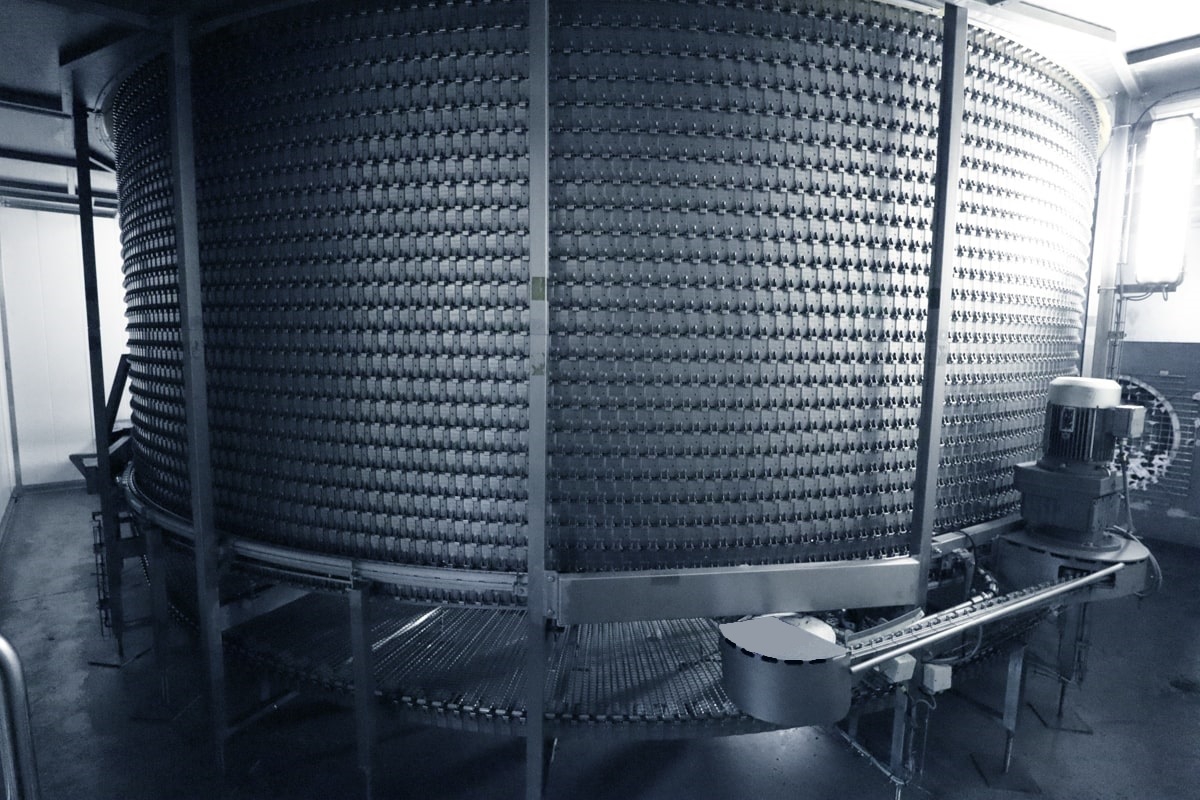

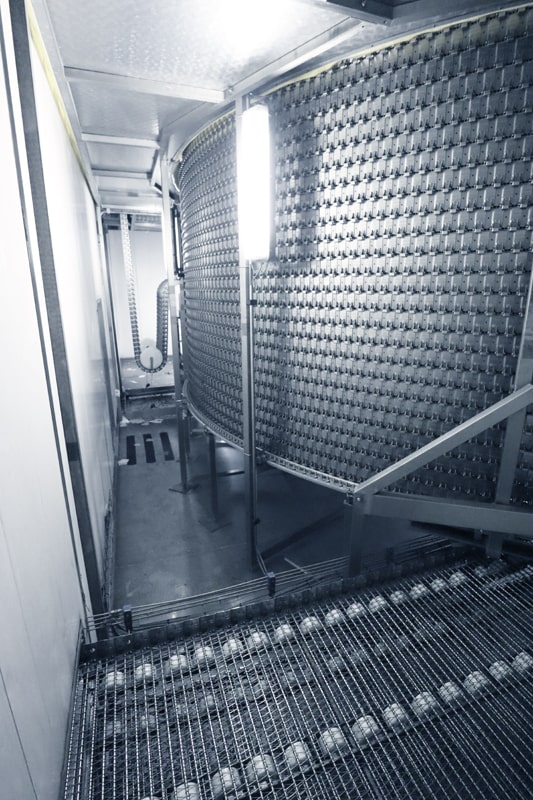

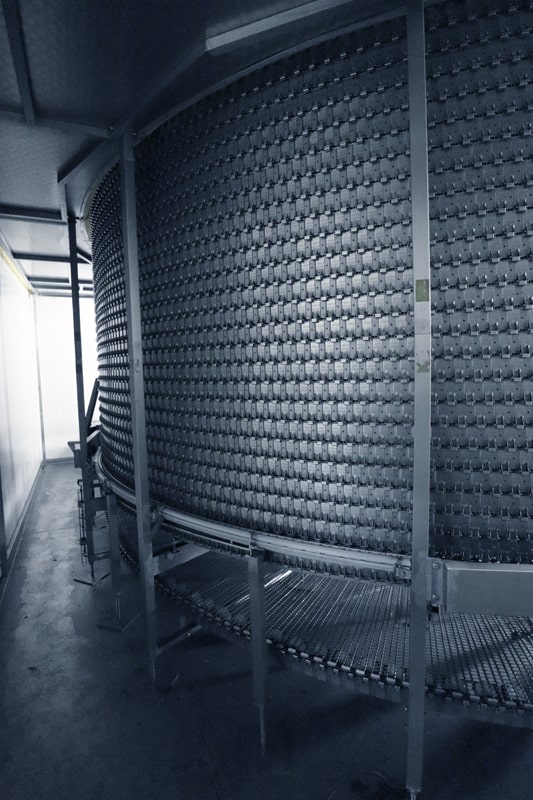

Frigoscandia GCM106–08–36–40 EE CCR
Spiral Freezer

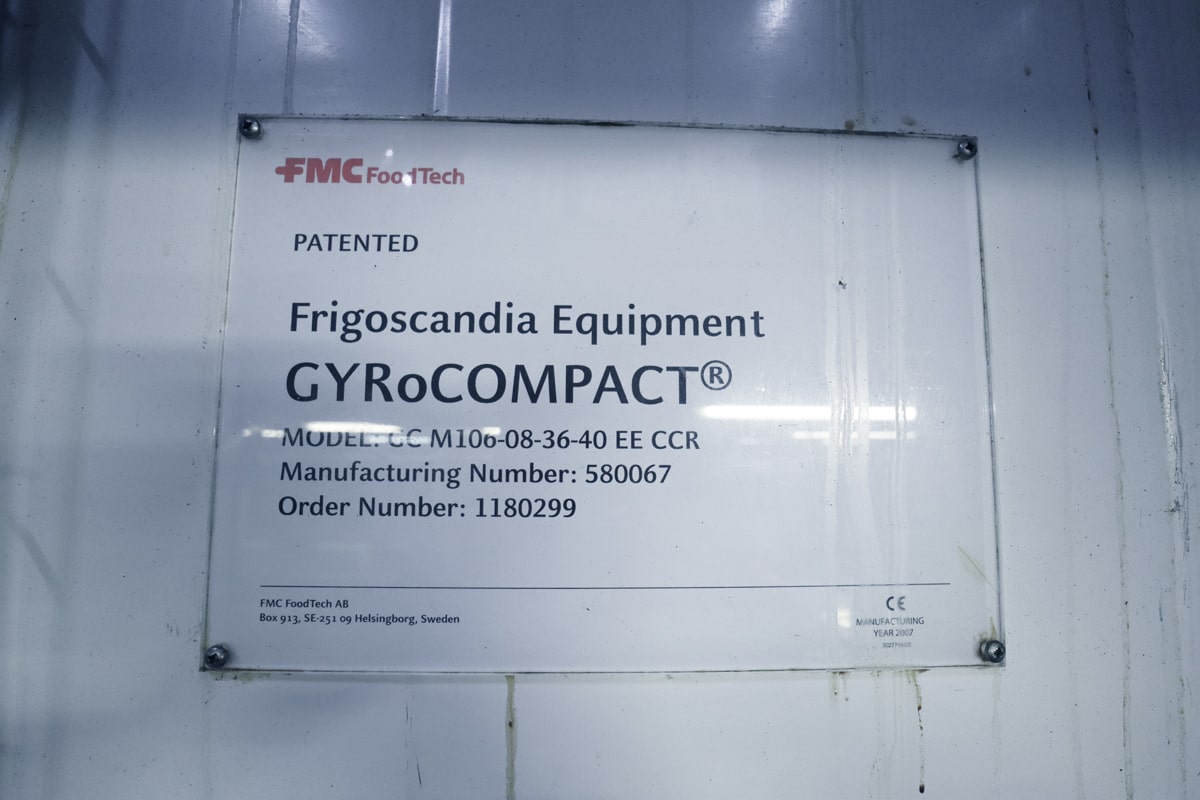

Frigoscandia GYRoCOMPACT M106
| Type | GCM106–08–36–40 EE CCR |
| Model | East-East, Counter Clockwise Rotation |
| Variety | FDP FrigoDriveProfile |
| Year of Construction | 2007 |
| Tiers | 36 pcs. |
| Product gap | 65 mm |
| Link height | 80 mm |

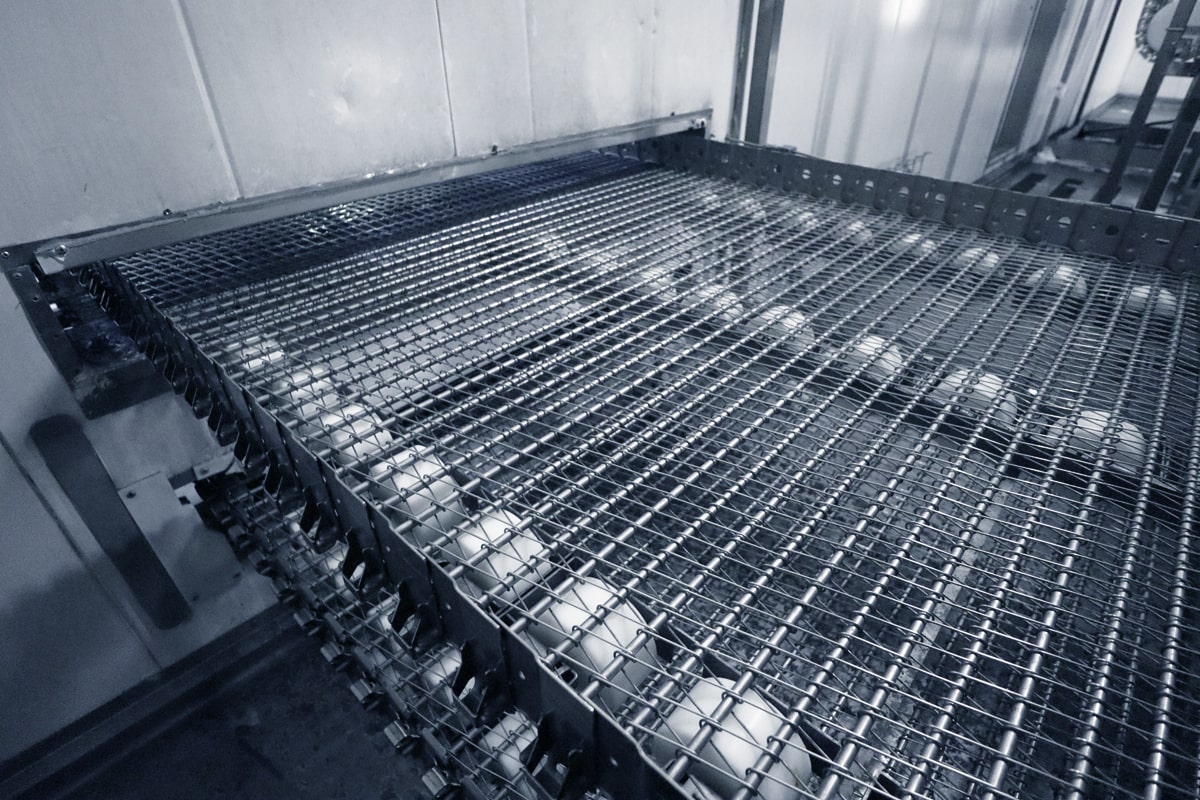

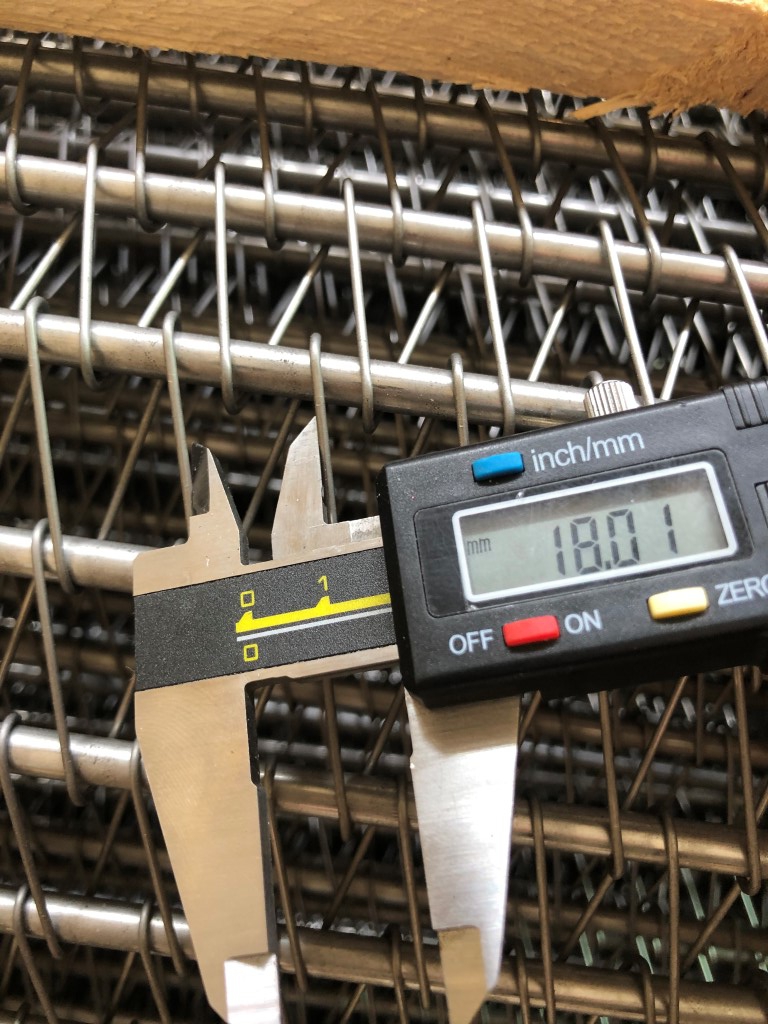

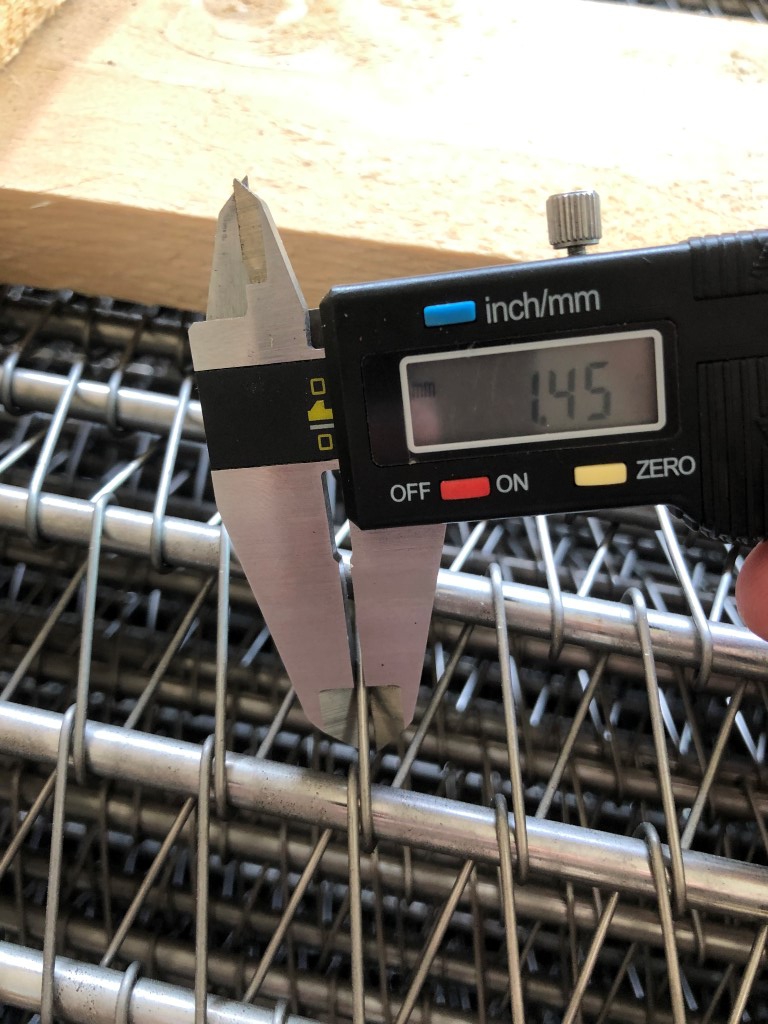

| Mesh wire thickness | FBW 106-08-7, M20-1.5 CCR |
| Length per tier | 20,5m per tier - Effective belt area: 630 m2 |
| Belt width | Gross: 1060 mm / Nett: 1000 mm |
| Belt length | 738 m |
| Capacity | Max belt load 13,5kgs/m2 |
| Refrigerant | NH3/Ammonia pump system + CO2 |
| Cooling power | 640 kW |

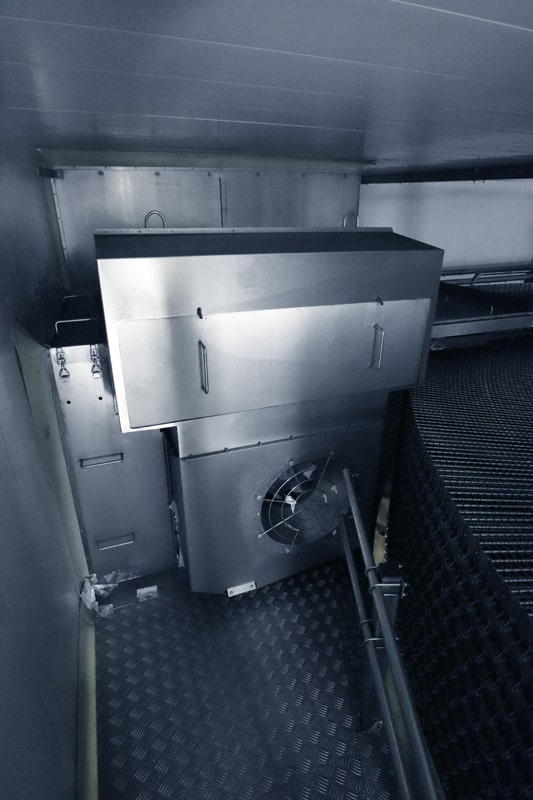

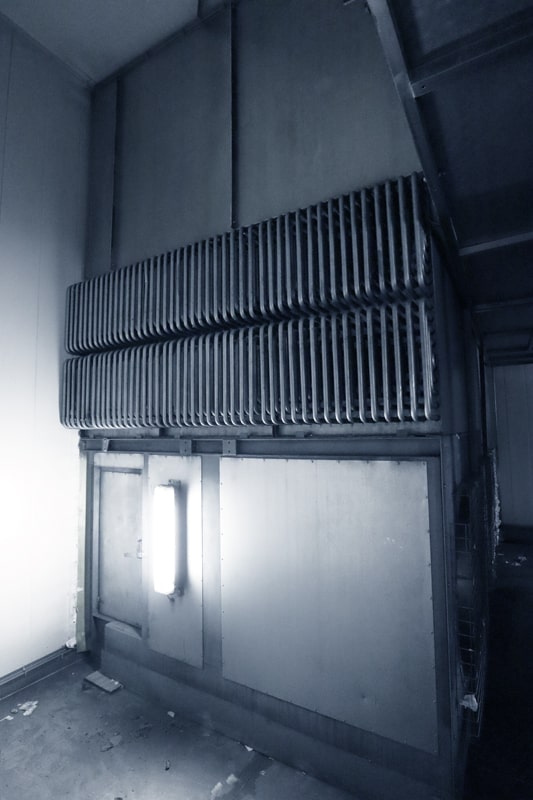

| Evaporator | 4000 m2 |
| Dimensions | Base: 13050 mm X 6450 mm |
