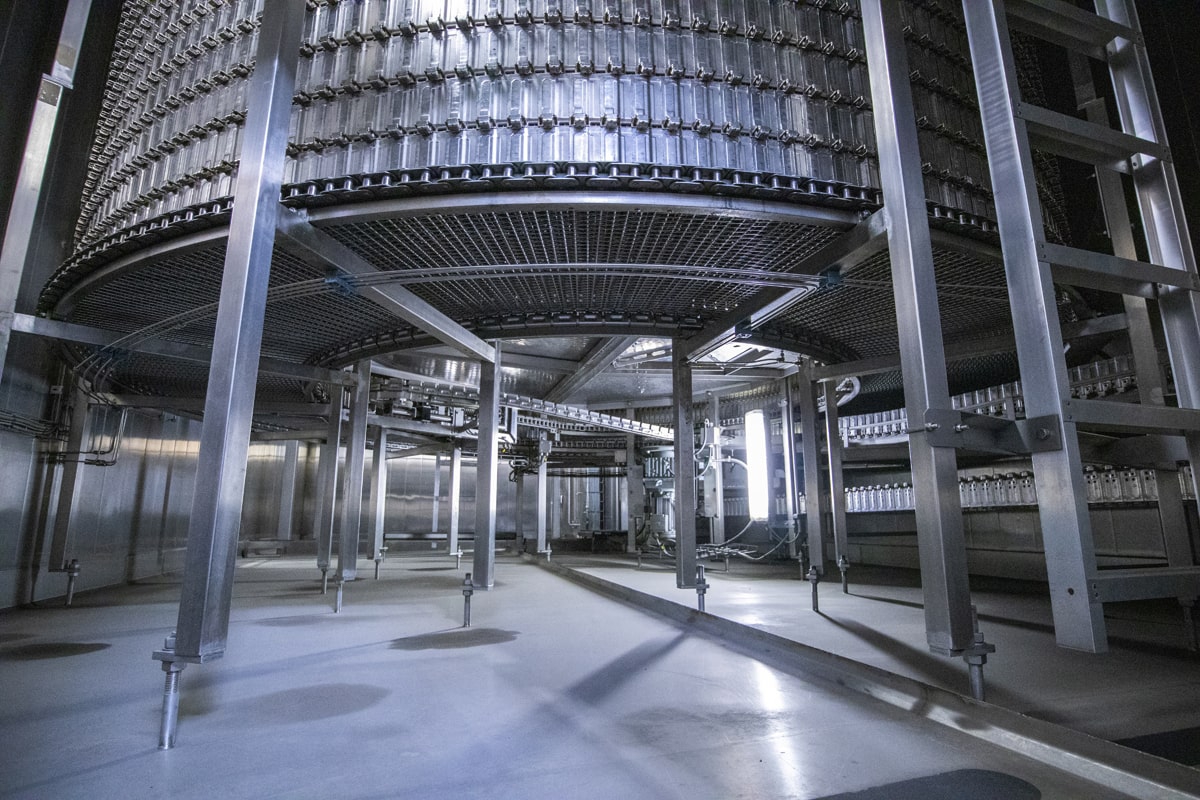

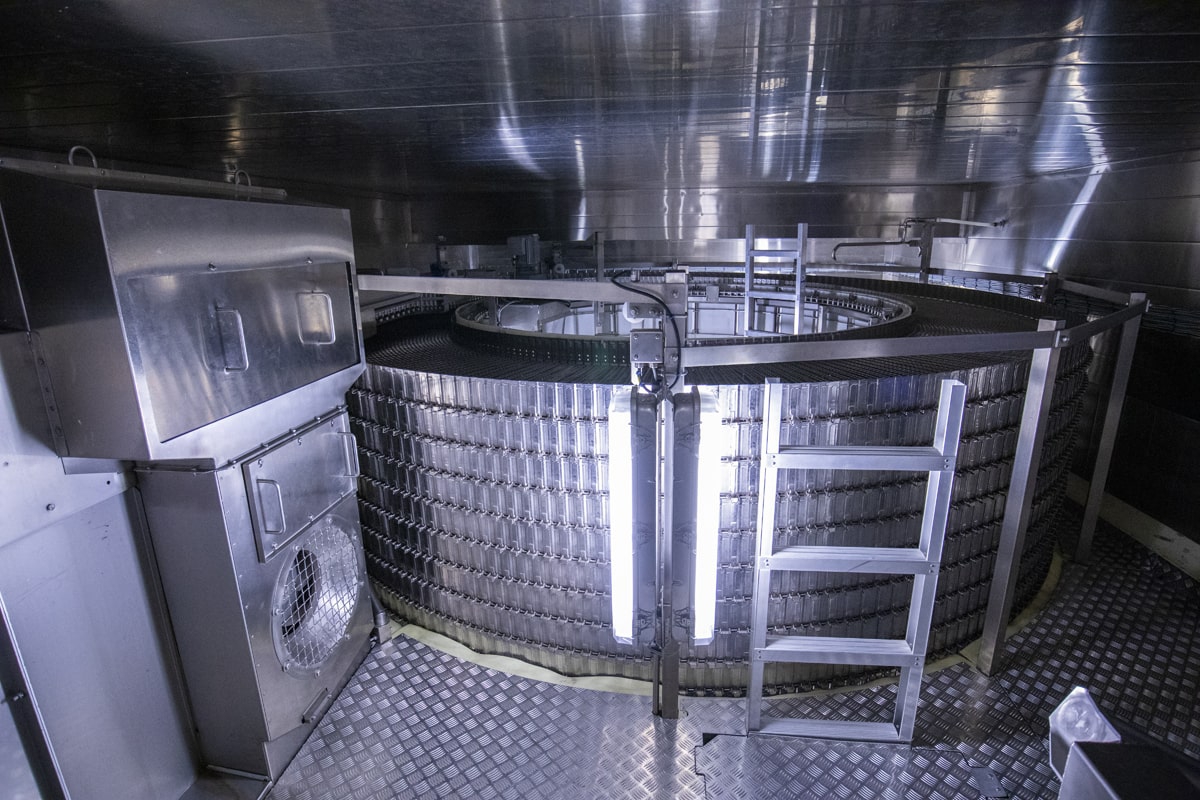

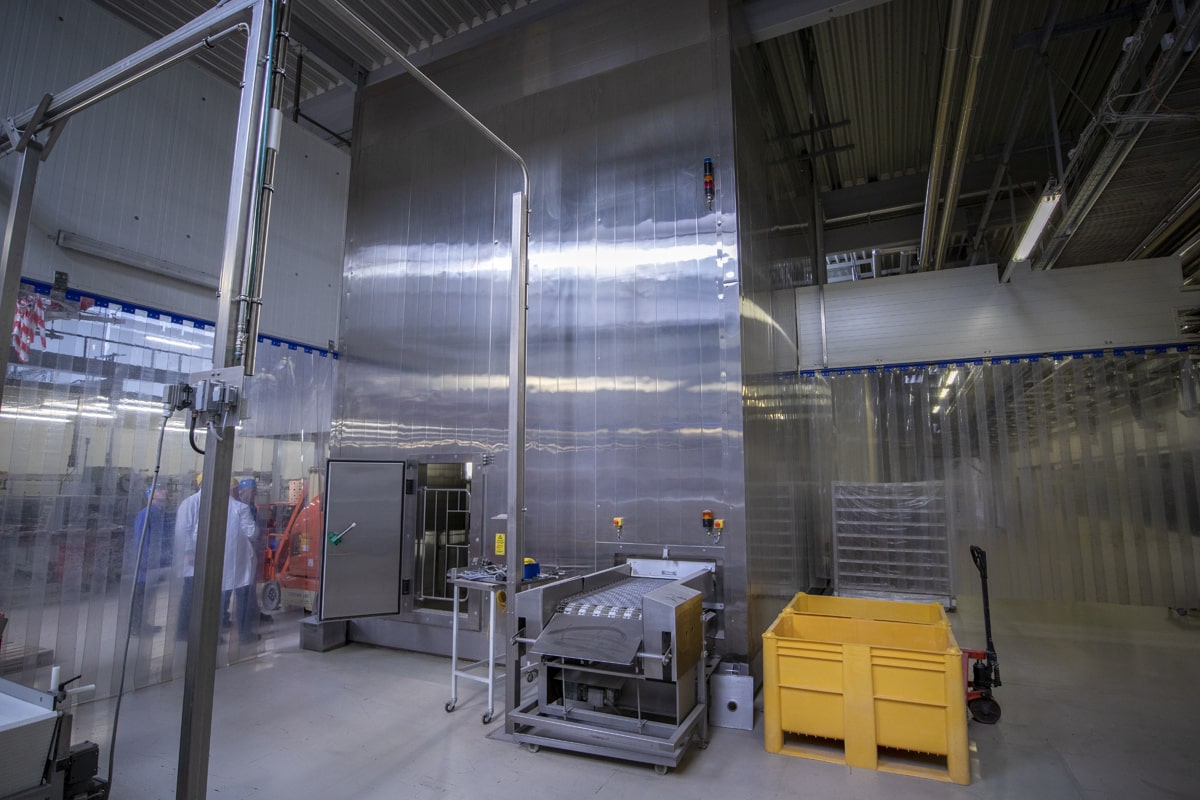

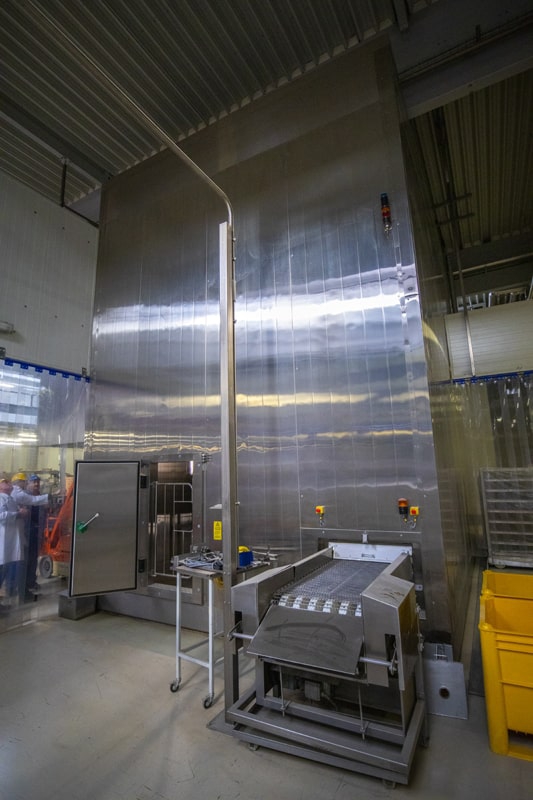

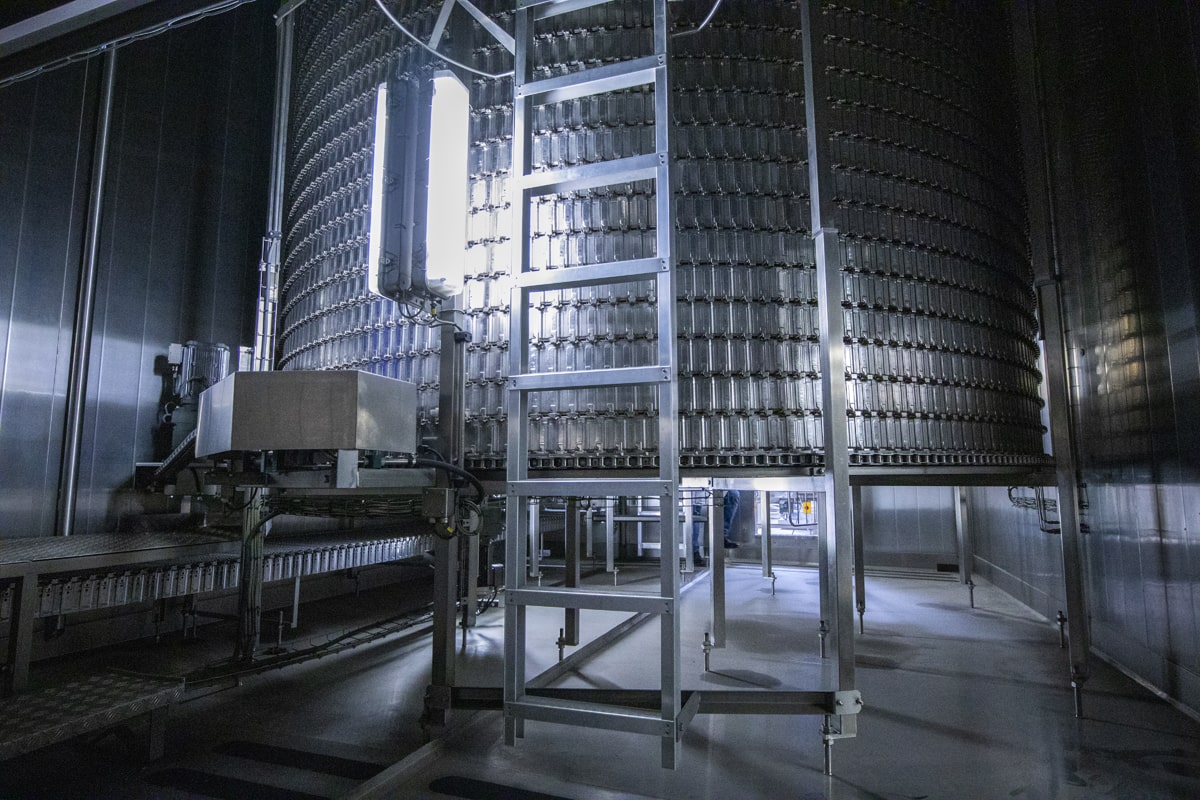

Frigoscandia GCM7/2-12-43-31 SN CR DE
Spiral Freezer
Frigoscandia GYRoCOMPACT M7

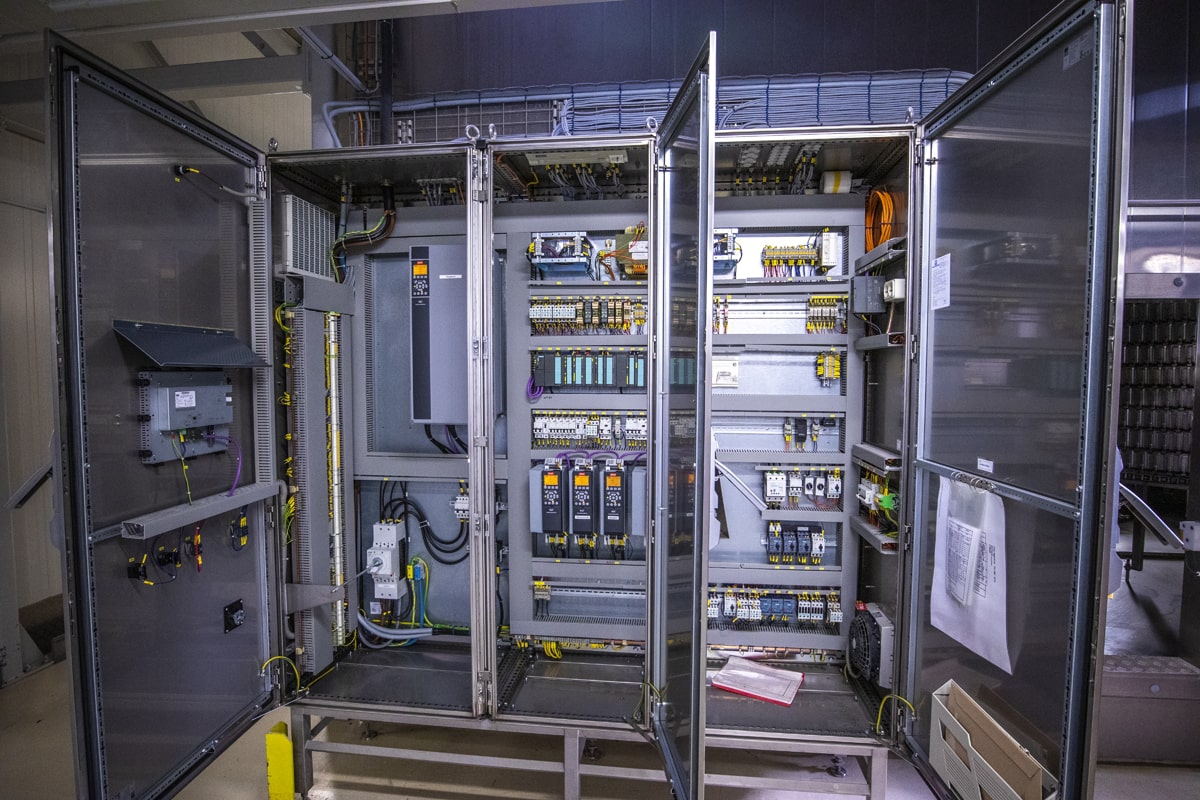

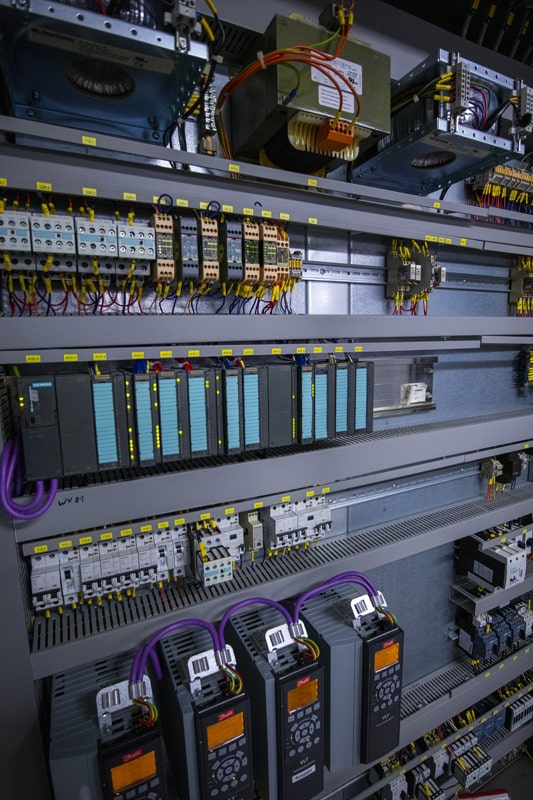

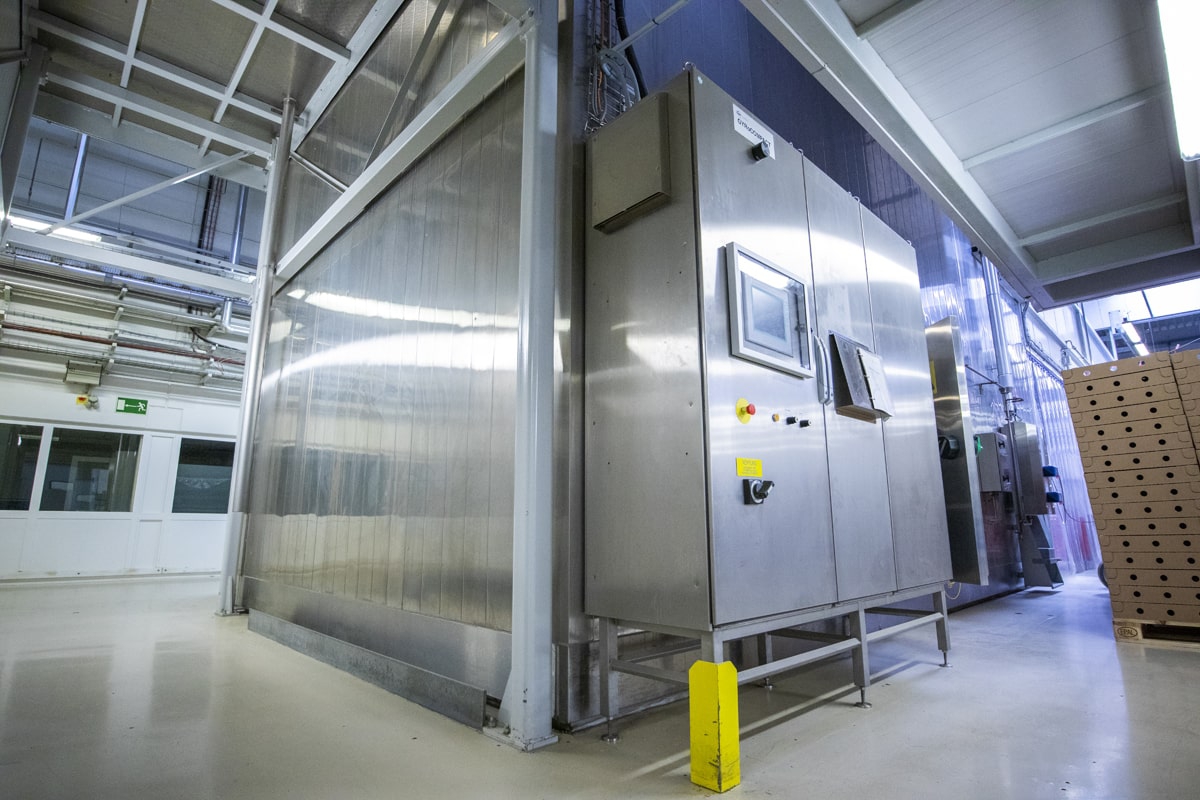

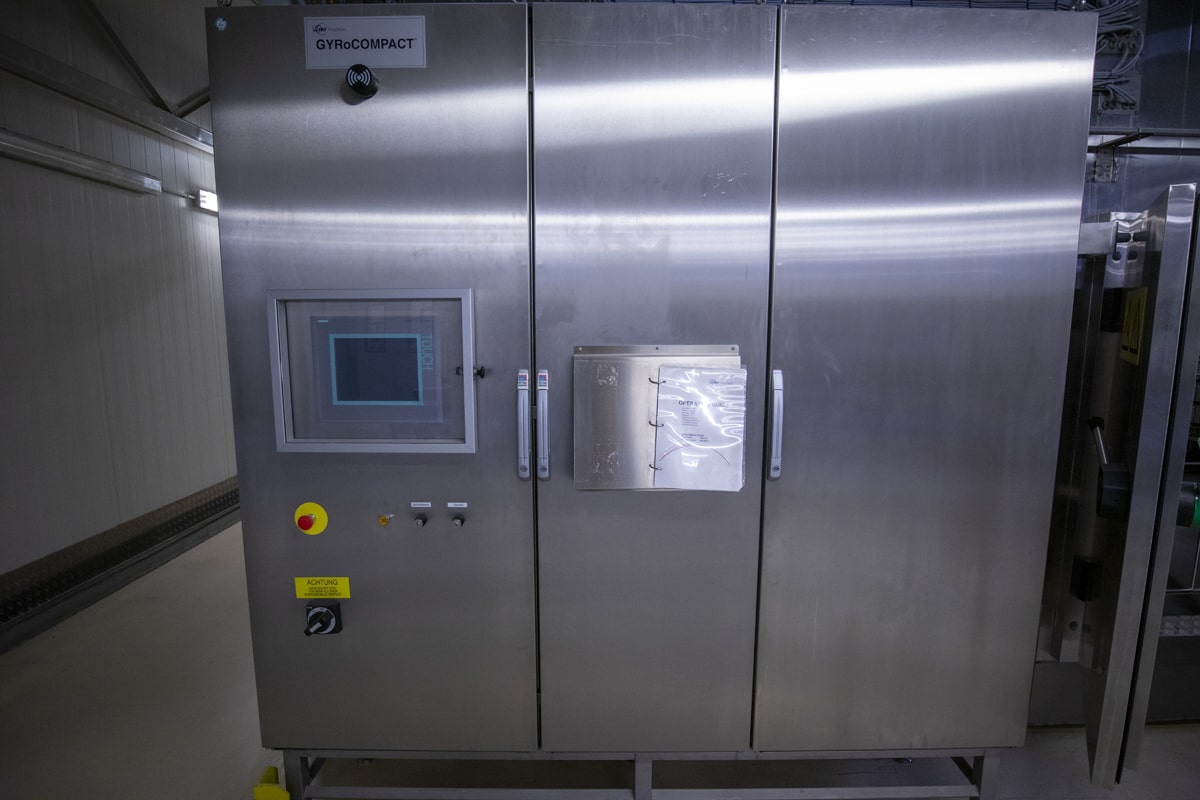

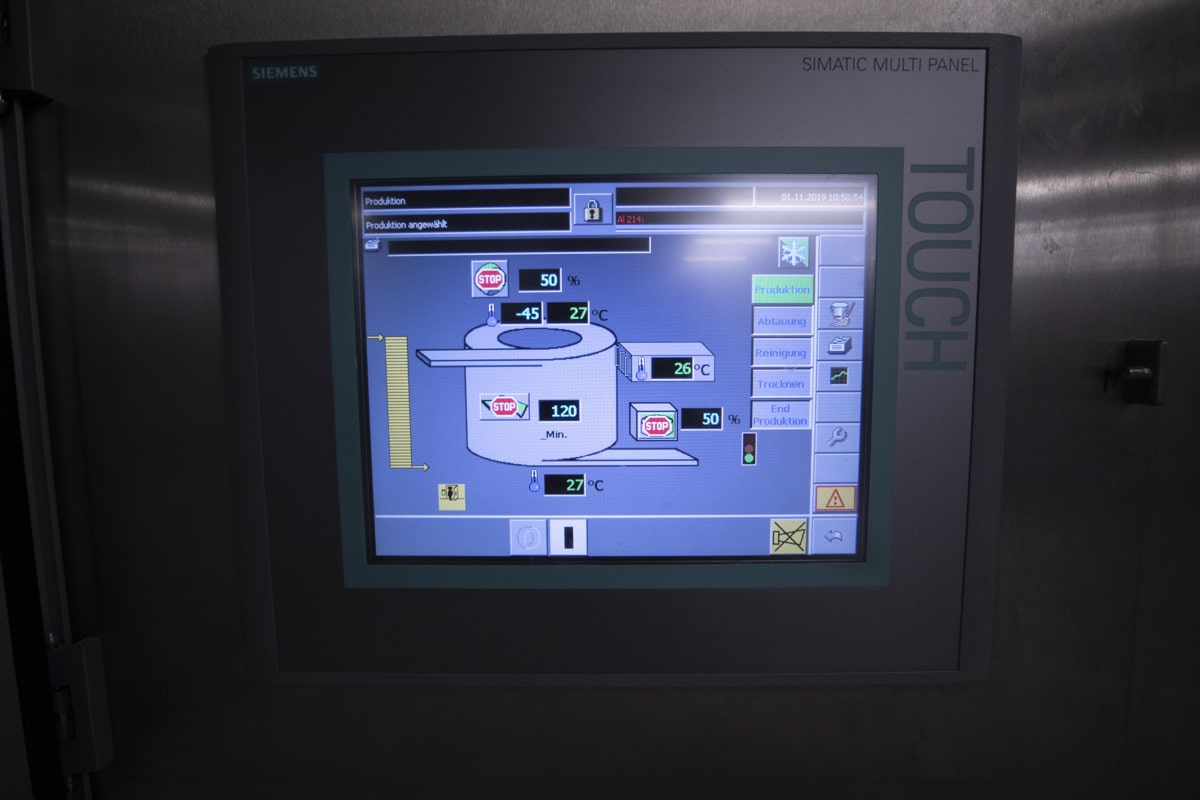

installed new in 2013, Stainless steel welded Floor (3 x sections), with PZC Process Zone Cleaning System, Siemens Siematic TOUCH screen Control, Stainless steel insulation housing
| Product Number | Manufacturing Nr. 2730075 |
| Type | GCM7/2-12-43-31 SN CR DE |
| Model | South-North, Clockwise Rotation (Descending – Top In / Bottom Out) |
| Year of Construction | 2013 |

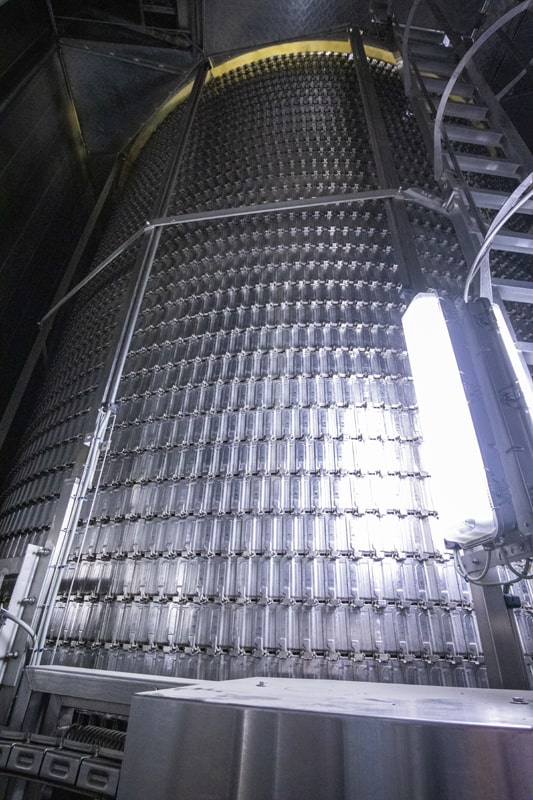

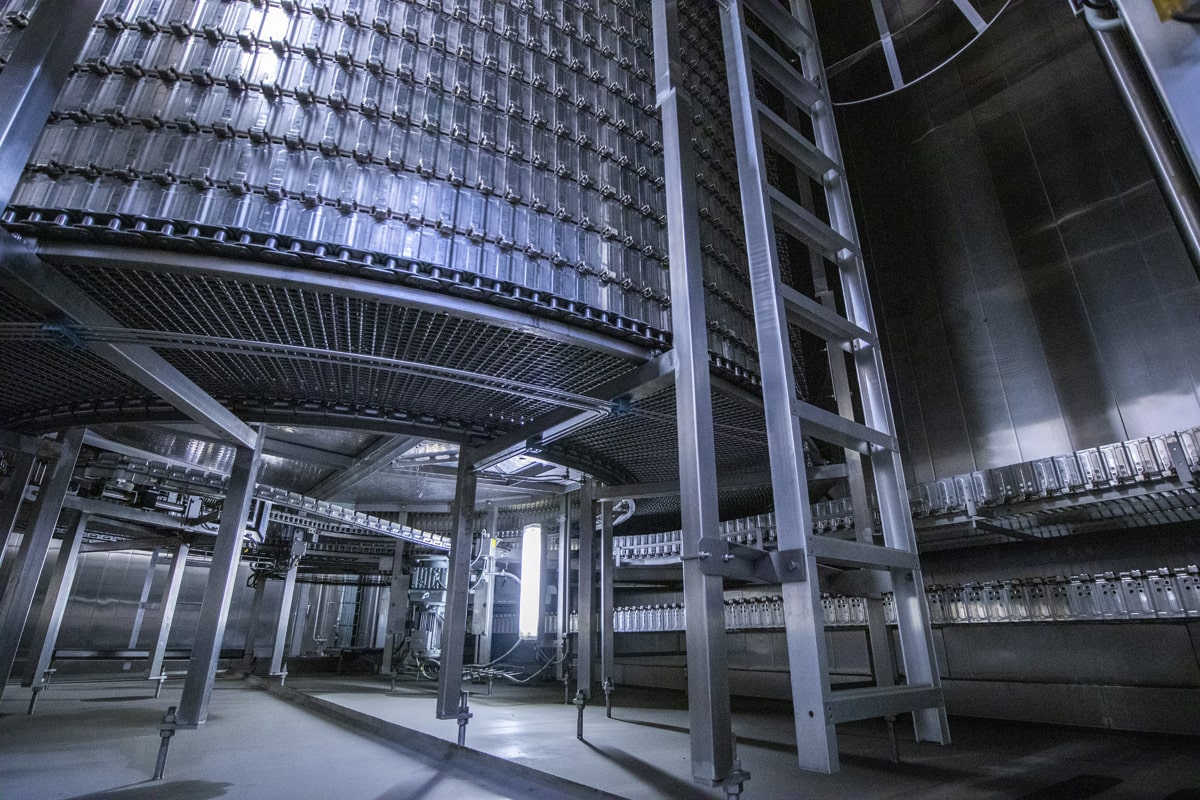

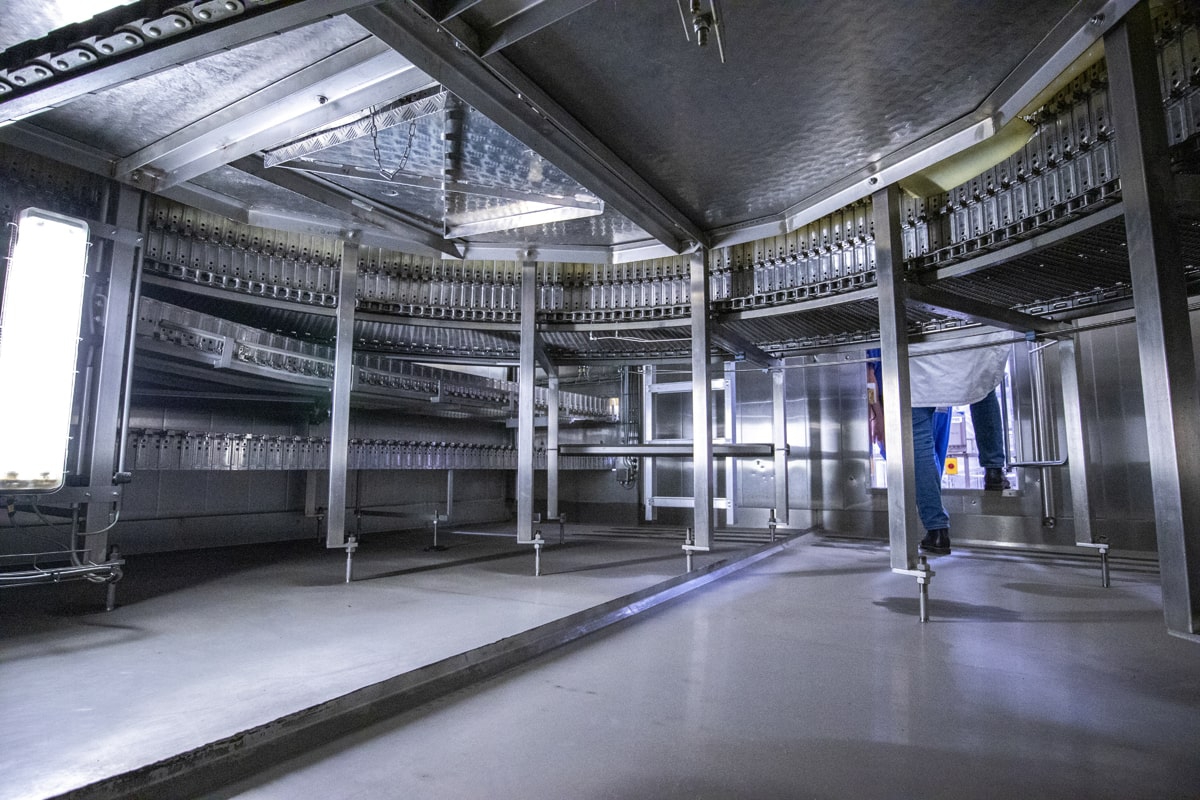

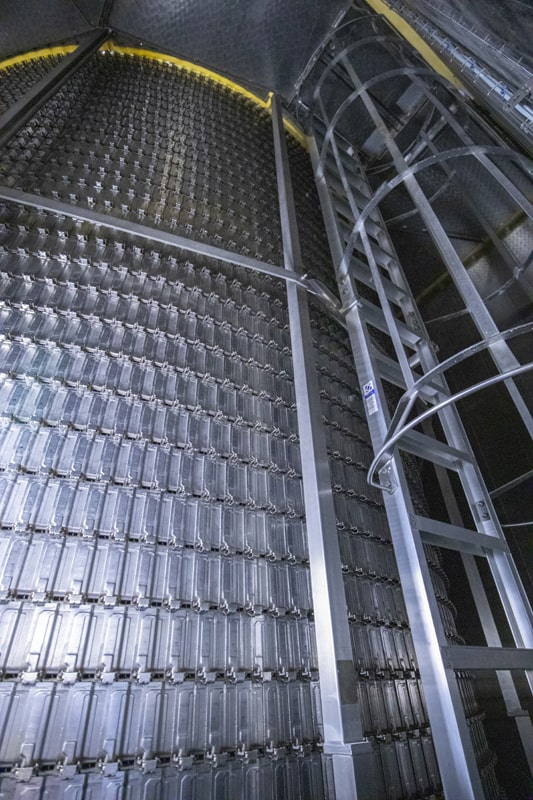

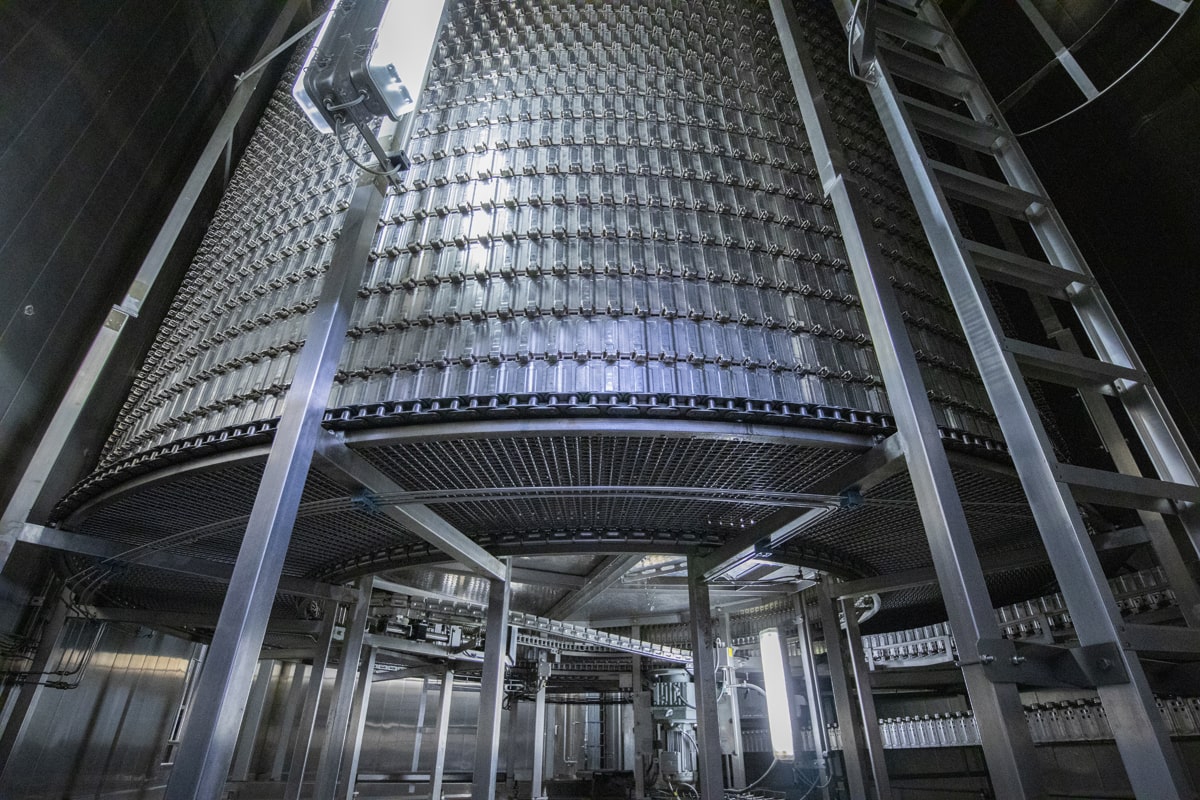

| Tiers | 43 pcs. FRIGoBELT |
| Product gap | 105 mm |

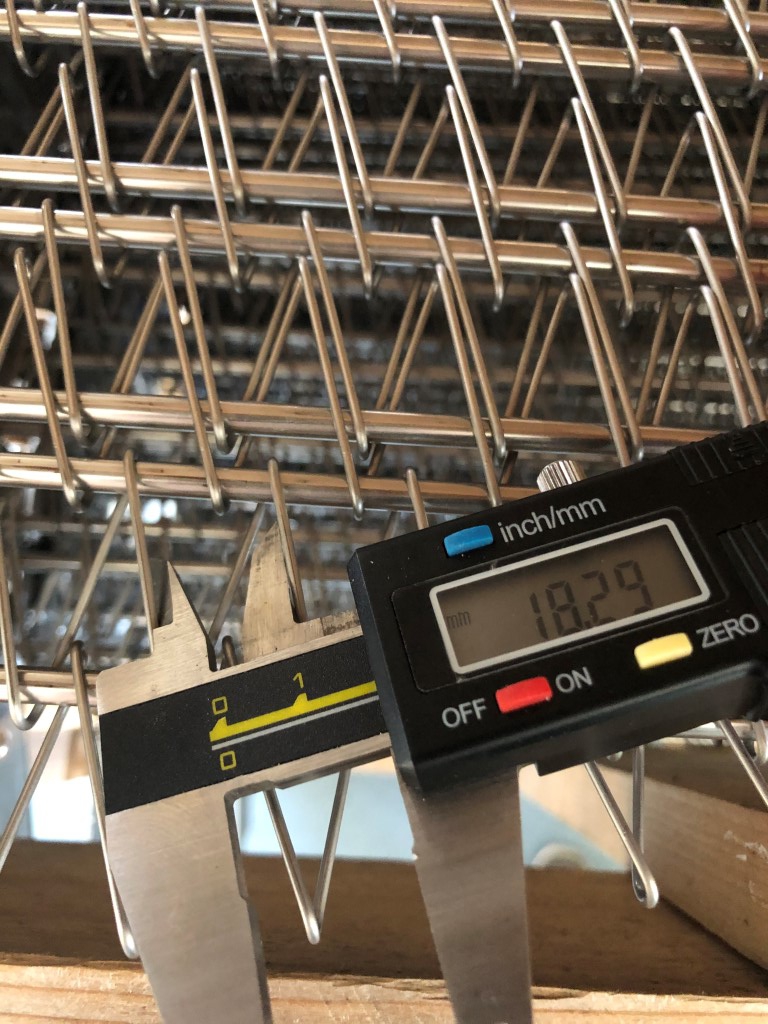

| Link height | 120 mm |
| Length per tier | 13.1 m, 7.7m² effective belt area per Tier (Total 331m²) |

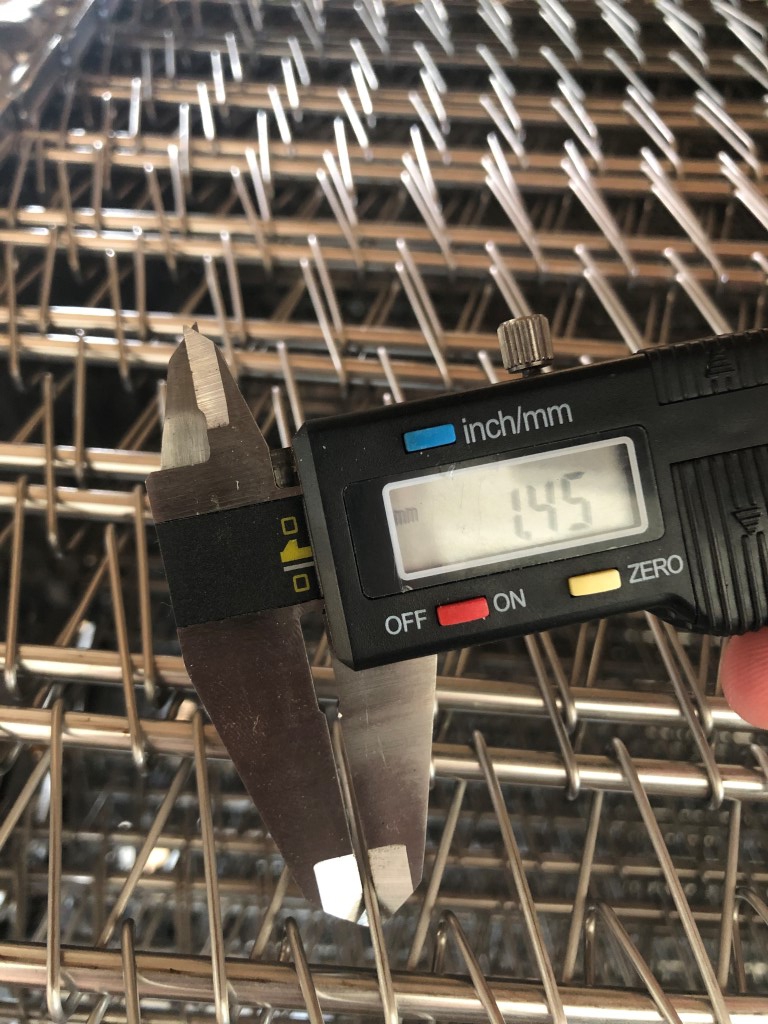

| Belt width | Gross: 760 mm / Nett: 715 mm |
| Belt length | 563 m |
| Refrigerant | R717/NH3/ammonia |
| Cooling power | max. 496 kW |

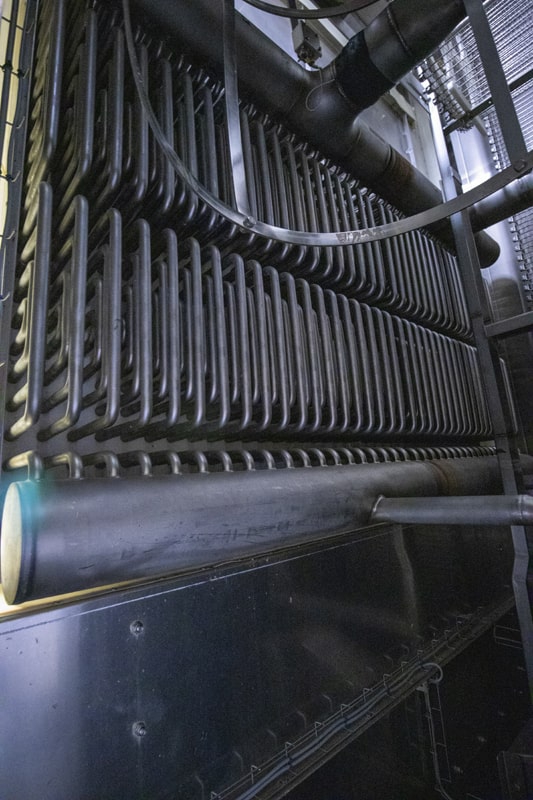

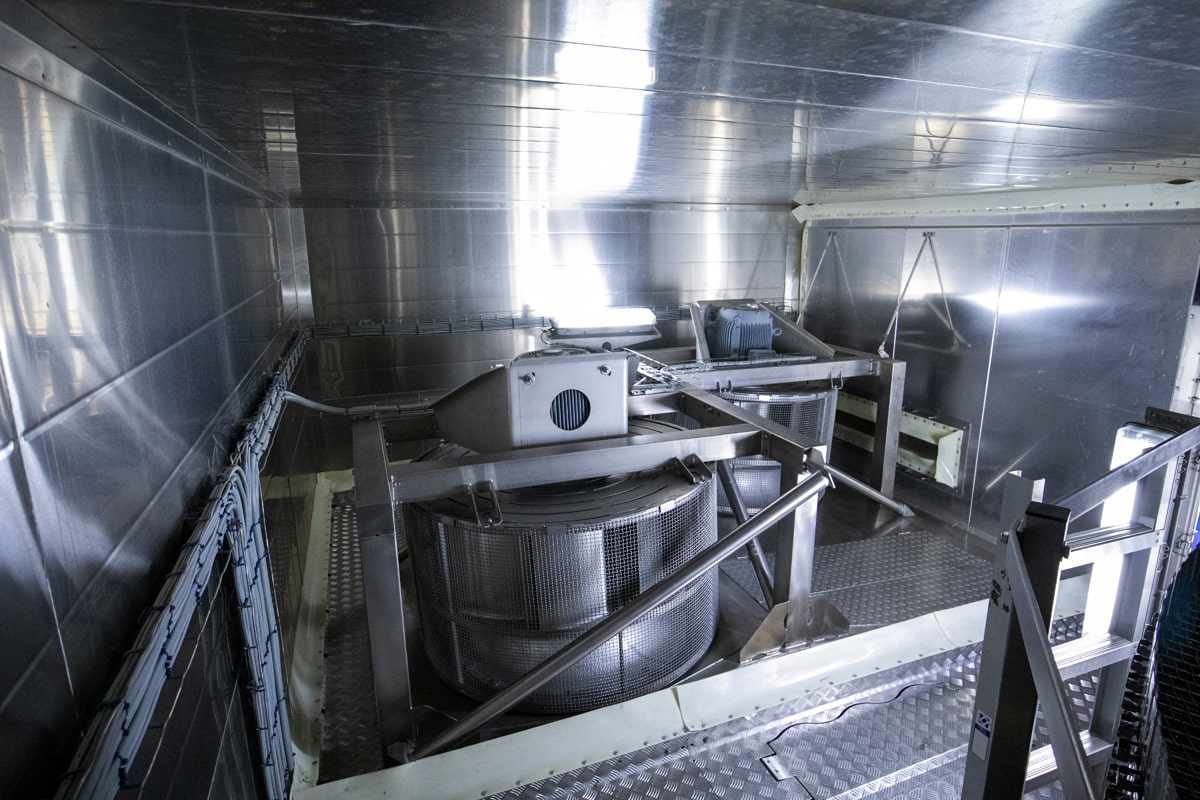

| Evaporator | Stainless steel coil, 3100m² |
